Overview

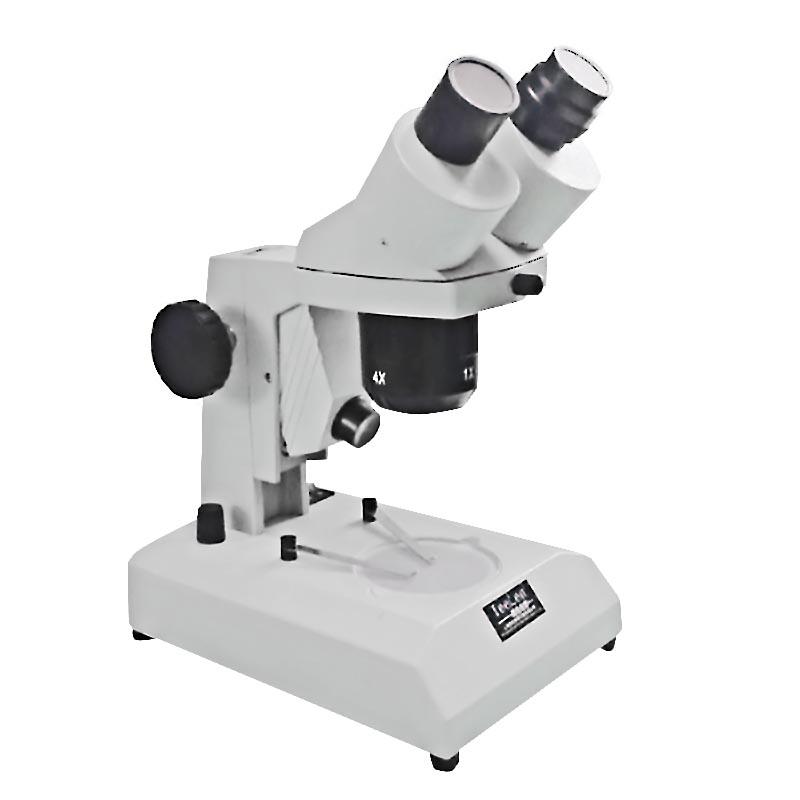

PXS-1020 fixed-gear variable magnification stereo Microscope is a TEELEN brand product, with upright three-dimensional space imagery function, 12 ° angle between left and right visual axes, strong three-dimensional sense, clear and wide imagery. The instrument has a long working distance and can be illuminated by reflected light or transmitted light according to the observation sample. Reliable performance, simple operation, convenient use and beautiful appearance.
Features
1. Upright three-dimensional space image, strong three-dimensional sense
2. Clear and wide imagery
3. Long working distance
4. Optional reflected light or transmitted light illumination
5. Reliable performance, simple operation
Step 6 Look good
Principle
The stereo Microscope produces an upright three-dimensional space image through the binocular Optical inspection system, and the angle between the left and right visual axes is 12 ° to form a three-dimensional visual effect. Reflected light or transmitted light illumination can be selected according to the characteristics of the sample to achieve clear observation of the sample.
Applications
Teaching demonstration, observation and analysis by the public security department, assembly and inspection of precision parts in the electronic industry, inspection of agricultural seeds
Steps
1. Adjust the binocular pupil distance (55-75mm range)
2. Place samples on Glass Bench
3. Select the appropriate magnification (10X~ 20X)
4. Adjust the focal length (65mm focusing range)
5. Select reflected or transmitted light lighting as required
Step 6 Make observations
Notice
• Check the bulb voltage (110V or 220V) before use
• Note that the sample height does not exceed 45mm
• When adjusting the pupil distance, it should be within the range of 55-75mm
• Keep Glass Workbench Clean
• Keep spare light bulbs safe
