Overview

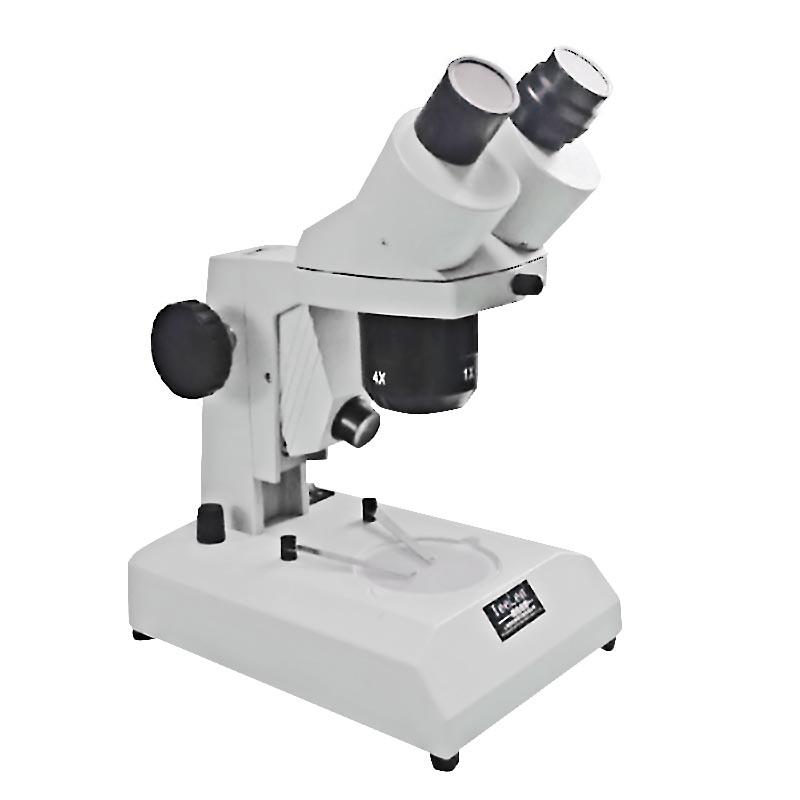

PXS-1030 fixed-gear variable magnification stereo Microscope is a TEELEN brand product, with upright three-dimensional space imagery, 12 ° angle of about the viewing axis, strong three-dimensional sense, clear and wide imagery. The instrument has a long working distance and can be illuminated by reflected light or transmitted light according to the observation sample. Reliable performance, simple operation, convenient use and beautiful appearance.
Features
1. Upright three-dimensional space image, strong three-dimensional sense
2. The angle between the left and right visual axes is 12 °, and the imagery is clear and wide
3. Long working distance
4. Optional reflected light or transmitted light illumination
5. Reliable performance, simple operation, easy to use
Step 6 Look good
Principle
Optical inspection system to form a binocular three-dimensional space image, left and right visual axis angle of 12 ° to produce a three-dimensional visual effect. Reflected light or transmitted light illumination can be selected according to the characteristics of the sample to achieve clear imagery.
Applications
Teaching demonstration, observation and analysis by the public security department, assembly and inspection of precision parts in the electronic industry, inspection of agricultural seeds
Steps
1. Adjust the binocular pupil distance (55-75mm range)
2. Select the appropriate magnification (10X-30X)
3. Select the lighting method (reflected light or transmitted light) according to the sample.
4. Use Glass Bench to Place Samples
5. Perform focusing observation (focusing range 65mm)
Notice
• The eyepiece is a 10X high-point eyepiece with a field of view diameter of φ 18mm
• Working distance is 90mm
• Glass table size φ 75mm
• The height of the sample does not exceed 45mm
• instrument weight 4.2kg
• Packaging Dimensions 380 × 290 × 230mm
• Optional reticle eyepiece with reticle value of 0.1mm
