Overview

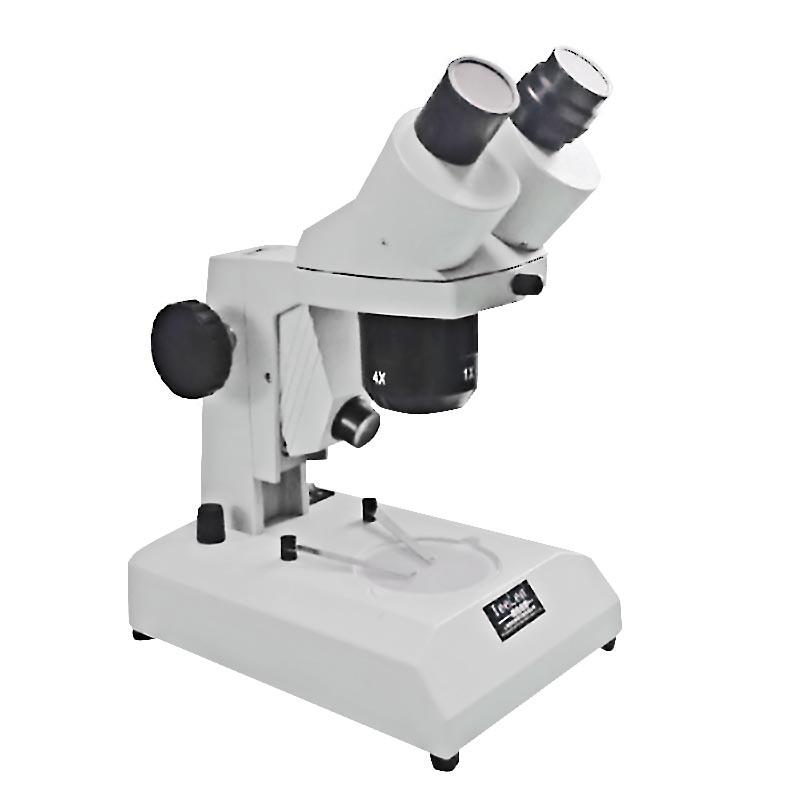

PXS-1040 fixed-gear variable magnification stereo microscope is an opticalin strument of TEELEN brand, with upright three-dimensional space imagery function, the angle between the left and right visual axes is 12 °, the three-dimensional sense is strong and the imagery is clear and wide. The instrument has a long working distance, and can choose reflected light or transmitted light illumination according to the observation sample. Reliable performance, simple operation, convenient use and beautiful appearance.
Features
1. Upright three-dimensional space image, strong three-dimensional sense
2. Clear and wide imagery
3. Long working distance
4. Optional reflected light or transmitted light illumination
5. Reliable performance, simple operation
Step 6 Look good
7. Total magnification 10X~ 40X (when eyepieces are 10X)
8. Equipped with high-point eyepieces, field of view diameter φ 18mm
Principle
The stereo Microscope generates an upright three-dimensional space image through the Optical inspection system, with an angle of 12 ° between the left and right visual axes. The sample is illuminated by reflected light or transmitted light, and the objective lens and eyepiece are combined to achieve magnified observation.
Applications
Teaching demonstration, observation and analysis by the public security department, assembly and inspection of precision parts in the electronic industry, inspection of agricultural seeds
Steps
1. Select reflected or transmitted light illumination according to the observation sample
2. Adjust the binocular pupil distance (range 55-75mm)
3. Perform focusing (range 65mm)
4. Place the sample on the Glass workbench (size φ 75mm)
5. Observe through the eyepiece and adjust the magnification
Notice
• Note that the sample height does not exceed 45mm
• Check whether the lighting bulb is normal before use
• Slow operation is required when adjusting the pupil distance
• Keep Glass Workbench Clean
• Avoid violent vibration of the instrument
