Overview

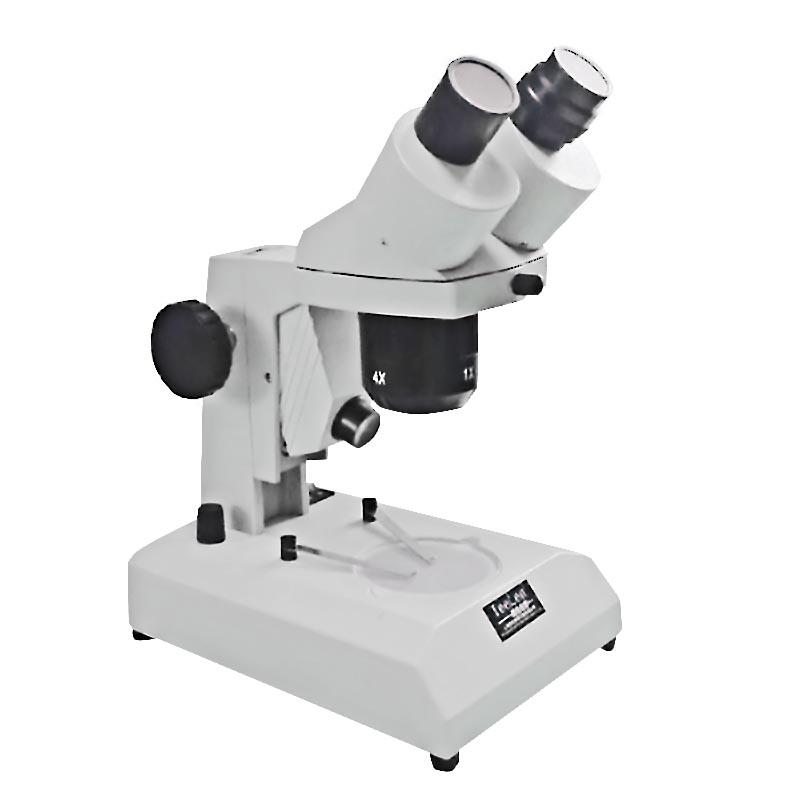

The PXS-2040 Stereo Microscope is a high-performance instrument of the TEELEN brand. It has the characteristics of upright three-dimensional space imagery, 12 ° angle between the viewing axis, strong three-dimensional sense, clear and wide imagery, and long working distance. It supports reflected and transmitted light lighting, with reliable performance, simple operation, convenient use and beautiful appearance.
Features
1. Upright three-dimensional space imagery, strong three-dimensional sense;
2. The angle between the left and right visual axes is 12 °, and the imagery is clear and wide;
3. Long working distance, support reflected light and transmitted light illumination;
4. Reliable performance, simple operation, easy to use;
5. Beautiful appearance, light weight (4.2kg).
Principle
The PXS-2040 Stereo Microscope produces an upright three-dimensional space image through a binocular Optical inspection system with an angle of 12 ° between the left and right visual axes to enhance the three-dimensional sense. It uses a combination of objective and eyepiece to zoom in on objects, supports reflected and transmitted light illumination, and ensures clear and wide imagery.
Applications
Teaching demonstration, observation and analysis by the public security department, assembly and inspection of precision parts in the electronic industry, inspection of agricultural seeds
Steps
1. Place the sample on the Glass table;
2. Adjust the binocular pupil distance (range 55-75mm) to accommodate the observer.
3. Use a focusing device (range 65mm) for clear focus;
4. Select reflected or transmitted light lighting as required.
5. Observe the sample through the eyepiece, and use the eyepiece with a divider for measurement.
Notice
Make sure the sample height does not exceed 45mm.
- Avoid use in humid or vibrating environments;
- Optical inspection components are cleaned regularly to keep the imagery clear;
Handle with care during operation to prevent damage to the instrument.
Check whether the lighting system is working properly before use.
