Overview

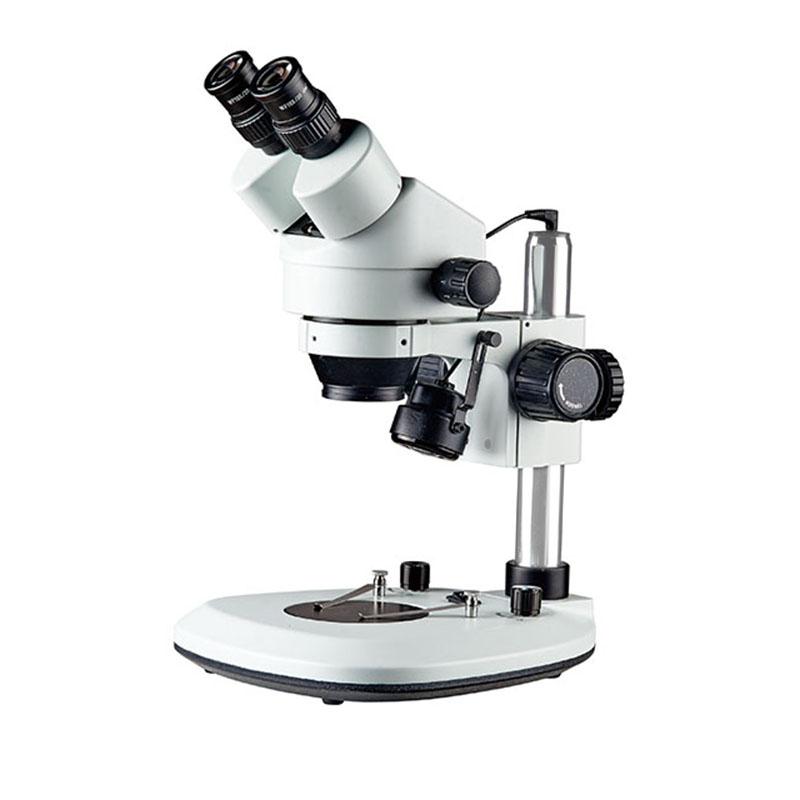

The TEELEN XTL-206B Continuous Diploidy Microscope provides a good Optical inspection system and a durable and reliable operating mechanism, equipped with complete accessories and diverse combination configurations. Meet the requirements of High Accuracy in modern biology, scientific research, modern electronic industry online inspection and other technical and industrial fields.
Features
1. Optical inspection components plated with special layers create high-quality Optical inspection images
2. Forming a flat image plane and a good contrast ratio in a large field of view, the image quality of the peripheral field of view is brighter and clearer
3. Continuous zoom objective 0.7X~ 4.5X (6.3:1), standard magnification 7X~ 45X (optional auxiliary objective can reach 14X~ 180X)
4. The effective standard working distance is 100mm, and the optional auxiliary objective can be extended to 26mm~ 287mm.
5. The observation head is tilted 45 °, and the binocular visibility is adjustable to adapt to different vision users
6, ergonomic structural design, eye point height suitable, long-term use is not easy to fatigue
7, variable hand wheel horizontal bilateral setting, easy to operate and comfortable, variable, high repeability accuracy
8, with a variety of accessories, can expand the application field
Principle
The microscope achieves a magnification range of 0.7X~ 4.5X through a continuous zoom objective system, and a total magnification of 7X~ 45X is formed with a high-point large-field eyepiece. The Optical inspection system uses special film treatment to form a flat image plane and a good contrast ratio in a large field of view to ensure clear and bright image mass.
Applications
Modern biology, scientific research, modern electronic industry online testing, technology industry
Steps
1. Adjust the pupil distance to within the range of 54-76mm
2. Adjust the visibility to within the +/- 5 diopter range
3. Use the focusing handwheel for focusing, with a lifting range of 50mm
4, swirling/spinning handwheel to select the required magnification
5. Turn on the upper and lower LED light sources for observation
Notice
• Please adjust the pupil distance and visibility before use to adapt to personal vision
• The focusing handwheel is elastic and adjustable, please adjust it appropriately according to usage habits
• Pay attention to proper rest when using for a long time to avoid visual fatigue
• Optional auxiliary objective can expand the working distance and magnification range
• Optical inspection parts clean to avoid scratching special film
