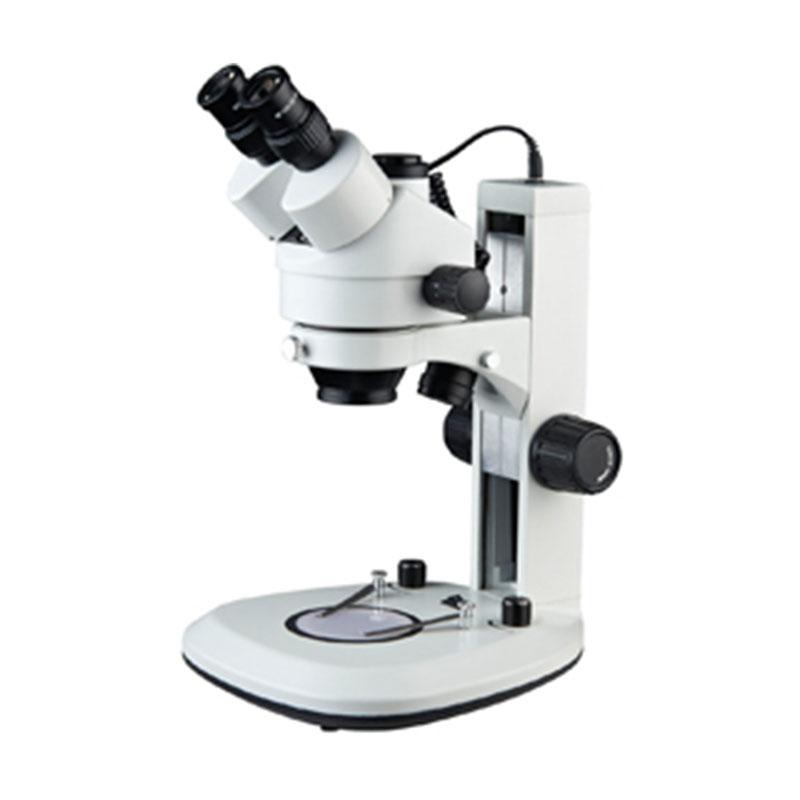

TEELEN XTL-207A Continuous diploidy Microscope Trinocular observation head High eye point Large field of view

Name: TEELEN XTL-207A Continuous diploidy Microscope Trinocular observation head High eye point Large field of view
Brand: Teelen
SKU: NB025528

Please contact customer service

Adopt 0.7X~ 4.5X continuous zoom objective, total magnification 7~ 45X, working distance 100mm, can be extended to 287mm; with high eye point and large field of view eyepiece and bilateral zoom handwheel, the operation is comfortable and high accuracy.

Model

XTL-207A

Get Quote

Category : Microscope

Brand : Teelen

SKU : NB025528

Service :The delivery and service By NBCLab.Com

Overview

The TEELEN XTL-207A Continuous Diploidy Microscope provides a good Optical inspection system and a durable and reliable operating mechanism, equipped with complete accessories and diverse combinations to meet the requirements of High Accuracy in scientific research, modern electronic industry online inspection and Miscellaneous technology industry.

Features

1. Optical inspection components plated with special layers create high-quality Optical inspection images 2. A flat image plane and a good contrast ratio are formed in a large field of view, and the image quality of the peripheral field of view is brighter and clearer 3. Continuous zoom objective 0.7X~ 4.5X (6.3:1), standard magnification 7X~ 45X (optional auxiliary objective can reach 14X~ 180X) 4. The effective standard working distance is 100mm, and the optional auxiliary objective can be extended to 26mm~ 287mm. 5. The observation head is tilted 45 °, and the binocular visibility is adjustable to adapt to different vision users 6. Ergonomic structure design, the best eye point height, long-term use is not easy to fatigue 7. Variable handwheel horizontal bilateral setting, easy to operate and comfortable, variable, high repeability accuracy 8. With a variety of accessories, expand the application field

Principle

Optical inspection images are formed with high-point and large-field eyepieces, and visual observation and photographic recording can be carried out simultaneously by using trinocular observation head design.

Applications

Scientific Research, Modern Electronic Industry Online Testing, High Accuracy Testing in Science and Technology Industry

observation head
Trinocular observation head. 45 ° tilt, 360 ° swirl/spin
eyepiece
High eye point large field eyepiece WF10X/20mm
objective lens
0.7X-4.5X Continuous Zoom Objective
Total magnification
7-45 times
working distance
100mm
pupil distance adjustment Range
54-76Mm visibility can be adjusted; the adjustment Range is +/- 5 diopters
base
J3L Force Arm LED Light Base
bracket
A3 Industrial Binding Focusing Frame (Industrial Special)
light source
Up and down 3W single LED light
Adapter mirror
C-Type interface (can be equipped with photography camera interface)

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
