Overview

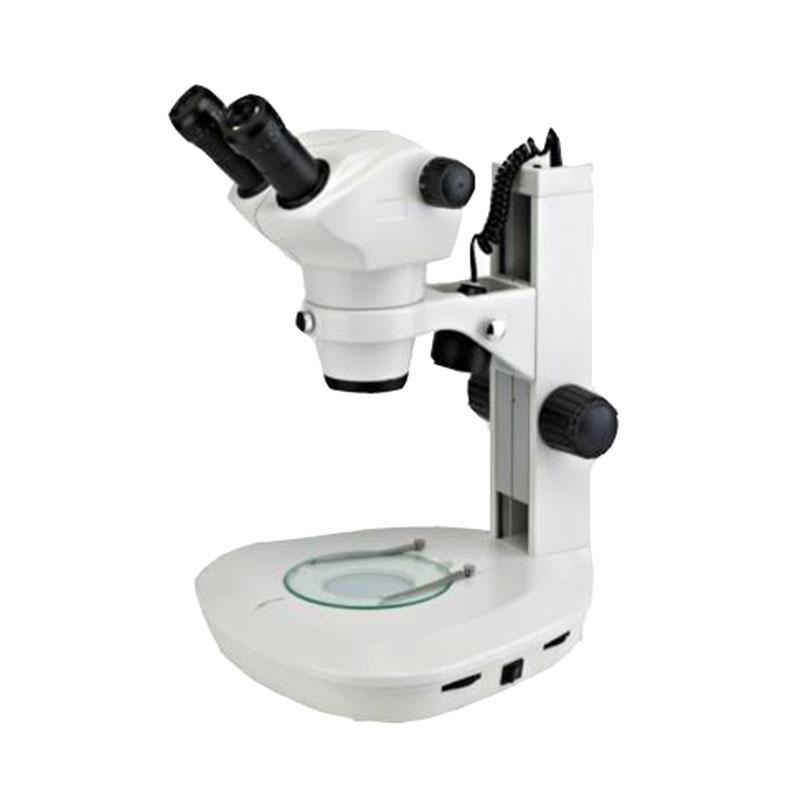

TEELEN SZ6000A Continuous Variable Amplifier Microscope provides a good Optical inspection system and a durable and reliable operating mechanism. Complete accessories and diverse combinations meet the requirements of modern scientific research, modern electronic industry online inspection and Miscellaneous technology industry High Accuracy requirements.
Features
1. Optical inspection components plated with special layers create high-quality Optical inspection images
2. Form a flat image plane and a good contrast ratio in a large field of view, and the image quality of the peripheral field of view is brighter and clearer
3. Continuous zoom objective 0.7X~ 4.5X (zoom ratio 6.3:1), standard magnification 7X~ 45X, optional auxiliary objective can be expanded to 14X~ 180X
4. The effective standard working distance is 100mm, and the optional auxiliary objective can be extended to 26mm~ 287mm.
5. The observation head is tilted 45 °, and the binocular visibility is adjustable to adapt to different vision users
6. Ergonomic structural design, eye point height suitable, long-term use of fatigue
7. Variable handwheel horizontal bilateral setting, easy to operate and comfortable, variable, high repeability accuracy
8. With a variety of accessories, expand the application field
Principle
The Microscope achieves magnification adjustment through a continuous zoom objective system, combined with Optical inspection components to form a clear image. The viewing head tilt design and the use of adjustable eyepieces ensure user comfort.
Applications
Modern scientific research, modern electronic industry online testing, science and technology industry
Steps
1. Adjust the pupil distance to the range of 52-75mm
2. Use the vision adjustable lens to adjust to a clear image
3. Adjust the magnification through the zoom handwheel
4. Select reflected or transmitted light lighting as required
5. Place the sample on the stage for observation
Notice
• Make sure the lighting system voltage matches 100V-240V before use
• Avoid violent vibration to protect Optical inspection components
• Optical inspection surfaces are cleaned regularly to maintain image mass
• Adjust the eyepiece visibility in time according to vision differences
