Overview

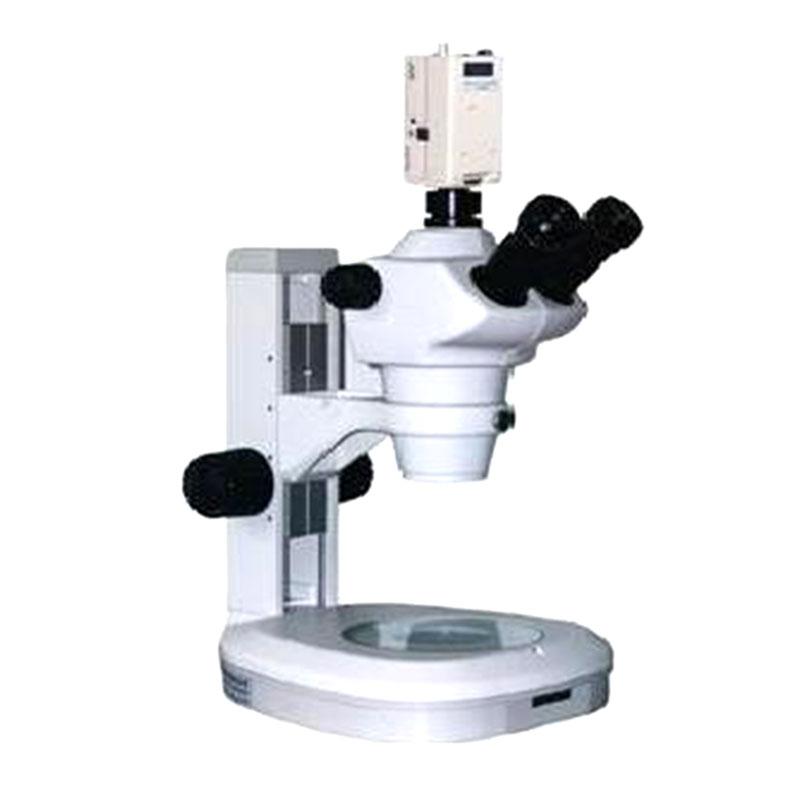

The TEELEN SZ6000B Continuous Variable Amplifier Microscope provides a good Optical inspection system and a durable and reliable operating mechanism, complete accessories and diverse combination configurations to meet the requirements of modern scientific research, modern electronic industry online inspection and Miscellaneous technology industry. High Accuracy requirements.
Features
1. Optical inspection components plated with special layers create high-quality Optical inspection images
2. Form a flat image plane and a good contrast ratio in a large field of view, and the image quality of the peripheral field of view is brighter and clearer
3. Adopt continuous zoom objective 0.8X~ 5X (6.3:1), standard magnification 8X~ 50X (optional auxiliary objective, magnification 16X~ 200X)
4. The effective standard working distance is 115mm, and the optional auxiliary objective can be extended to 43.5mm~ 211mm.
5. The observation head is tilted 45 °, and the binocular visibility is adjustable to adapt to different vision users
6. Ergonomic structural design, eye point height suitable, long-term use is not easy to fatigue
7. Variable handwheel horizontal bilateral setting, easy to operate and comfortable, variable, high repeability accuracy
8. With a variety of accessories, expand the application field
Principle
The microscope achieves a variable zoom range of 0.8X to 5X through a continuous zoom objective system. It uses a trinocular lens body and a 45 ° tilt observation head, combined with reflected and transmitted light illumination systems, to provide clear Optical inspection image observation.
Applications
Modern scientific research, modern electronic industry online testing, science and technology industry
Steps
1. Adjust the pupil distance to the range of 52-75mm
2. Adjust binocular visibility to obtain a clear image
3. Continuous zoom operation through horizontal bilateral zoom handwheel
4. Use the stage to insert the round plate to place the sample
5. Select reflected or transmitted light lighting as required
Notice
• Power frequency matching 100V-240V range before use
• Pay attention to maintaining an appropriate working distance during operation
• Optical inspection components are cleaned regularly to maintain image mass
• Proper rest should be used for a long time to avoid visual fatigue
• Pay attention to the change of working distance when selecting auxiliary objectives
