Overview

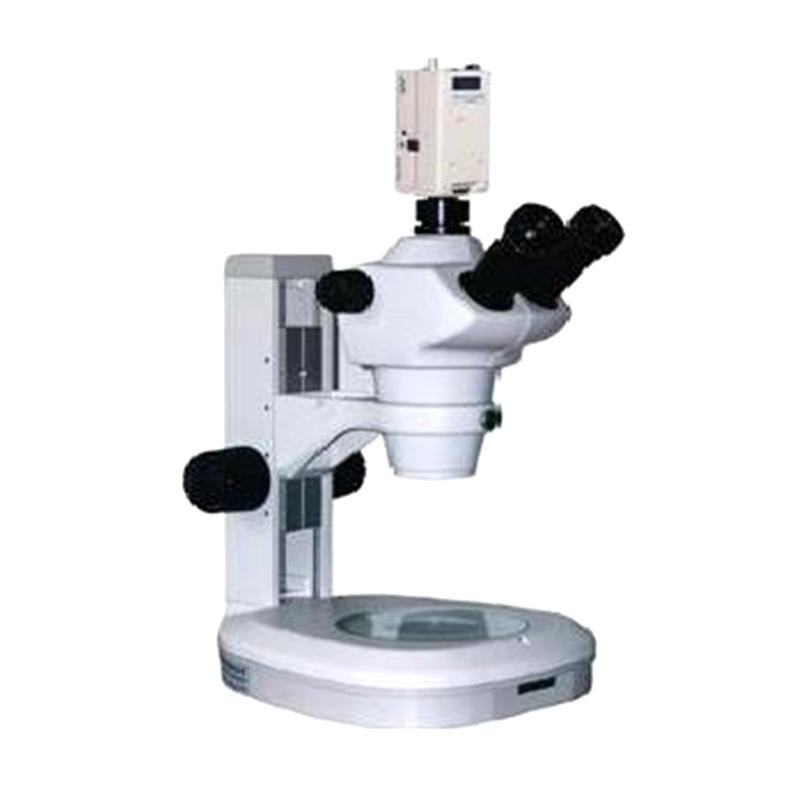

The SZ6000SM Continuous Diploidy Microscope is provided by the TEELEN brand, with a good Optical inspection system and a durable and reliable operating mechanism. Complete accessories and diverse combination configurations meet the High Accuracy requirements of modern scientific research, modern electronic industry online inspection and Miscellaneous technology industry.
Features
1. Optical inspection components plated with special layers create high-quality Optical inspection images
2. Forming a flat image plane and a good contrast ratio in a large field of view, the image quality of the peripheral field of view is brighter and clearer
3. Continuous zoom objective 0.8X~ 5X (6.3:1), standard magnification 8X~ 50X, optional auxiliary objective can be expanded to 16X~ 200X
4. The effective standard working distance is 115mm, and the optional auxiliary objective is extended to 43.5mm~ 211mm, providing enough space for use
5. The observation head is tilted 45 °, and the binocular visibility is adjustable to adapt to different vision users
6. Ergonomic structural design, eye point height suitable, long-term use is not easy to fatigue
7. Variable handwheel horizontal bilateral setting, easy to operate and comfortable, variable, high repeability accuracy
8. With a variety of accessories, expand the application field
Principle
The Microscope achieves a variable zoom range of 0.8X to 5X through a continuous zoom objective system, combined with a large field of view flat field eyepiece and Optical inspection components to form a flat image and a high contrast ratio positive image. Reflected and transmitted light LED lighting systems provide uniform illumination to ensure clear and bright images.
Applications
Modern scientific research, modern electronic industry online testing, science and technology industry
Steps
1. Adjust the pupil distance to the range of 52-75mm
2. Use the zoom handwheel to adjust the magnification
3. Obtain a clear image through the vision-adjustable eyepiece
4. Select reflected or transmitted light lighting as required
5. Use digital attachments for image acquisition
Notice
• Ensure that the lighting system voltage is used within the range of 100V-240V
• Pay attention to the eye point height when operating for a long time to avoid fatigue
• Keep the handwheel smooth during zoom operation to improve repeability accuracy
• Follow the relevant configuration instructions when using attachments
