Overview

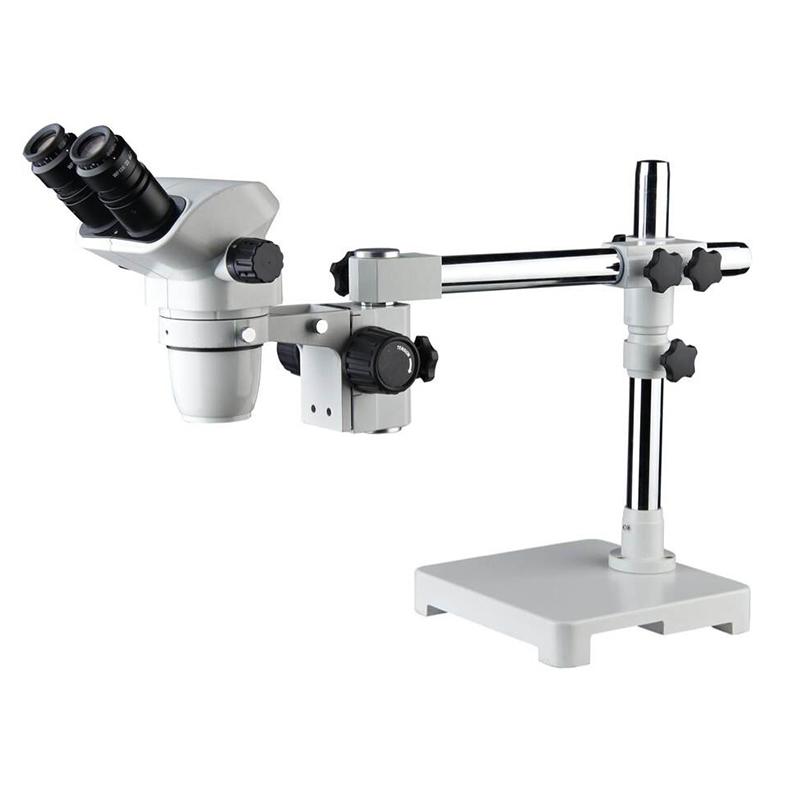

The ST-2400 Continuous Diploidy Microscope is produced by the TEELEN brand, providing a good Optical inspection system and a durable and reliable operating mechanism. The model has a long working distance, a large clear range, complete accessories, easy operation, reliable performance, simple operation, easy use, and beautiful appearance.
Features
1. Variable magnification ratio 1:6.4, total magnification 7X~ 45X; 2. Long working distance, up to 105mm; 3. Large clear range; 4. Complete accessories, easy to operate; 5. Equipped with tabletop and φ 95mm Glass platform and black and white working board; 6. The lighting system is 12v/15w halogen lamp, the luminance is independently adjustable; 7. The pupil distance adjustment range is 55-75mm; 8. Observation head 45 ° design.
Principle
The Binocular Stereo Microscope provides high resolution and wide field of view clarity through an Optical inspection system for continuous zoom observation.
Applications
Teaching demonstration, observation and analysis, electronic industrial parts assembly and inspection, precision machinery industrial parts assembly and inspection, agricultural seed inspection
Steps
1. Adjust the pupil distance to the range of 55-75mm; 2. Select the appropriate magnification (7X~ 45X); 3. Place the sample on the table; 4. Adjust the lighting luminance; 5. Observe through the eyepiece.
Notice
• Make sure the power supply is connected correctly before operation; • Avoid direct exposure to strong light eyepieces; • Regularly clean Optical inspection components; • Pay attention to safety when using a tablet to fix the sample; • Do not use too much force when adjusting the pupil distance.
