Overview

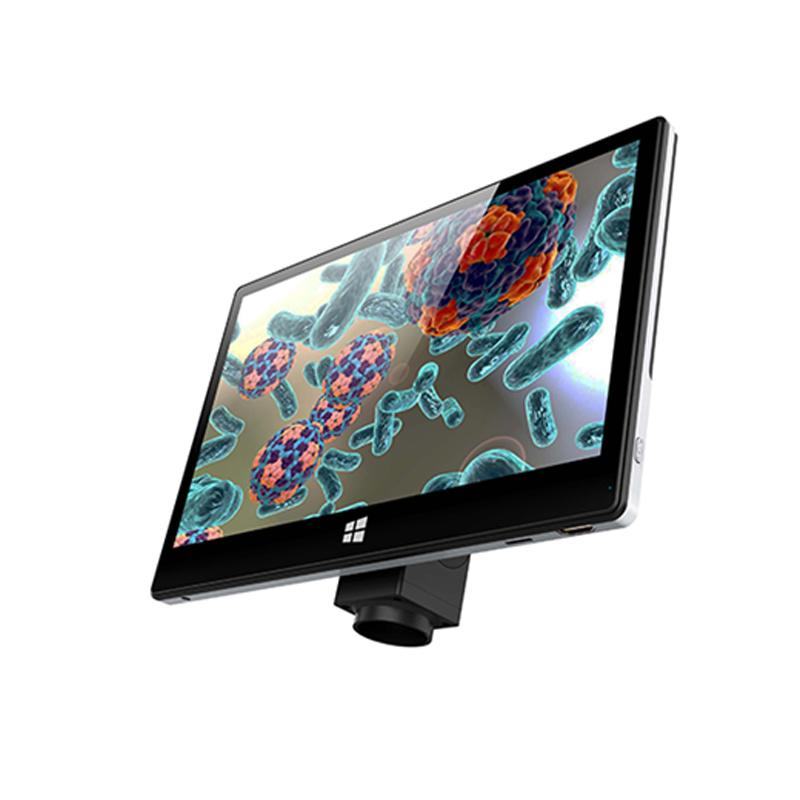

The TEELEN DM1618 Microscope dedicated camera is a high-performance imagery device with a built-in precision measurement system that supports 16 million pixel photography and 1080P 60FPS video recording. The product is equipped with USB2.0, HDMI, TF interface and built-in WIFI, with 11.6-inch display and user-friendly digital interface operation.
Features
1. Built-in measurement system, supports length measurement and geometric measurement of the distance between the centers of two circles, with an accuracy of 1/100 micron
2. One-click video recording, support 1080P 60FPS high definition video recording, video files are stored on 8G SD card and can be played back
3. Intuitive UI interface, start to display functions such as taking pictures, recording, settings, etc., easy to operate and easy to use
Principle
The camera captures images through the MN34120 1/2.3-inch sensor with 16M effective pixels. The output interface includes USB2.0, HDMI and TF card slots, and supports built-in WIFI transmission. The measurement system is based on S-eye technology for accurate calculation of geometric dimensions.
Applications
Microscope imagery, cell measurement, scientific research, industrial testing
Standards
DC-12V power supply standard
Steps
1. Connect the DC-12V power supply to start the device
2. Select the photo, video or setting function through the UI interface
3. Use measurement tools for length or geometry measurements
4. The video file is automatically saved to the SD card and can be viewed through the playback function
Notice
• Make sure to use the matching DC-12V/2A Power Adapter
• Please be familiar with UI interface and measurement function before operation
• Regularly check the SD card storage space
• Avoid use in humid or high temperature environments
