Overview

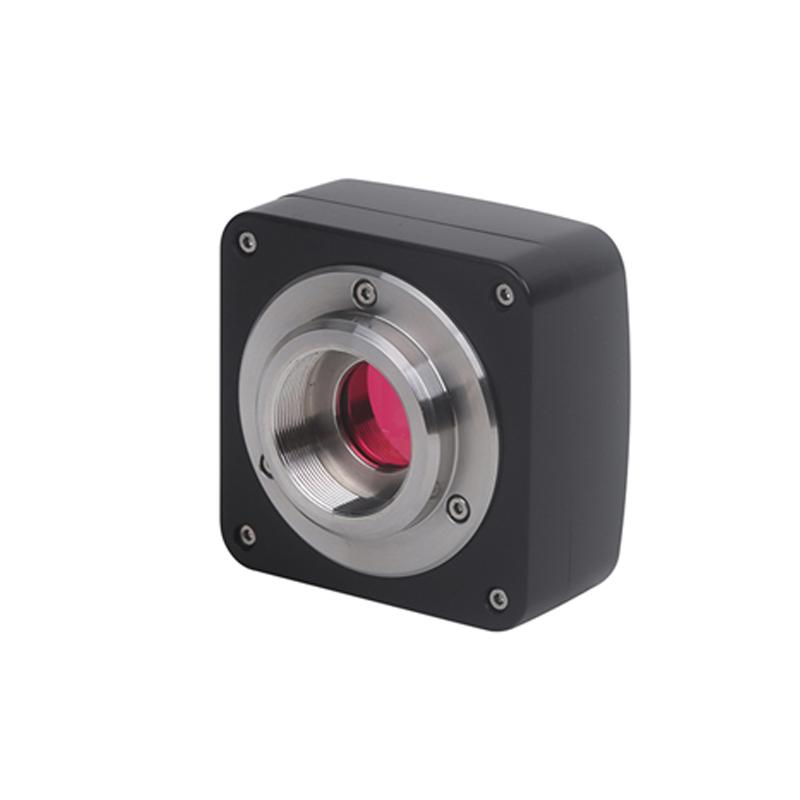

The TEELEN UC1400 is a dedicated CMOS camera for Microscope designed with Aptina MT9F001 CMOS Sensor and C interface. The camera transmits data via a USB 2.0 interface, features 14M high resolution, and features a precision die-cast zinc-aluminum housing to ensure durability under heavy loads.
Features
1. C-interface CMOS camera with Aptina CMOS Sensor
2.The resolution spans 0.35M~ 14M and other
3. Zinc-aluminum alloy precision die-casting shell
4. USB 2.0 interface ensures high transfer rate
5. Ultra-Fine Color Engine ensures accurate Color reproduction
6. Advanced video and image processing application software ToupView is provided with the camera
7. Provide Windows/Linux/OSX multi-platform SDK
8. Support native C/C++, C #, DirectShow, Twain API
Principle
The UCMOS camera uses USB 2.0 as the data transmission interface to capture images through the CMOS Image Sensor. The front end of the camera is equipped with a high-quality IR-CUT, which can effectively filter out infrared light waves in the imagery and protect the camera Sensor at the same time. The camera has no moving parts design to ensure stable and reliable imagery and avoid blurring caused by component shake.
Steps
1. Connect the camera to the computer USB 2.0 interface
2. Install the appropriate drivers and application software
3. Launch ToupView or Miscellaneous compatible software
4. Adjust exposure, white equilibrating and other parameters as needed
5. Perform image or video capture
Notice
• operation temperature range -10 ℃~ 50 ℃
• Storage temperature range -20 ℃~ 60 ℃
• operation humidity range of 30~ 80% RH
• Storage humidity range 10~ 60% RH
• Requires USB 2.0 high-speed port
• Recommended computer configuration: Intel Core2 2.8GHz or higher CPU, 2GB or more memory, 17-inch or larger monitor
• Supports Windows XP/Vista/7 (32 & 64 bit), OS X and Linux (2.6 or above kernel) operating systems
