Overview

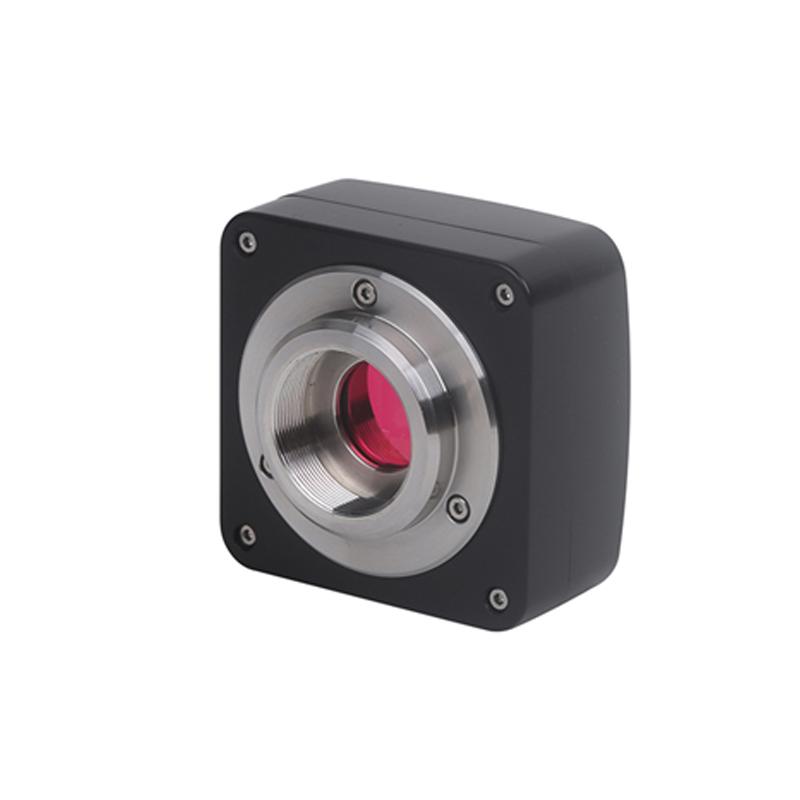

The UC1000 is a microscope dedicated camera launched by TEELEN, which belongs to the UCMOS series of ultra-high performance USB2.0 CMOS cameras. The camera uses USB2.0 as the data transmission interface and is equipped with Aptina MT9J003 CMOS image Sensor with a maximum resolution of 3584x2748 (about 10 million pixels). The camera case is precision die-cast with zinc-aluminum alloy, and a high-quality IR-CUT filter is installed on the front end, which can effectively filter infrared light waves and protect the Sensor.
Features
1. C-interface CMOS camera with Aptina CMOS Sensor
2.The resolution spans 0.35M~ 14M and other
3. Zinc-aluminum alloy precision die-casting shell
4. USB 2.0 interface ensures high transfer rate
5. Ultra-Fine Color Engine ensures accurate Color reproduction
6. Advanced video and image processing application software ToupView is provided with the camera
7. Provide Windows/Linux/OSX multi-platform SDK
8. Support native C/C++, C #, DirectShow, Twain API
Principle
The UC1000 camera is based on CMOS Image Sensor technology and transmits data through the USB 2.0 interface. The camera uses progressive scan mode and is equipped with IR-CUT filters to filter infrared light waves, protect the Sensor and increase the imagery mass. The Ultra-Fine Color engine ensures accurate color reproduction and supports multiple pixel overlay modes and exposure control.
Applications
Microscope imagery, industrial testing, scientific research experiments, medical observation
Standards
DirectShow、Twain
Steps
1. Connect the camera USB port to the computer
2. Install the ToupView software or the corresponding SDK
3. Start the software for image acquisition
4. Adjust exposure, white equilibrating and other parameters as needed
5. Perform still image or dynamic video recording
Notice
Make sure to use a stable USB 2.0 interface connection
• Avoid Strong Impacts and Vibration
Regularly Clean Lens and Sensor Protectors
• Use in a suitable temperature environment
• Install officially provided drivers and software to ensure compatibility
