Overview

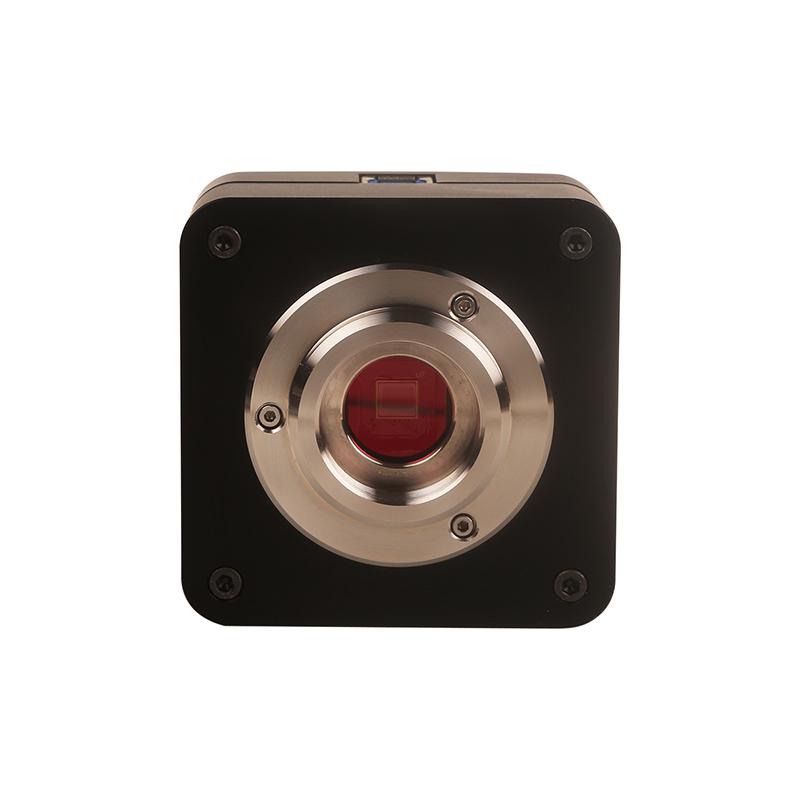

EC630 is a new generation Microscope dedicated camera launched by TEELEN, using SONY IMX178 CMOS Sensor, with a maximum resolution of 3072x2048 (about 6.30 million pixels). The camera provides plug-and-play support and comes with free imagery software, suitable for laboratory teaching, industrial research and other fields.
Features
16,300 High Pixel CMOS Sensor
2. USB 2.0 plug and play, supports multiple cameras to connect at the same time
3. Comes with free imagery software, easy to operate
4. Compatible with third-party software such as TWAIN and DirectShow
5. Fast dynamic image acquisition, support multiple resolution frame rates
6. Support automatic or manual exposure control and white equilibrate adjustment
Principle
The EC630 camera collects Optical inspection images through CMOS Image Sensor, converts optical signals into electrical signals, and transmits them to the computer through USB interface after processing by 14-bit A/D converter. Ultra-Fine Color processing engine is used for color reproduction, and progressive scan mode is supported, which can realize high-speed image acquisition at various resolutions.
Applications
Laboratory teaching, industrial research
Standards
Microsoft Windows XP/Vista/7/8 (32 & 64 bit), OS X (Mac OS X), Linux
Steps
1. Connect the camera to the computer through the USB port
2. Install your own imagery software or use compatible third-party software
3. Open the software for camera settings and image preview
4. Adjust exposure, white equilibrating and other parameters as needed
5. Capture and save images or videos
Notice
• operation temperature range -10~ 50 ℃, storage temperature -20~ 60 ℃
• The operation humidity range is 30~ 80% RH, and the storage humidity is 10~ 60% RH
Intel Core 2 2.8GHz or higher CPU is recommended
• Recommended memory 2GB or more, monitor 17 inches or more
Requires USB 3.0 high-speed interface for best performance
