Overview

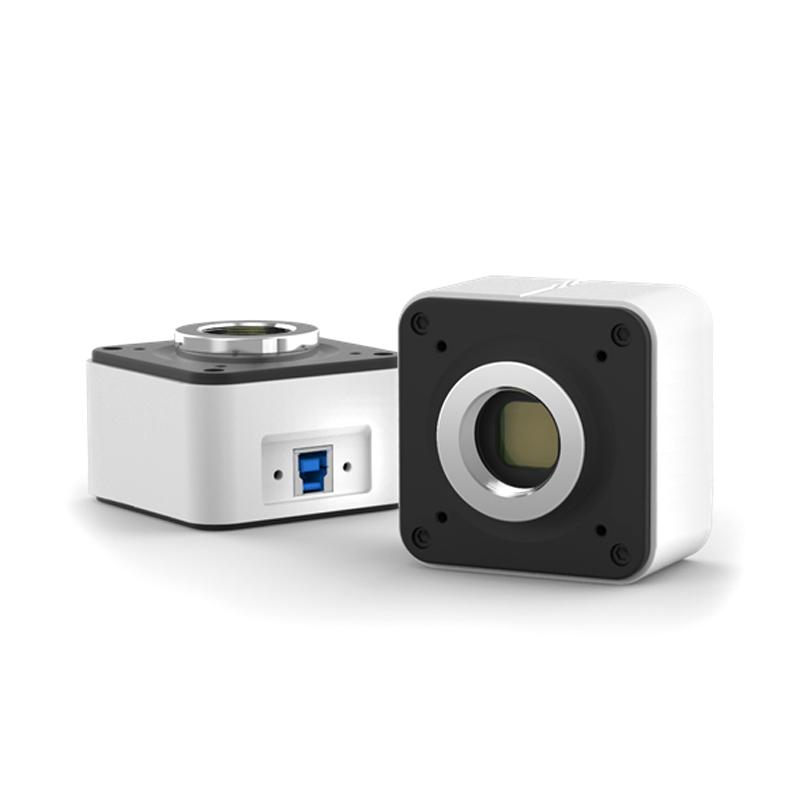

The TEELEN MC500Pro Microscope Dedicated Camera is a high-performance industrial camera equipped with the Sony IMX264LQR-C CMOS Sensor, providing 5 million pixels and 2/3 inch target size. Equipped with Mosaic 2.0 computational imagery software, it supports real-time image stitching and depth of field fusion to optimize the complete workflow from image acquisition to report output, suitable for a variety of imagery scenarios such as Brightfield, fluorescence and polarized light.
Features
1. Real-time image stitching function, generating a large stitching image within seconds of moving the stage
2. Real-time depth of field fusion function, rotate the focus ring to quickly generate clear and large depth of field images
3. Complete image acquisition - editing - measurement - reporting output workflow to improve operation efficiency
4. Inherit the core color reproduction technology of Dilun ISP to accurately restore true colors
5. Adopt Sony 5 million pixel CMOS Sensor, maximum resolution 2448x2048
6. Professional global shutter technology to capture dynamic samples without distortion
7. USB 3.0 high-speed transmission, 35 frames/second imagery at full resolution
Principle
The MC500Pro camera captures images through the Sony CMOS Sensor, and uses the global shutter technology implementation to expose all pixels at the same time to ensure that the dynamic sample is clear and free of deformation. With Mosaic 2.0 software, the image is processed in real time when moving the stage or rotating the focus ring to achieve fast stitching and depth of field fusion. The USB 3.0 interface provides stable high-speed data transmission and supports the complete image processing process.
Applications
Brightfield imagery, fluorescence imagery, polarized imagery
Standards
Supports Windows, Linux/Mac under development
Steps
1. Connect camera to PC via USB 3.0 port
2. Install and run the Capture V 2.0 software
3. Mobile stage for real-time image stitching
4. Rotate the focus ring for real-time depth of field fusion
5. Use software for image editing, measurement and report output
Notice
- Ensure that the PC meets the minimum configuration requirements: Intel i5 4-core and above CPU, 8G and above RAM, 64-bit Win7/8/10 operating system
- Supports up to 4 cameras running simultaneously on the SDK
The exposure time range is 0.13ms-15s, which needs to be adjusted according to the sample
- Camera size 68x68x46mm, weight 330g, pay attention to the installation space
- Support automatic and manual setting of exposure, gain and other parameters, it is recommended to optimize according to imagery conditions
