Overview

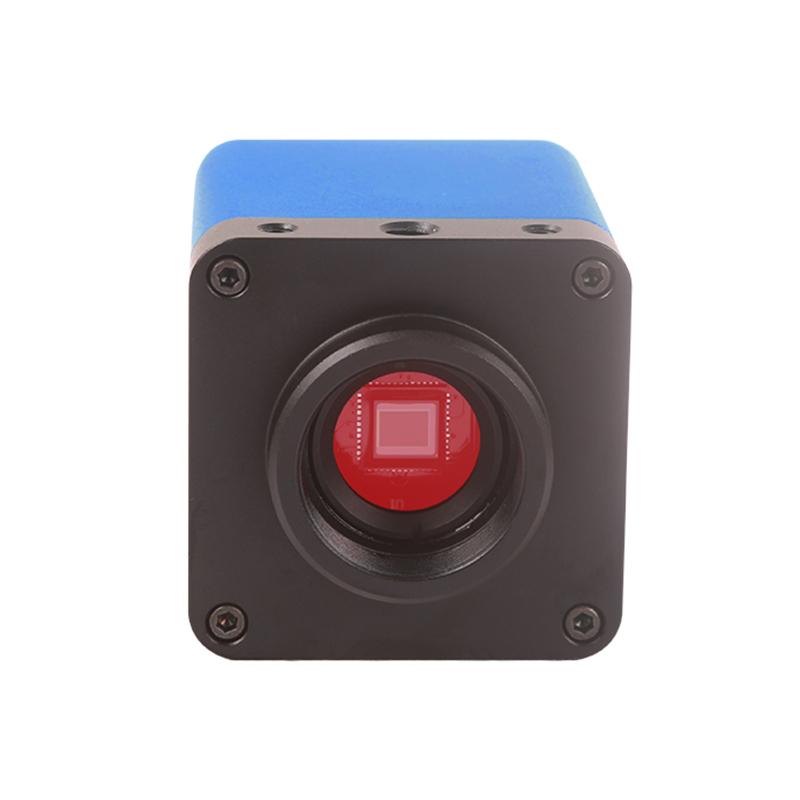

WPC185D-HDMI is a Microscope special camera launched by TEELEN, which belongs to the WPC series multi-interface CMOS camera. The camera adopts Sony high-performance CMOS Sensor and supports three output methods: HDMI, WIFI and SD card. It can directly connect to an HDMI monitor, connect computers and mobile devices through WIFI, and save images and videos to an SD card.
Features
1. C-interface camera with Sony High Sensitivity CMOS Sensor
2. HDMI and WIFI can output simultaneously
3. Embedded ARM core, support USB mouse to directly control the camera function
4. The HDMI interface provides a variety of toolbar buttons
5. Support 1920 * 1080 (1080P) high definition resolution output
6. Can achieve 2.0M pixel (1920 * 1080) image capture and 1080P video storage
7. Support hot plugging and unplugging
8. Ultra-Fine Color Engine ensures accurate Color reproduction
9. Provide ToupView/ToupLite advanced image processing software
10. Support Windows/Linux/OSX multi-platform SDK
11. One-time molding design of CNC shell
Principle
The camera collects image signals through the CMOS Sensor, and the embedded ARM processor processes the signals. When used as an HDMI camera, it is displayed on the HDMI display through the XCamView software interface, and the user can directly operate the control panel and toolbar with the USB mouse. When used as a WIFI camera, after inserting the USB WIFI module, the remote control and data transmission of the camera are realized through ToupView or ToupLite software.
Applications
Tool on-site inspection, Microscope observation
Steps
1. Connect an HDMI monitor or plug in a USB WiFi module
2. Turn on the power switch
3. As an HDMI camera: Use the USB mouse to operate the XCamView interface
4. As a WIFI camera: connect to the WIFI network and run ToupView/ToupLite software
5. Adjust exposure, gain, equilibrate and other parameters through the control panel
6. Use the toolbar to zoom, mirror, compare, etc
7. Images and videos can be saved to SD card
Notice
• Make sure to use a 12V power supply
• HDMI and WIFI modules support hot plugging and unplugging
• WIFI connection distance and environment affect connection stability
• Image capture format is JPEG, video format is ASF
• Support Windows XP/Vista/7/8/8/10, OSX, Linux operating systems
