Overview

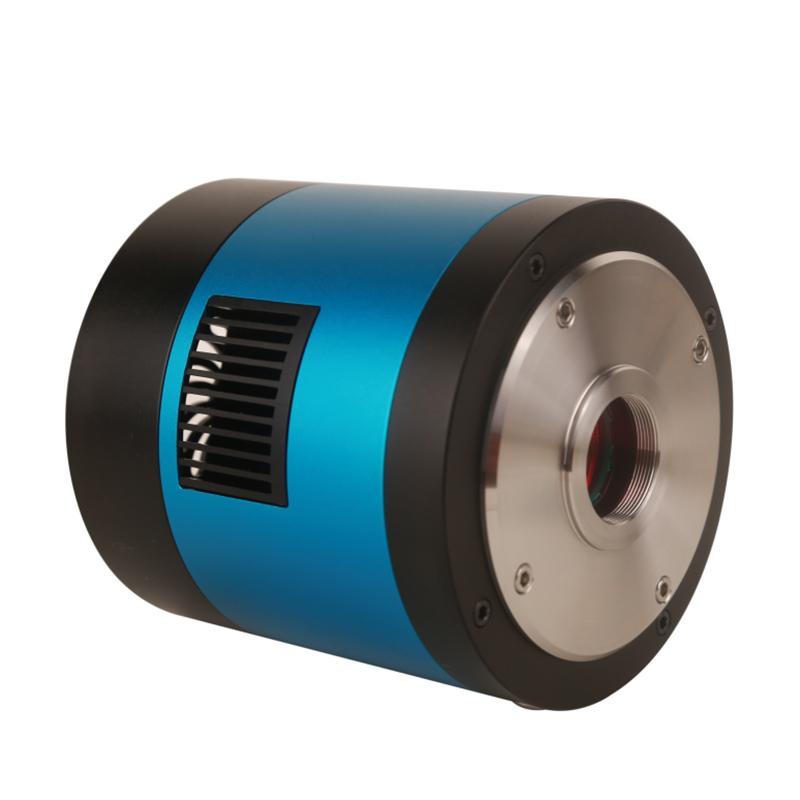

The TEELEN H-694C Microscope dedicated camera features a 1-inch full frame size design and 6.10 million effective pixel Sony ICX694 Exview HAD CCD image sensor, providing professional imagery performance with extremely low noise points, high dynamic range, and faithful color reproduction, fully meeting the professional requirements of Microscope observers.
Features
1.1 inch full frame size design, challenging the maximum field of view
26,100 effective pixels, providing high resolution imagery
3. Very low noise point performance, suitable for fluorescent imagery
4. Fluorescence mode supports 6 high-speed image capture per second
5. Eyes-pleasing Saturation and Faithful Color Reproduction
6. Semiconductor refrigeration system to ensure stable operation
7. Support multiple operating systems (Windows/Linux/Mac)
8. Wide exposure range (1 millisecond to 160 minutes)
9. High dynamic range (69.8dB)
Principle
The H-694C uses the Sony ICX694AQ CCD image sensor to capture images in electronic shutter and progressive scan modes. 12-bit analog-to-digital conversion ensures high-mass signal processing, automatic/manual exposure and white equilibrate control optimize imagery mass, and a semiconductor refrigeration system maintains the Sensor's stable operating temperature.
Applications
Microscope observation, fluorescence imagery, scientific research experiments, medical testing, industrial testing
Standards
USB 2.0, C interface standard
Steps
1. Connect the camera to the Microscope through the C interface.
2. Use the USB 2.0 interface to connect to the computer
3. Install the corresponding operating system driver software
4. Start imagery software
5. Select the automatic or manual exposure mode
6. Adjust white equilibrate settings as needed
7. Start image acquisition and preview
Notice
• The operation temperature range is 0-60 ℃, please do not use beyond this range
• operating humidity should be maintained between 45% -85%
• storage temperature range is -20-70 ℃
Make sure to use a compatible operating system (Windows/Linux/Mac)
• Please confirm that the USB port is stable when connecting
Avoid working long hours in extreme environments
