QIWEI TND-4G coated -4 Viscometer chrome plated Cup body 4mm flow hole

Name: QIWEI TND-4G coated -4 Viscometer chrome plated Cup body 4mm flow hole
Brand: QiWei
SKU: NB025826
Price: 114.0 USD
Availability: InStock

$ 114.00Ex works

Using 4mm flow hole and chrome-plated Cup structure, the outflow time range is 0-150 seconds, and the correction factor K = 1 +/- 0.03 ensures accurate and reliable viscosity measurement.

Model

TND-4G

Get Quote

Category : Viscosity Cup

Brand : QiWei

SKU : NB025826

Service :The delivery and service By NBCLab.Com

Overview

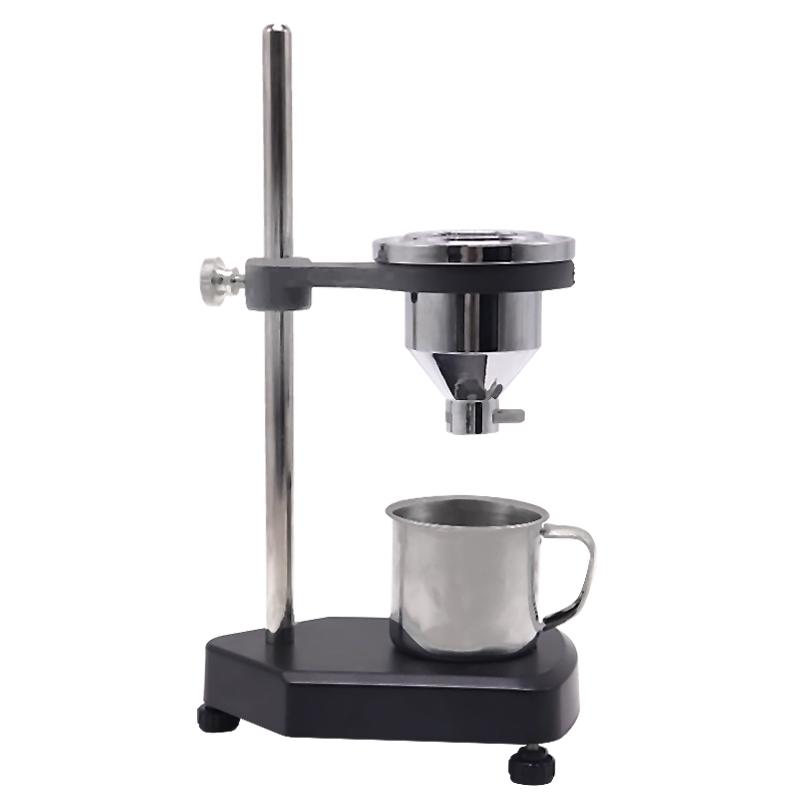

The Tu-4 Viscometer (model: TND-4G) is an instrument produced by the QIWEI brand for the measurement of viscosity in liquid conditions such as coatings. It indicates viscosity by measuring the time (seconds) required for a certain amount of sample to flow out of a specified aperture at a specific temperature, which meets the requirements of national standards.

Features

1. Brass cup body with a capacity of about 100ml and a stainless steel outflow hole at the bottom to ensure durability and accuracy 2.Geometric dimensions and inner wall asperity strictly comply with GB/T 1723 standard 3. Equipped with correction factor K (range 1 +/- 0.03) to ensure the accuracy of measurement results 4. Outflow time measurement range 0~ 150 seconds, to meet a variety of viscosity measurement needs

Principle

The coating -4 Viscometer measurement is the conditional viscosity, that is, the time for a certain amount of specimen to flow out of an outflow hole of a specified diameter (4mm) at a fixed temperature, expressed in seconds. The outflow time t (s) obtained by measurement can be converted into kinematic viscosity μ (mm ²/s) by the formula: when t < 23s, t = 0.154 μ + 11; when 23s ≤ t ≤ 150s, t = 0.223 μ + 6.0.

Standards

GB/T 1723

Notice

The correction factor K should be within the range of 1 +/- 0.03, otherwise the Viscometer needs to be replaced. • Viscometers should be regularly calibrated according to the frequency of use • The difference between the measured value of the standard viscosity liquid outflow time and the calculated value should be within +/- 3% of the calculated value

outflow time
0~150s
flow hole diameter
4mm
capacity
100ml
Cup body material
chrome plating
applicable standard
GB/T 1723
correction factor
K=1±0.03

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
