Overview

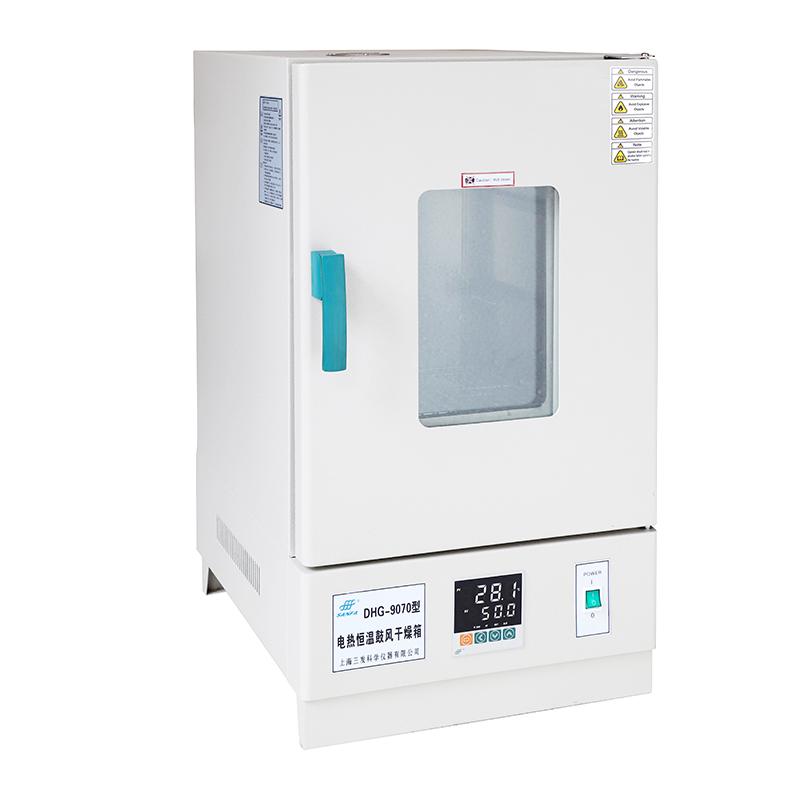

SANFA DHG-9030 electric thermostatic blast drying oven is a drying equipment suitable for industrial and mining enterprises, laboratories, R & D institutions and other places, with drying, baking wax, sterilizing and other functions. The box is made of good steel plate welding, the surface is electrostatic spraying, the studio is sprayed with high temperature resistant silver paint, equipped with microcomputer intelligent digital display temperature control instrument and hot air circulation system.
Features
1. The inside and outside of the box are welded with good steel plates, the surface is electrostatic sprayed, and the working room is sprayed with high temperature resistant silver paint. The door has an observation window or a double door structure, which is novel, beautiful and energy-saving.
2. Microcomputer intelligent digital display temperature controller, accurate and reliable temperature control, while displaying the set temperature and the temperature inside the box, with overheating, leakage, Sensor fault alarm function, timing function (optional intelligent LCD temperature controller).
3. Adopt low noise fan and suitable air duct to form hot air circulation system, dry hot air directly through the heated object drying, sterilizing.
4. In addition to the above functions, the upgraded liquid crystal display temperature controller also has programmable temperature control, can be equipped with RS-485 interface, can be connected to the recorder and computer, and can record the change of temperature parameters (optional).
Principle
The temperature is precisely controlled by the microcomputer intelligent temperature control instrument, and the low-noise fan and suitable air duct are used to form a hot air circulation system, so that the dry hot air is in the domestic circulation of the box, and directly passes through the heated object to realize drying, baking, melting wax or sterilizing.
Applications
Industrial and mining enterprises, laboratories, R & D institutions
Steps
Connect the power supply and ensure that the voltage is 220V 50Hz.
2. Open the box door and place the items to be processed on the shelf.
3. Close the door and set the required temperature (Temperature range RT + 10~ 250 ℃) and timing time (1~ 9999min) through the thermostat.
4. Start the equipment, the hot air circulation system starts to work, monitor the temperature display and alarm function.
5. After the timing is over or stop manually, remove the item and disconnect the power supply.
Notice
• Power frequency check before use to meet 220V 50Hz requirements.
• Avoid over-temperature use and pay attention to the over-temperature and overheating alarm function of the temperature controller.
• Regularly check Sensors and electrical components to prevent leakage failures.
• Ensure uniform distribution when placing items to maintain Temperature Uniformity.
• Avoid using corrosive cleaners when cleaning and keep the box drying.
