Overview

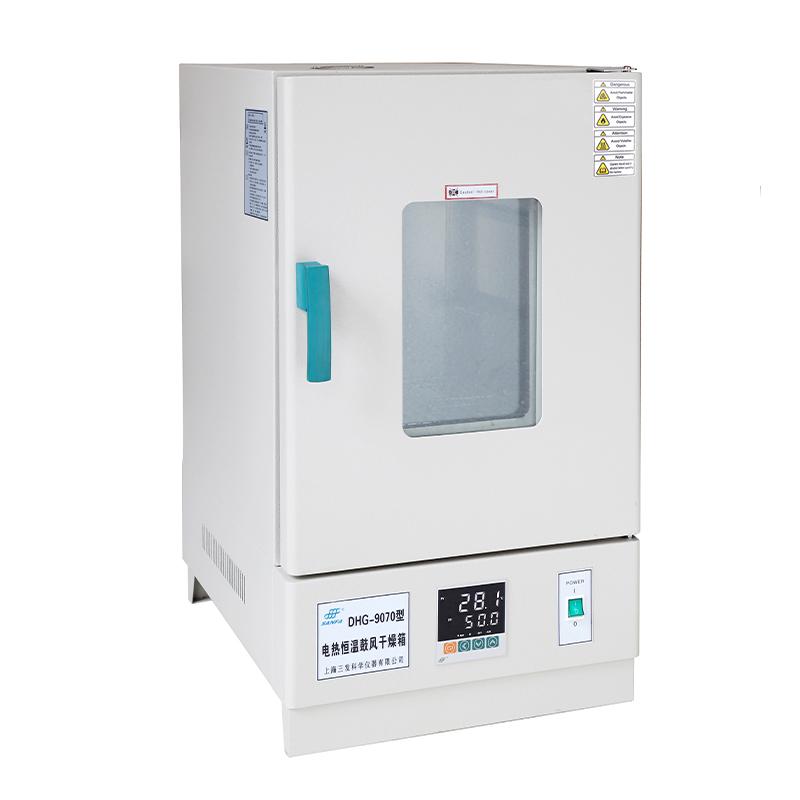

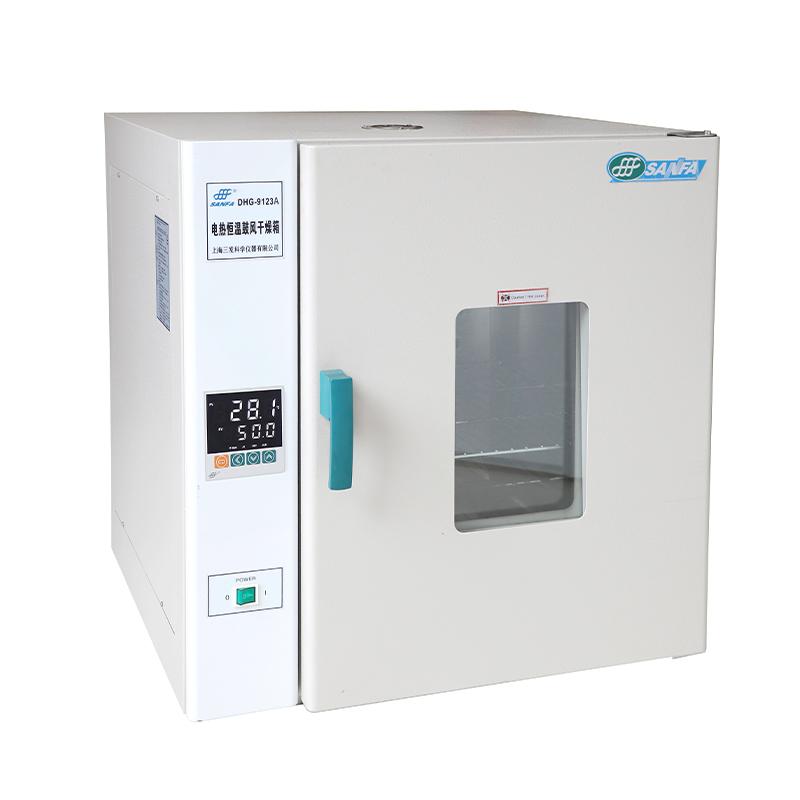

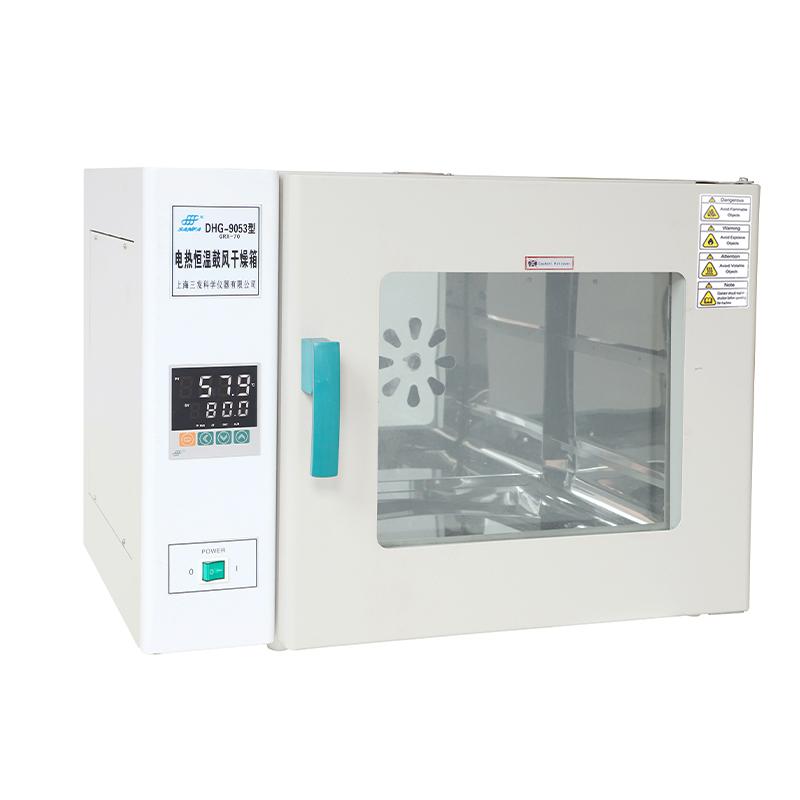

SANFA DHG-9030A electric thermostatic blast drying oven is suitable for drying, baking wax melting and sterilizing in industrial and mining enterprises, laboratories, R & D institutions, etc. The box body is welded with good steel plate, the surface is electrostatic sprayed, the working room is mirror stainless steel, the door has an observation window or a double door structure, and the shape is novel, beautiful and energy-saving.
Features
1. The inside and outside of the box are welded with good steel plates, the surface is electrostatic sprayed, the working room is mirror stainless steel or high temperature resistant silver paint, the door has an observation window or a double door structure, and the shape is novel, beautiful and energy-saving.
2. Microcomputer intelligent digital display temperature control instrument, accurate and reliable temperature control, while displaying the set temperature and the temperature in the box, with overheating, leakage, Sensor fault alarm function, timing function. (Optional intelligent LCD temperature control instrument).
3. Adopt low noise fan and suitable air duct to form hot air circulation system, dry hot air directly through the heated object drying, sterilizing.
4. In addition to the above functions, the upgraded liquid crystal display temperature controller also has programmable temperature control, can be equipped with RS-485 interface, can be connected to the recorder and computer, and can record the change of temperature parameters (optional).
Principle
The hot air circulation system is composed of low noise fan and suitable air duct, and the dry hot air is directly dried and sterilized through the heated object. Microcomputer intelligent digital display temperature control instrument ensures accurate and reliable temperature control.
Applications
Industrial and mining enterprises, laboratories, R & D institutions
Steps
Connect the power supply and ensure that the voltage is 220V 50Hz.
2. Set the required temperature, Temperature range is RT + 10~ 250 ℃, temperature resolution is 0.1 ℃.
3. Optional setting timing function, Timer Range is 1~ 9999min.
4. Start the equipment, the hot air circulation system starts to work, and the dry hot air dries or sterilizes the object.
5. Monitor the Temperature Display to Ensure that Temperature Fluctuation is within +/- 1 ° C and Temperature Uniformity is +/- 2 ° C.
6. After use, turn off the power.
Notice
Power frequency is 220V 50Hz to avoid voltage mismatch.
Check whether the equipment is in good condition before use to avoid leakage or Sensor failure.
When setting the temperature, pay attention to the Temperature range to prevent overheating.
The timing function setting should be within the range of 1~ 9999min.
Pay attention to safety during operation and avoid touching high-temperature components.
