Overview

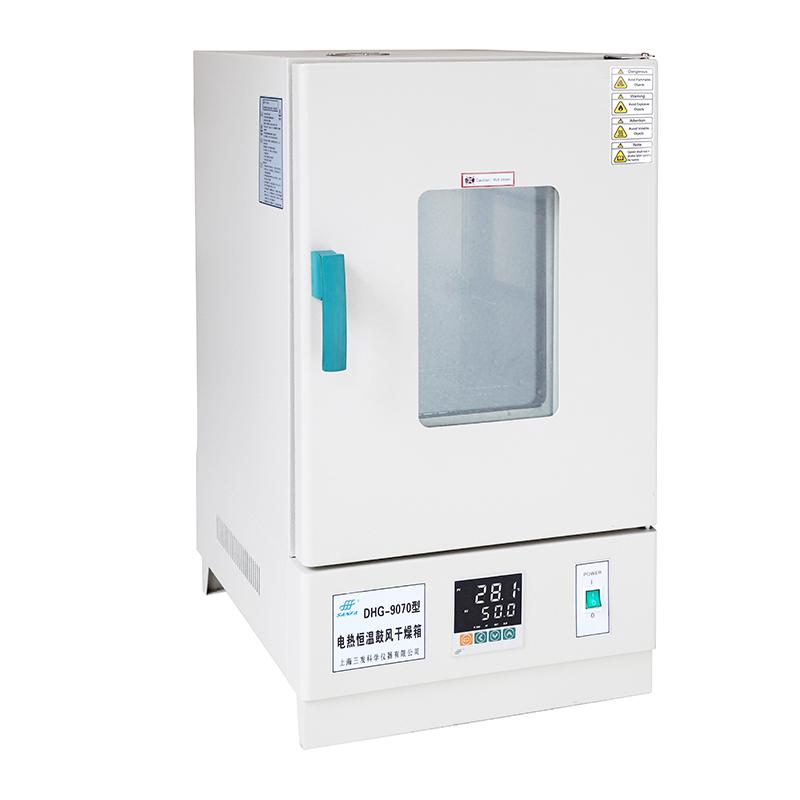

SANFA DHG-9070 electric thermostatic blast drying oven is a drying equipment suitable for industrial and mining enterprises, laboratories, R & D institutions and other places, with drying, baking wax melting, sterilizing and other functions. The equipment adopts a good steel plate welded box, the surface is electrostatic spraying, the studio is made of high temperature resistant silver paint, equipped with a microcomputer intelligent digital display temperature control instrument and hot air circulation system.
Features
1. The inside and outside of the box are welded with good steel plates, the surface is electrostatic sprayed, and the working room is sprayed with high temperature resistant silver paint, which is novel, beautiful and energy-saving
2. Microcomputer intelligent digital display temperature control instrument, accurate and reliable temperature control, while displaying the set temperature and the temperature in the box, with overheating, leakage, Sensor fault alarm function and timing function
3. Use low noise fan and suitable air duct to form hot air circulation system, dry hot air directly through the heated object drying, sterilizing
4. Optional upgraded liquid crystal display temperature controller, with programmable temperature control function, optional RS-485 interface to connect the recorder and computer to record temperature parameter changes
Principle
The heating system is precisely controlled by the microcomputer intelligent temperature controller, and the hot air circulation system composed of low-noise fans and suitable air ducts makes the dry and hot air circulate inside the studio, and directly passes through the heated object to achieve uniform drying, baking, melting wax and sterilizing effect.
Applications
Industrial and mining enterprises, laboratories, R & D institutions
Steps
1. Connect the 220V 50Hz power supply
2. Set the required temperature through the microcomputer intelligent digital display thermometer
3. Set the Timer Range as needed 1-9999 minutes
4. Start the device and start working
5. The internal condition can be monitored through the observation window during the operation of the equipment
6. The device automatically stops working after reaching the set time or temperature
Notice
※ Please ensure the power supply voltage is 220V 50Hz before use.
※ Do not open the door arbitrarily while the equipment is in operation.
※ Regularly check the equipment grounding and electrical safety.
※ Do not exceed the equipment's rated power of 1000W.
※ Note that the operating temperature range of the equipment is RT+10-250°C.
※ Immediately stop using the equipment if an abnormal alarm occurs during operation.
※ Keep the area around the equipment well-ventilated.
