Overview

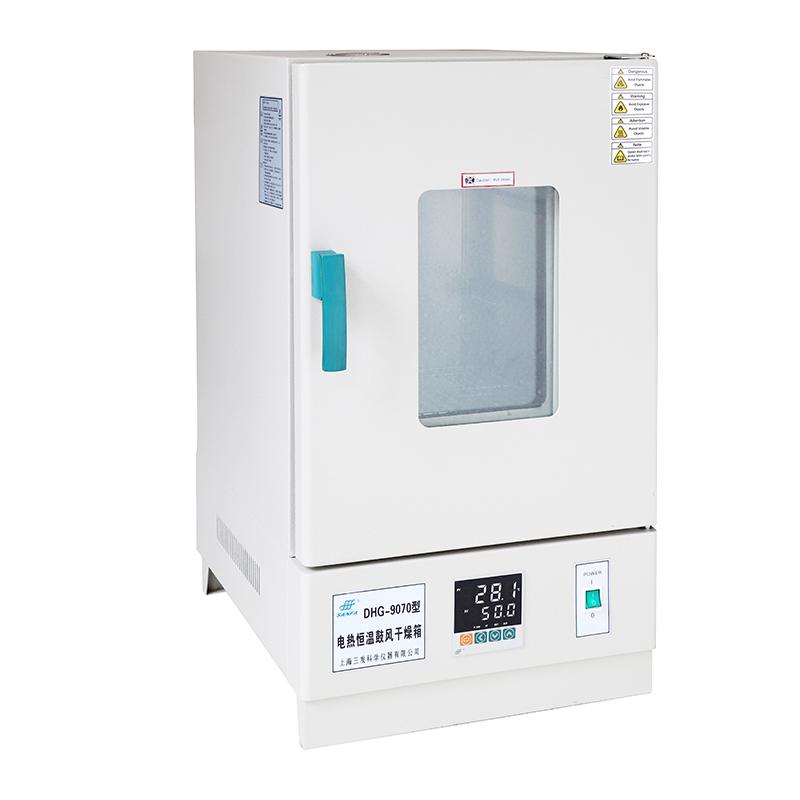

SANFA DHG-9070A electric thermostatic blast drying oven is a drying equipment suitable for industrial and mining enterprises, laboratories, R & D institutions and other places, with drying, baking wax melting, sterilizing and other functions. The box is welded with good steel plate, the surface is electrostatic spraying, the studio is made of stainless steel, equipped with microcomputer intelligent digital temperature control instrument and hot air circulation system.
Features
1. The inside and outside of the box are welded with good steel plates, the surface is electrostatic sprayed, the working room is mirror stainless steel or high temperature resistant silver paint, the door has an observation window or a double door structure, and the shape is novel, beautiful and energy-saving.
2. Microcomputer intelligent digital display temperature control instrument, accurate and reliable temperature control, while displaying the set temperature and the temperature in the box, with overheating, leakage, Sensor fault alarm function, timing function. (Optional intelligent LCD temperature control instrument).
3. Adopt low noise fan and suitable air duct to form hot air circulation system, dry hot air directly through the heated object drying, sterilizing.
4. In addition to the above functions, the upgraded liquid crystal display temperature controller also has programmable temperature control, can be equipped with RS-485 interface, can be connected to the recorder and computer, and can record the change of temperature parameters (optional).
Principle
The temperature is precisely controlled by the microcomputer intelligent digital display temperature control instrument, and the low-noise fan and suitable air duct are used to form a hot air circulation system, so that the dry and hot air is evenly circulated in the box, and the drying, baking and melting wax, sterilizing and other processes are realized directly through the heated object.
Applications
Industrial and mining enterprises, laboratories, R & D institutions
Steps
Connect the power supply and ensure that the voltage is 220V 50Hz.
2. Open the box door and place the items to be processed on the shelf.
3. Close the box door and set the required temperature and time through the microcomputer intelligent digital display temperature control instrument (Timer Range 1-9999min).
4. Start the equipment, the hot air circulation system starts to work, monitor the temperature display and alarm function.
5. After processing is completed, turn off the device and remove the items.
Notice
Check whether the Power frequency meets the 220V 50Hz requirement before use.
Avoid overheating use and pay attention to the overheating alarm function.
Regularly check the Sensor and Leakage Protection function.
Do not block the observation window during operation to ensure good ventilation.
Power off treatment during cleaning to avoid damage to the electrostatic spray surface.
