Overview

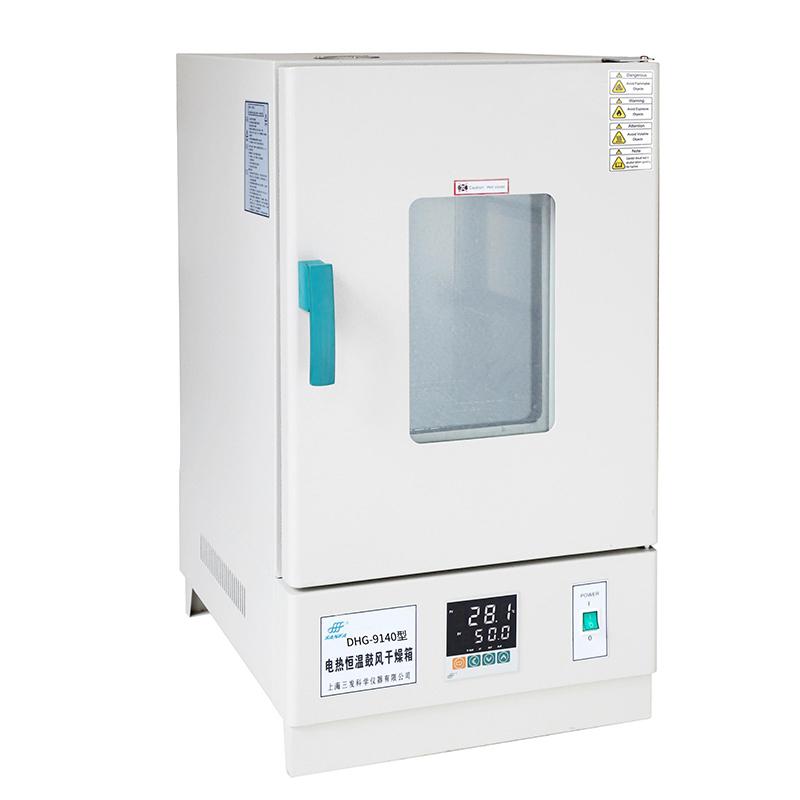

SANFA DHG-9140 electric thermostatic blast drying oven is a equipment suitable for industrial and mining enterprises, laboratories, R & D institutions and other places, mainly used for drying, baking wax melting and sterilizing. The equipment adopts a good steel plate welded box, the surface is electrostatic spraying, the working room is sprayed with high temperature resistant silver paint, and it has a microcomputer intelligent digital display temperature control instrument and hot air circulation system.
Features
1. The inside and outside of the box are welded with good steel plates, the surface is electrostatic sprayed, and the working room is sprayed with high temperature resistant silver paint. The door has an observation window or a double door structure, which is novel, beautiful and energy-saving.
2. Microcomputer intelligent digital display temperature controller, accurate and reliable temperature control, while displaying the set temperature and the temperature inside the box, with overheating, leakage, Sensor fault alarm function, timing function (optional intelligent LCD temperature controller).
3. Adopt low noise fan and suitable air duct to form hot air circulation system, dry hot air directly through the heated object drying, sterilizing.
4. In addition to the above functions, the upgraded liquid crystal display temperature controller also has programmable temperature control, can be equipped with RS-485 interface, can be connected to the recorder and computer, and can record the change of temperature parameters (optional).
Principle
The equipment precisely controls the temperature through a microcomputer intelligent digital display thermometer, combined with a hot air circulation system composed of a low-noise fan and a suitable air duct, so that the dry and hot air circulates inside the studio and directly passes through the heated object to achieve drying and sterilizing.
Applications
Industrial and mining enterprises, laboratories, R & D institutions
Steps
1. Power frequency 220V 50Hz.
2. Set the required temperature and time (Timer Range 1-9999min).
3. Start the device, and the microcomputer thermostat automatically controls the temperature and monitors the operating status.
4. Turn off the power after use.
Notice
• Pay attention to overheating, leakage, Sensor fault alarm function, and deal with abnormalities in time.
• Power frequency check before use to meet 220V 50Hz requirements.
• Timing function settings need to be within the range of 1-9999min.
When selecting the RS-485 interface, it is necessary to connect the recorder or computer correctly.
