Overview

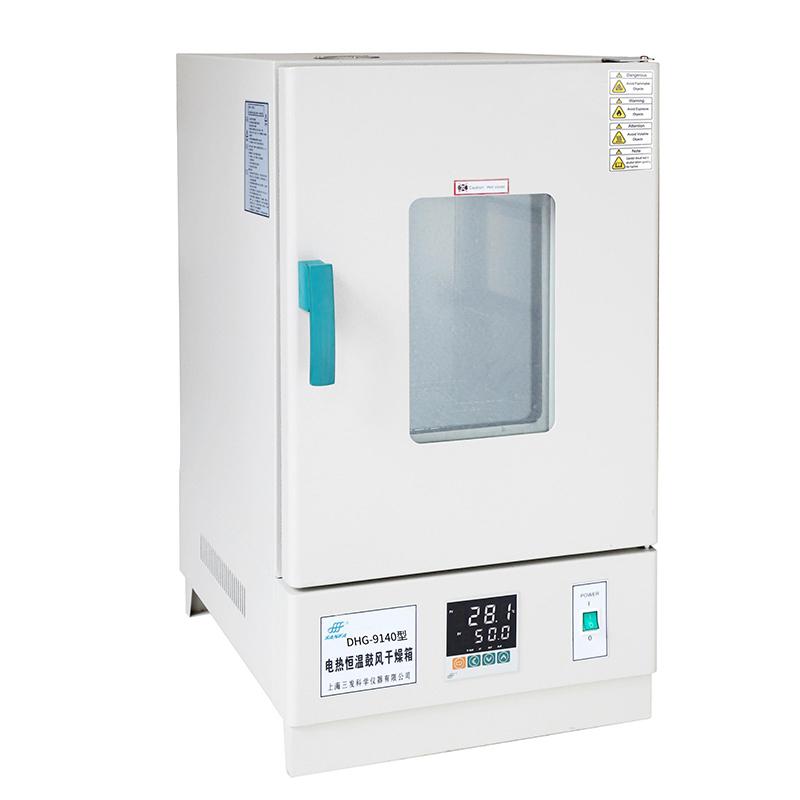

SANFA DHG-9140A electric thermostatic blast drying oven is a drying equipment suitable for industrial and mining enterprises, laboratories, R & D institutions and other places. It has the functions of drying, baking wax melting, sterilizing and so on. The box is made of good steel plate welding, the surface is electrostatic spraying, the working room is made of stainless steel, equipped with microcomputer intelligent digital temperature control instrument and hot air circulation system, the temperature control is accurate and reliable.
Features
1. The inside and outside of the box are welded with good steel plates, the surface is electrostatic sprayed, the working room is mirror stainless steel or high temperature resistant silver paint, the door has an observation window or a double door structure, and the shape is novel, beautiful and energy-saving.
2. Microcomputer intelligent digital display temperature controller, accurate and reliable temperature control, while displaying the set temperature and the temperature inside the box, with overheating, leakage, Sensor fault alarm function, timing function (optional intelligent LCD temperature controller).
3. Adopt low noise fan and suitable air duct to form hot air circulation system, dry hot air directly through the heated object drying, sterilizing.
4. In addition to the above functions, the upgraded liquid crystal display temperature controller also has programmable temperature control, can be equipped with RS-485 interface, can be connected to the recorder and computer, and can record the change of temperature parameters (optional).
Principle
The temperature in the box is precisely controlled by a microcomputer intelligent digital display temperature control instrument, and the hot air circulation system composed of a low-noise fan and a suitable air duct is used to make the dry hot air circulate evenly and directly pass through the heated object, so as to realize the functions of drying, baking, melting wax, and sterilizing.
Applications
Industrial and mining enterprises, laboratories, R & D institutions
