Overview

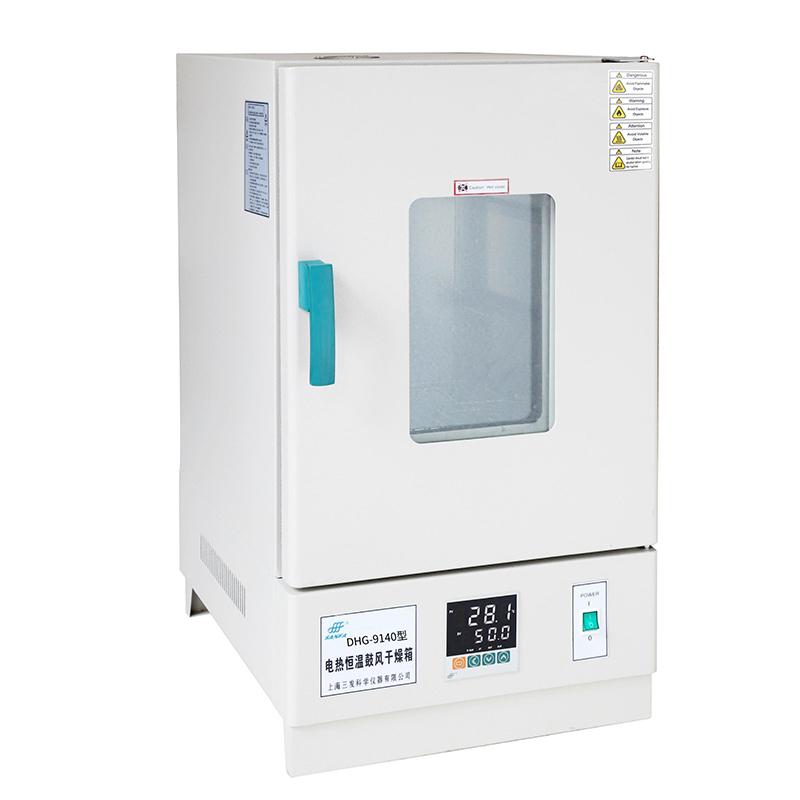

SANFA DHG-9101-0 electric thermostatic blast drying oven is suitable for drying, baking wax and sterilizing in industrial and mining enterprises, laboratories, R & D institutions, etc. The box is welded with good steel plate, the surface is electrostatic sprayed, the studio is sprayed with high temperature resistant silver paint, the door has an observation window or a double door structure, which is novel, beautiful and energy-saving.
Features
1. The inside and outside of the box are welded with good steel plates, the surface is electrostatic sprayed, the working room is mirror stainless steel or high temperature resistant silver paint, the door has an observation window or a double door structure, and the shape is novel, beautiful and energy-saving.
2. Microcomputer intelligent digital display temperature control instrument, accurate and reliable temperature control, while displaying the set temperature and the temperature in the box, with overheating, leakage, Sensor fault alarm function, timing function. (Optional intelligent LCD temperature control instrument).
3. Adopt low noise fan and suitable air duct to form hot air circulation system, dry hot air directly through the heated object drying, sterilizing.
4. In addition to the above functions, the upgraded liquid crystal display temperature controller also has programmable temperature control, can be equipped with RS-485 interface, can be connected to the recorder and computer, and can record the change of temperature parameters (optional).
Principle
Low noise fan and suitable air duct are used to form a hot air circulation system, and the dry hot air is directly dried and sterilized through the heated object.
Applications
Industrial and mining enterprises, laboratories, R & D institutions
Steps
1. Turn on the power supply and set the required temperature and time parameters.
2. Start the equipment and the hot air circulation system starts to work.
3. Monitor the temperature display to ensure operation within the set range.
4. The device automatically stops working after the timing expires.
Notice
Please read the manual carefully before use to ensure correct operation.
Do not open the box door at will when the equipment is running, so as not to affect the temperature uniformity.
Regularly check the power cord and grounding conditions to ensure power safety.
When cleaning, please cut off the power supply to avoid water or detergent from entering electrical components.
In case of overheating, leakage and other alarms, please stop using it immediately and contact a professional for maintenance.
