Overview

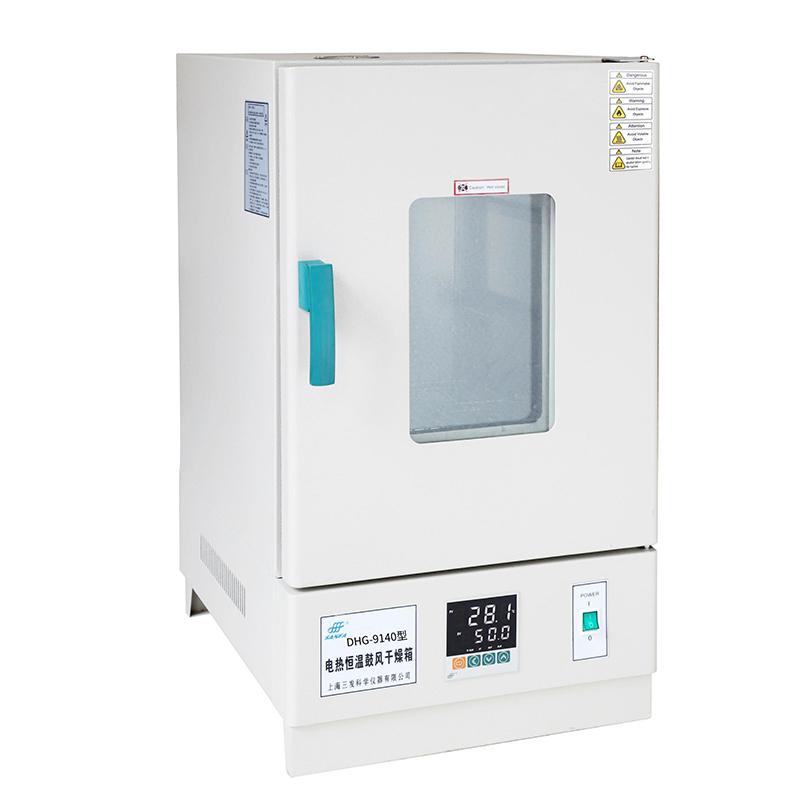

SANFA DHG-9101-1A electric thermostatic blast drying oven is a drying equipment suitable for industrial and mining enterprises, laboratories, R & D institutions and other places. It has the functions of drying, baking wax melting, sterilizing and so on. The box is made of good steel plate welding, the surface is electrostatic spraying, the working room is made of stainless steel, and it is equipped with a microcomputer intelligent digital display temperature control instrument and a hot air circulation system.
Features
1. The inside and outside of the box are welded with good steel plates, the surface is electrostatic sprayed, the working room is mirror stainless steel or high temperature resistant silver paint, the door has an observation window or a double door structure, and the shape is novel, beautiful and energy-saving.
2. Microcomputer intelligent digital display temperature controller, accurate and reliable temperature control, while displaying the set temperature and the temperature inside the box, with overheating, leakage, Sensor fault alarm function, timing function (optional intelligent LCD temperature controller).
3. Adopt low noise fan and suitable air duct to form hot air circulation system, dry hot air directly through the heated object drying, sterilizing.
4. In addition to the above functions, the upgraded liquid crystal display temperature controller also has programmable temperature control, can be equipped with RS-485 interface, can be connected to the recorder and computer, and can record the change of temperature parameters (optional).
Principle
The temperature is precisely controlled by the microcomputer intelligent digital display thermometer, and the hot air circulation system composed of low-noise fans and suitable air ducts is used to make the dry hot air in the domestic circulation of the box, and directly pass through the heated object to realize the process of drying, baking and melting wax, sterilizing, etc.
Applications
Industrial and mining enterprises, laboratories, R & D institutions
Steps
Connect the power supply and ensure that the voltage is 220V 50Hz.
2. Open the equipment door and place the object to be processed on the shelf.
3. Close the door and set the required temperature (range RT + 10-300 ° C) and timing time (1-9999min) through the thermostat.
4. Start the equipment, the hot air circulation system starts to work, monitor the temperature display and alarm function.
5. After the timing expires, the device automatically stops, removes the object, and turns off the power.
Notice
Check whether the Power frequency meets the 220V 50Hz requirement before use.
Make sure the door is tightly closed to avoid heat loss.
Regularly clean the studio to maintain hygiene.
Pay attention to alarm functions such as overheating and leakage, and deal with abnormalities in a timely manner.
When an optional RS-485 interface is available, the recorder or computer needs to be connected correctly.
