Overview

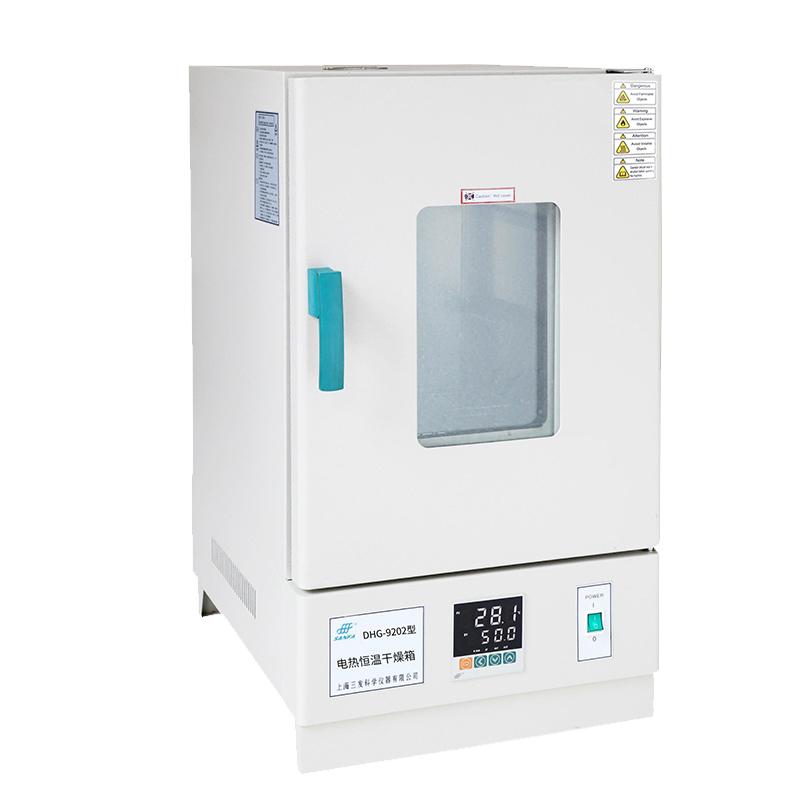

SANFA DHG-9202-00 electric thermostatic drying oven is suitable for drying, baking wax and sterilizing in industrial and mining enterprises, laboratories, R & D institutions, etc. The box body is welded with good steel plate, the surface is electrostatic sprayed, and the working room is sprayed with high temperature resistant silver paint. The door has an observation window or a double door structure, and the shape is novel, beautiful and energy-saving.
Features
1. The inside and outside of the box are welded with good steel plates, the surface is electrostatic sprayed, the working room is mirror stainless steel or high temperature resistant silver paint, the door has an observation window or a double door structure, and the shape is novel, beautiful and energy-saving.
2. Microcomputer intelligent LED display temperature controller, accurate and reliable temperature control, while displaying the set temperature and box temperature, with overheating, leakage, Sensor fault alarm function, timing function.
3. Adopt low noise fan and suitable air duct to form hot air circulation system, dry hot air directly through the heated object drying, sterilizing.
4. In addition to the above functions, the upgraded liquid crystal display temperature controller also has programmable temperature control, can be equipped with RS-485 interface, can be connected to the recorder and computer, and can record the change of temperature parameters.
Principle
Low noise fan and suitable air duct are used to form a hot air circulation system, and dry hot air directly passes through the heated object to realize drying and sterilizing.
Applications
Industrial and mining enterprises, laboratories, R & D institutions
Steps
1. Set the temperature: Set the required temperature through the microcomputer intelligent LED display temperature controller.
2. Set Timer: Set the Timer Range of 1-9999 minutes through the thermostat.
3. Start the equipment: turn on the power supply, and the hot air circulation system starts to work.
4. Monitor operation: Observe the set temperature displayed by the temperature controller and the temperature in the box, and pay attention to the alarm function.
5. Complete the operation: stop the equipment operation after the timing is over or manually.
Notice
Pay attention to overheating, leakage, Sensor fault alarm function, and deal with abnormal situations in time.
Power frequency is 220V 50Hz before use.
Regularly check the operating status of the equipment to ensure the normal operation of the hot air circulation system.
Avoid running continuously for a long time in a high temperature environment and pay attention to the heat dissipation of the equipment.
