Overview

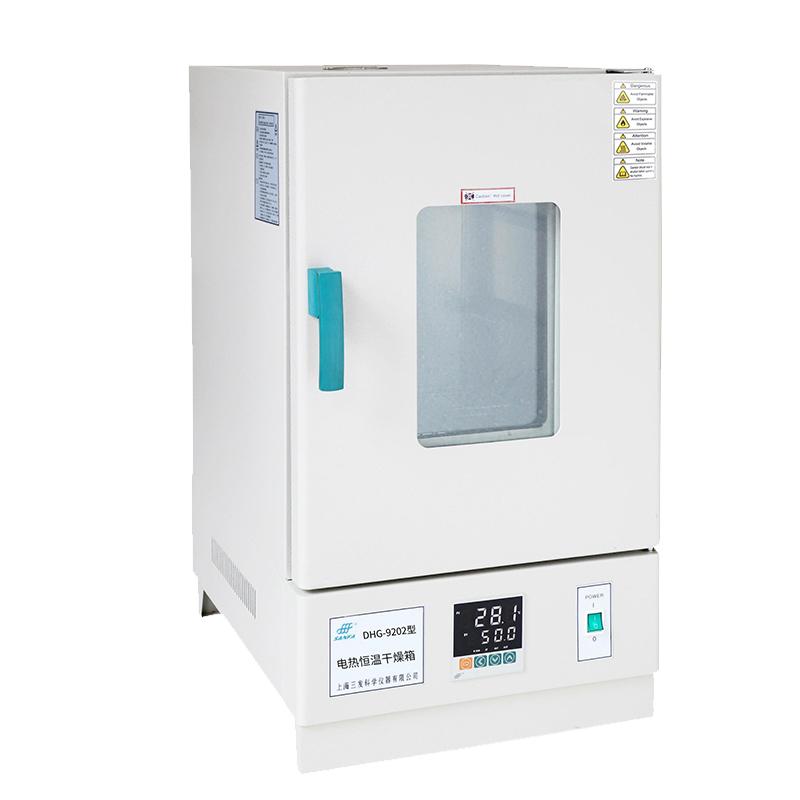

SANFA DHG-9202-1 electric thermostatic drying oven is a drying equipment suitable for industrial and mining enterprises, laboratories, R & D institutions and other places. It has the functions of drying, baking wax melting, sterilizing and so on. The box is made of good steel plate welding, the surface is electrostatic spraying, the working room is sprayed with high temperature resistant silver paint, equipped with microcomputer intelligent temperature control system and hot air circulation system.
Features
1. The inside and outside of the box are welded with good steel plates, the surface is electrostatic sprayed, the working room is sprayed with high temperature resistant silver paint, the door has an observation window or a double door structure, which is novel, beautiful and energy-saving
2. Microcomputer intelligent LED display temperature controller, accurate and reliable temperature control, while displaying the set temperature and the temperature in the box, with overheating, leakage, Sensor fault alarm function, timing function
3. Use low noise fan and suitable air duct to form hot air circulation system, dry hot air directly through the heated object drying, sterilizing
4. In addition to the basic functions of the upgraded liquid crystal display temperature controller, it also has programmable temperature control, can be equipped with RS-485 interface, can be connected to the recorder and computer, and can record the change of temperature parameters
Principle
The heating system is precisely controlled by a microcomputer intelligent temperature controller, and a low-noise fan and a suitable air duct are used to form a hot air circulation system, so that the dry and hot air circulates inside the studio and directly passes through the heated object to achieve uniform drying and sterilizing effects.
Applications
Industrial and mining enterprises, laboratories, R & D institutions
Steps
1. Turn on the power supply and set the required temperature
2. Set the timing time (1-9999 minutes)
3. Start the device and start working
4. Turn off the power after the work is completed
Notice
※ Please read the instruction manual carefully before use.
※ Do not open the door arbitrarily while the equipment is operating.
※ Pay attention to over-temperature and overheating alarm warnings.
※ Regularly inspect the power cord and grounding condition.
※ Keep the area around the equipment well-ventilated.
