Overview

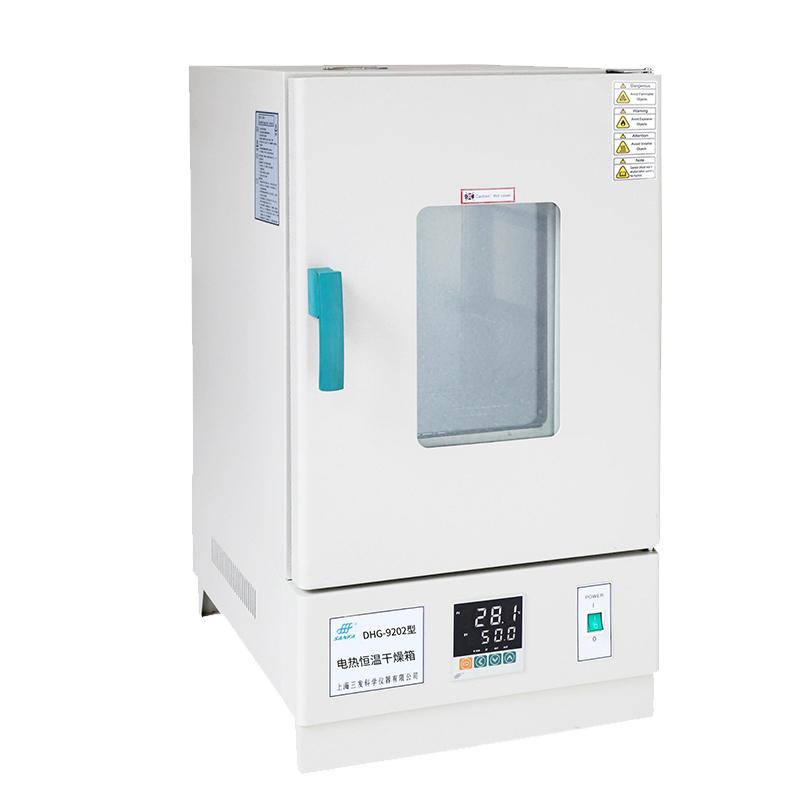

SANFA DHG-9202-1A electric thermostatic drying oven is a drying equipment suitable for industrial and mining enterprises, laboratories, R & D institutions and other places, with drying, baking wax melting, sterilizing and other functions. The box is made of good steel plate welding, the surface is electrostatic spraying, the studio is made of mirror stainless steel, equipped with microcomputer intelligent LED display temperature control instrument and hot air circulation system.
Features
1. The inside and outside of the box are welded with good steel plates, the surface is electrostatic sprayed, and the working room is mirror stainless steel, which is novel, beautiful and energy-saving
2. Microcomputer intelligent LED display temperature controller, accurate and reliable temperature control, while displaying the set temperature and the temperature in the box, with overheating, leakage, Sensor fault alarm function and timing function
3. Use low noise fan and suitable air duct to form hot air circulation system, dry hot air directly through the heated object drying, sterilizing
4. The upgraded liquid crystal display temperature controller is optional, with programmable temperature control, can be equipped with RS-485 interface, can be connected to the recorder and computer, and can record the change of temperature parameters
Principle
The temperature is precisely controlled by the microcomputer intelligent temperature controller, and the low-noise fan and hot air circulation system are used to circulate the dry and hot air inside the studio, directly heat the heated object evenly, and realize the functions of drying, baking and melting wax and sterilizing.
Applications
Industrial and mining enterprises, laboratories, R & D institutions
Steps
1. Connect the power supply and set the required temperature and time parameters
2. Start the equipment and the hot air circulation system starts to work
3. Monitor the temperature and operating status on the display panel
4. After reaching the set time or temperature, the device will automatically stop or alarm
5. Turn off the power and take out the disposal items.
Notice
Power frequency meets 220V 50Hz requirements before use
Avoid overtemperature operation and pay attention to the overtemperature alarm function
Regularly Check Sensors and Electrical Systems to Prevent Leakage Failures
Loading items does not exceed the capacity of the studio to ensure smooth hot air circulation
Use a soft cloth to wipe when cleaning to avoid damage to the mirror stainless steel liner
