Overview

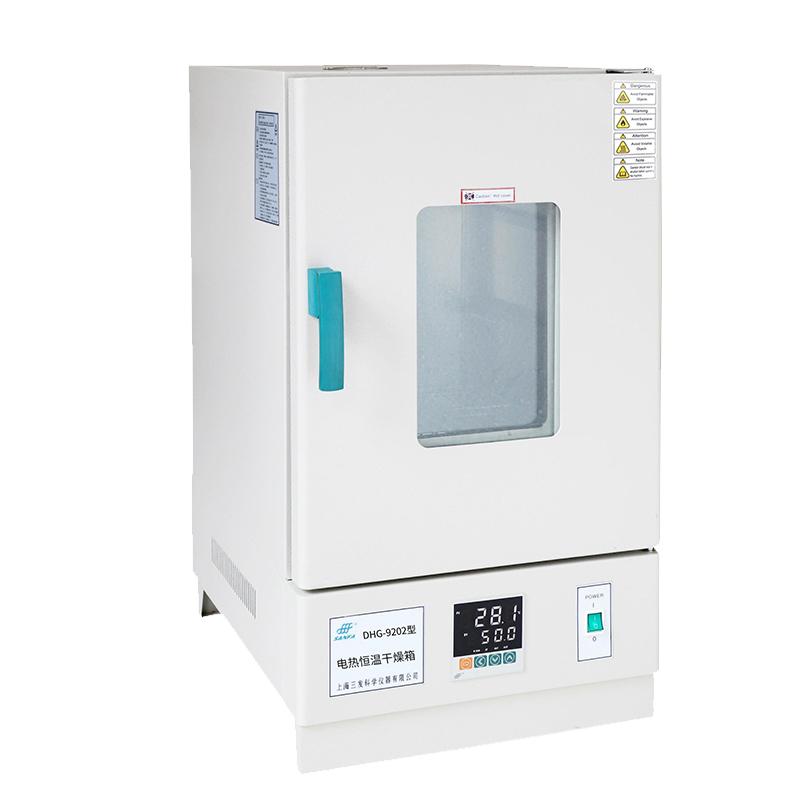

SANFA DHG-9202-2 electric thermostatic drying oven is a drying equipment suitable for industrial and mining enterprises, laboratories, R & D institutions and other places. It has the functions of drying, baking wax melting, sterilizing and so on. The box is welded with good steel plate, the surface is electrostatic sprayed, the working room is sprayed with high temperature resistant silver paint, the door has an observation window or a double door structure, and the shape is novel, beautiful and energy-saving.
Features
1. The inside and outside of the box are welded with good steel plates, the surface is electrostatic sprayed, the working room is mirror stainless steel or high temperature resistant silver paint, the door has an observation window or a double door structure, and the shape is novel, beautiful and energy-saving.
2. Microcomputer intelligent LED display temperature controller, accurate and reliable temperature control, while displaying the set temperature and the temperature inside the box, with overheating, leakage, Sensor fault alarm function, timing function (optional intelligent LCD temperature controller).
3. Adopt low noise fan and suitable air duct to form hot air circulation system, dry hot air directly through the heated object drying, sterilizing.
4. In addition to the above functions, the upgraded liquid crystal display temperature controller also has programmable temperature control, can be equipped with RS-485 interface, can be connected to the recorder and computer, and can record the change of temperature parameters (optional).
Principle
Low noise fan and suitable air duct are used to form a hot air circulation system, and the temperature is precisely controlled by a microcomputer intelligent temperature controller. The dry hot air directly passes through the heated object to realize the drying and sterilizing process.
Applications
Industrial and mining enterprises, laboratories, R & D institutions
Steps
1. Turn on the power supply and set the required temperature and time parameters.
2. Start the equipment and the hot air circulation system starts to work.
3. Monitor the temperature display to ensure operation within the set range.
4. The device automatically stops working after the timing expires.
Notice
Please read the manual carefully before use to ensure correct operation.
Pay attention to the overheating alarm function to avoid excessive temperature.
Regularly check the leakage protection function to ensure safe use.
Keep the equipment well ventilated to avoid blocking the air duct.
When cleaning, please disconnect the power supply and wipe it with a soft fabric.
