Overview

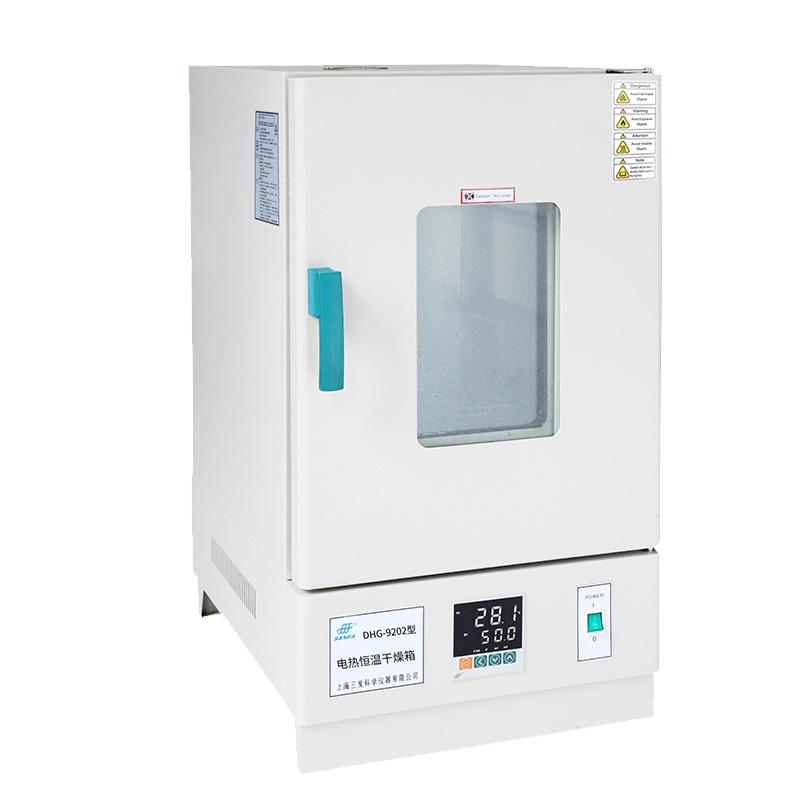

SANFA DHG-9202-2A electric thermostatic drying oven is a drying equipment suitable for industrial and mining enterprises, laboratories, R & D institutions and other places, with drying, baking wax melting, sterilizing and other functions. The box is welded with good steel plate, the surface is electrostatic spraying, the working room is mirror stainless steel, equipped with microcomputer intelligent temperature control system and hot air circulation system.
Features
1. The inside and outside of the box are welded with good steel plates, the surface is electrostatic sprayed, the working room is mirror stainless steel or high temperature resistant silver paint, the door has an observation window or a double door structure, and the shape is novel, beautiful and energy-saving.
2. Microcomputer intelligent LED display temperature controller, accurate and reliable temperature control, while displaying the set temperature and the temperature inside the box, with overheating, leakage, Sensor fault alarm function, timing function (optional intelligent LCD temperature controller).
3. Adopt low noise fan and suitable air duct to form hot air circulation system, dry hot air directly through the heated object drying, sterilizing.
4. In addition to the above functions, the upgraded liquid crystal display temperature controller also has programmable temperature control, can be equipped with RS-485 interface, can be connected to the recorder and computer, and can record the change of temperature parameters (optional).
Principle
The heating system is precisely controlled by the microcomputer intelligent temperature control instrument, combined with the hot air circulation system composed of low-noise fans and suitable air ducts, so that the dry and hot air is evenly circulated in the box, and directly passes through the heated object to realize the drying, baking and melting wax or sterilizing process.
Applications
Industrial and mining enterprises, laboratories, R & D institutions
Steps
Connect the power supply (220V 50Hz).
2. Set the required temperature (RT + 10-300 ° C) and Timer Range (1-9999min) through the thermostat.
3. Start the equipment and the hot air circulation system starts to work.
4. Monitor the temperature in the box, and the equipment has the functions of overheating, leakage, and Sensor fault alarm.
5. After the timing ends, the device automatically stops or manually shuts down.
Notice
• Power frequency is 220V 50Hz before use.
• The set temperature must not exceed 300 ° C.
• Pay attention to overheating, leakage, Sensor fault alarm prompt.
• Regularly check the box structure and electrical system.
• When optional RS-485 interface, please follow the instructions to connect the recorder or computer.
