Overview

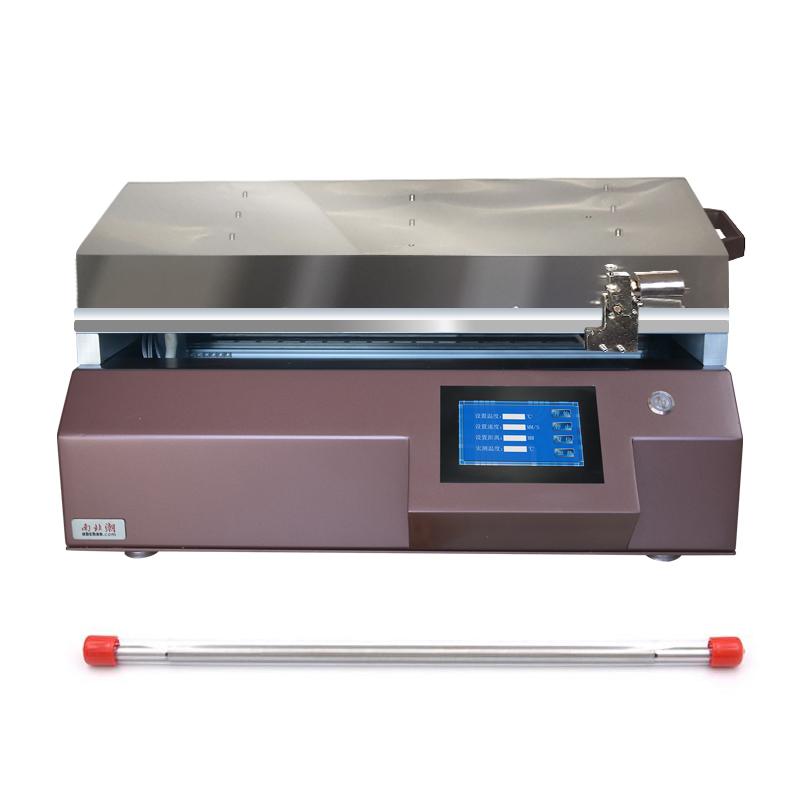

TBJ-X3-DJ30 Automatic Film Applicator is an experimental equipment integrating China bar, removable drawdown blade, Vacuum chuck and heating. It adopts imported accessories and has a good price. By controlling the speed and stable pressure of the Spreader, the uniformity and smoothness of the Spreader glue coating are guaranteed, the problem of artificial film inconsistency is solved, and the film reproducibility is improved. It is suitable for Spreader accurate wet-film on different substrates. The device has UV UV curing function, which is suitable for UV glue, UV ink, etc.
Features
1. Using imported accessories, the price is good and cheap.
2. Removable drawdown blade design, easy to clean and replace.
3. Integrated bar, Vacuum chuck, heating and UV curing function.
4. High Accuracy Spreader Control, Blade Coating accuracy +/- 0.003mm, meyer rod coating accuracy +/- 0.001mm.
5. Infinitely variable speed control, coating speed range 5~ 200mm/s.
6. Heating Temperature range RT +~ 180 ℃, Temperature Uniformity +/- 3 ℃.
7. Vacuum chuck system, effective coating area 400 * 300mm.
8. Optional accessories are abundant, such as leakage tank, substrate fixing fixture, etc.
9. Support custom functions, including jet system, UV solid inclusion device, and automatic inking system.
Principle
The Automatic Film Applicator ensures the uniformity and smoothness of the Spreader coating by controlling the speed of the Spreader and the steady pressure applied to the film applicator. The device uses a Vacuum chuck to fix the substrate, combines a removable drawdown blade or bar for Spreader, and uses heating and UV curing functions to treat the coating to achieve precise wet-film preparation.
Applications
Multinational enterprise R & D institutions, domestic and foreign universities, scientific research institutions
Steps
1. Prepare the substrate and place it on the Spreader stage.
2. Install removable drawdown blades or bars as required.
3. Set Spreader speed and pressure parameters.
4. Start the Vacuum chuck system to fix the substrate.
5. Spreader operation.
6. Enable heating or UV curing function as required.
7. Remove and clean the drawdown blade after completing the film.
Notice
• Customized coating speed below 5mm/s.
• The effective coating area and Vacuum Area can be customized.
• The meyer rod coating thickness range is determined according to the bar model.
• Uniformity of heating Temperature is +/- 3 ℃.
• Optional Accessories include leakage tanks, substrate fixtures, etc.
• Customization functions need to be confirmed in advance.
• The main power supply is 220V 50Hz.
• Pay attention to wavelength and Power parameters when using UV curing.
