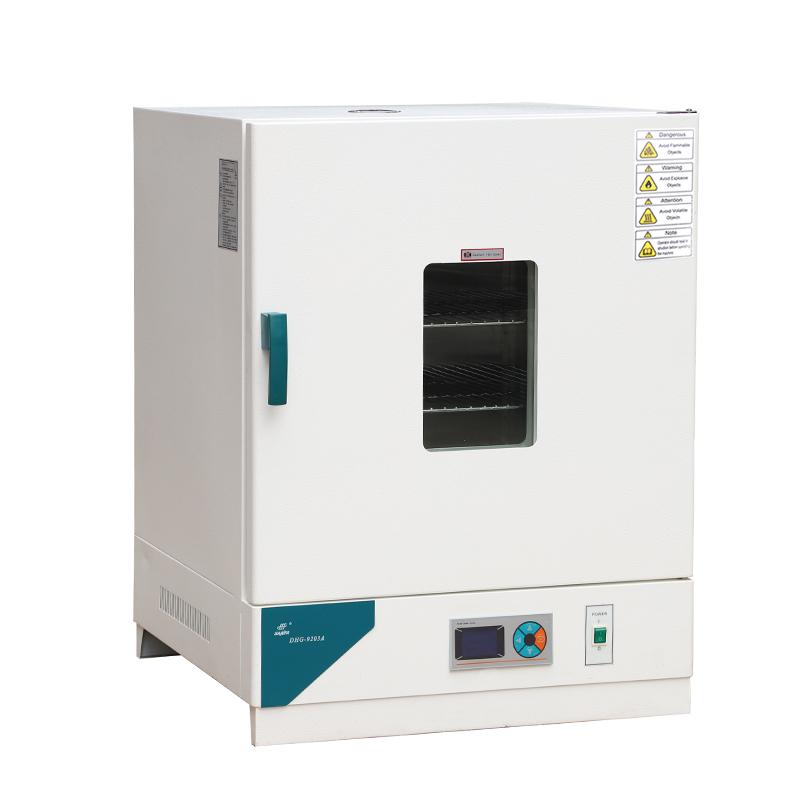

SANFA DHG-9053J Precision thermostatic blast Drying Oven mirror stainless steel liner PID control

Name: SANFA DHG-9053J Precision thermostatic blast Drying Oven mirror stainless steel liner PID control
Brand: sanfa
SKU: NB026011
Price: 683.0 USD
Availability: InStock

$ 683.00Ex works

Temperature control accuracy of +/- 0.2 ℃, Temperature Uniformity +/- 0.5 ℃, mirror stainless steel liner for easy cleaning, equipped with independent temperature limit alarm and test hole, support data recording interface.

Model

Get Quote

Category : Drying Oven

Brand : sanfa

SKU : NB026011

Service :The delivery and service By NBCLab.Com

Overview

DHG-9053J Precision thermostatic blast drying oven is a High Accuracy Temperature Control Equipment for Universities & colleges, Laboratories, R & D institutions for drying and sterilizing purposes.

Features

1. Mirror stainless steel liner, four corners semicircular arc transition, shelf bracket can be freely loaded and unloaded, easy to clean. 2. Adopt P.I.D fuzzy logic processing controller, liquid crystal display, quickly reach the set value and operate accurately and stably. 3. It is equipped with an independent temperature limit alarm system, which automatically interrupts when the temperature exceeds the limit to ensure the safe operation of the experiment (optional). 4. With a printer or RS-485 interface, it can be connected to a printer or computer to record temperature parameter changes (optional). There is a 25mm diameter test hole on the left side of the box, which is convenient for experimental operation and temperature measurement.

Principle

The device precisely adjusts the temperature through the P.I.D fuzzy logic controller, and combines the blast system to ensure the uniform and stable temperature of the studio, achieving High Accuracy thermostatic control.

Applications

Universities & colleges, laboratories, R & D institutions

Temperature Range
RT+5~300℃
Temperature Fluctuation
±0.2℃
Temperature resolution
0.1℃
Temperature Uniformity
±0.5℃
Volume
50L
Inner chamber dimensions
420*350*350mm
Liner material
Mirror stainless steel
shelf (std.)
2pcs
Timer Range
1~9999min
Power supply
220V 50Hz
input power
1000W
Operating temperature
RT+5~40℃
dimensions
680*450*480mm
Communication interface
Printer or RS-485 interface (optional)

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
