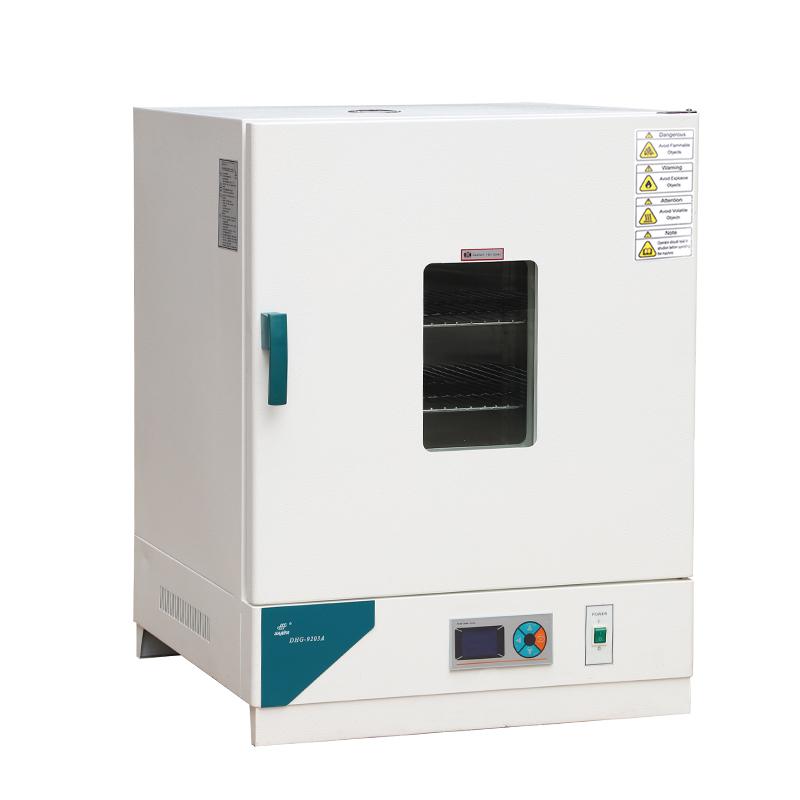

SANFA DHG-9203J Precision thermostatic blast Drying Oven mirror stainless steel liner P.I.D temperature control

Name: SANFA DHG-9203J Precision thermostatic blast Drying Oven mirror stainless steel liner P.I.D temperature control
Brand: sanfa
SKU: NB026013
Price: 1080.0 USD
Availability: InStock

$ 1080.00Ex works

Temperature range RT + 5-300 ℃, Temperature Fluctuation +/- 0.2 ℃, mirror stainless steel liner for easy cleaning, with independent temperature limit alarm system and test hole, support printer or RS-485 interface to record temperature paraMeters.

Model

Get Quote

Category : Drying Oven

Brand : sanfa

SKU : NB026013

Service :The delivery and service By NBCLab.Com

Overview

DHG-9203J precision thermostatic blast drying oven is a high Accuracy temperature control equipment produced by brand SANFA, suitable for Universities & colleges, laboratories, R & D institutions as drying and sterilizing with high temperature control accuracy.

Features

1. Mirror stainless steel liner, four corners semicircular arc transition, shelf bracket can be freely loaded and unloaded, easy to clean the box. 2. Adopt P.I.D fuzzy logic processing controller and liquid crystal display to quickly reach the set value and operate more accurately and stably. 3. Equipped with an independent temperature limit alarm system, it will automatically interrupt when the temperature exceeds the limit to ensure the safe operation of the experiment without accidents (optional). 4. With a printer or RS-485 interface, it can be connected to a printer or computer to record changes in temperature parameters (optional). There is a 25mm diameter test hole on the left side of the box, which is convenient for experimental operation and temperature measurement.

Principle

The drying oven precisely adjusts the temperature through the P.I.D fuzzy logic processing controller, and realizes uniform heating in combination with the blast system to ensure that the temperature in the box is quickly stable at the set value, which is suitable for experimental processes such as drying and sterilizing.

Applications

Universities & colleges, laboratories, R & D institutions

Notice

The independent temperature limit alarm system is an optional function and needs to be configured according to actual needs. Printer or RS-485 interface is optional and needs to be configured according to actual requirements.

Temperature Range
RT+5~300℃
Temperature Fluctuation
±0.2℃
Temperature resolution
0.1℃
Temperature Uniformity
±0.5℃
Volume
200L
Inner chamber dimensions
600*550*600mm
Liner material
Mirror stainless steel
shelf (std.)
3pcs
Timer Range
1~9999min
Power supply
220V 50Hz
input power
2000W
Operating temperature
RT+5~40℃
dimensions
860*650*730mm
Communication interface
Printer or RS-485 interface (optional)

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
