Overview

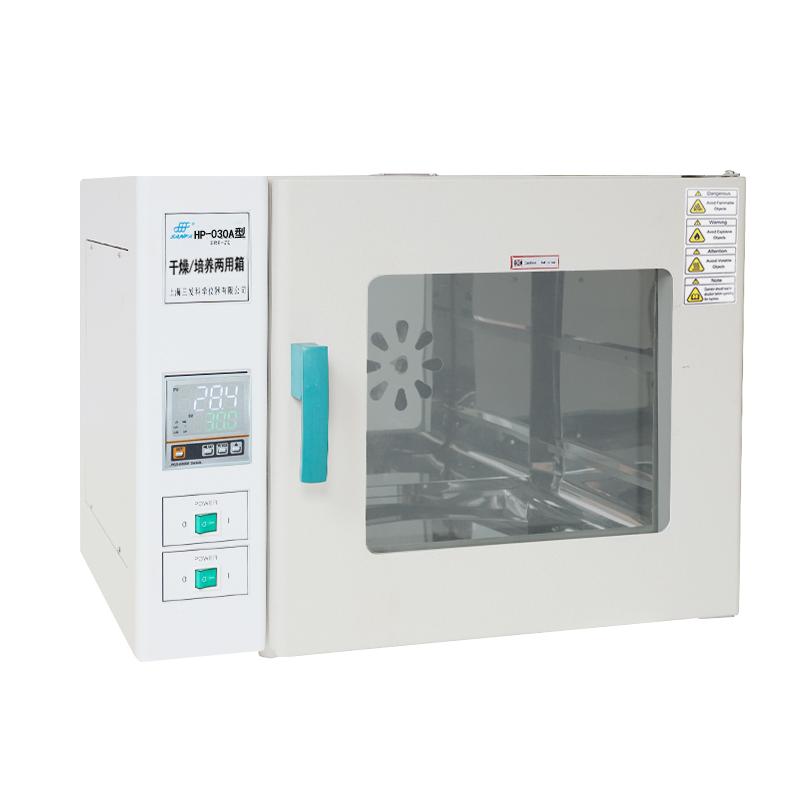

HP-030A drying oven/incubator (dual-use) is a new generation laboratory product developed by the SANFA brand with many years of production experience and the introduction of foreign professional technology. The product has a wide range of applications, both drying and fostering functions, simple and convenient operation, mass reliability, and can help Universities & colleges, scientific research and production units save time and improve work efficiency.
Features
1. Mirror stainless steel liner, four corners half arc design, easy to clean, adjustable shelf spacing.
2. Intelligent microcomputer controller, accurate and reliable temperature control, with over-temperature, Sensor failure, leakage, overcurrent and other protection functions, support sound and light alarm and timing functions.
3 drying, foster replacement operation is simple and convenient, intelligent control.
4. Forced warm air circulation design to ensure uniform temperature in the studio.
5. Using silicone rubber sealing strip and double-decked Glass observation window, easy to observe.
6. Optional RS-485 interface can be connected to an embedded printer to record temperature parameter changes (optional).
Principle
The product precisely controls the temperature through an intelligent microcomputer controller, uses a forced warm air circulation system to ensure uniform temperature distribution in the studio, and realizes intelligent switching between drying and fostering functions.
Applications
Universities & colleges, R & D institutions, production units
Steps
Connect the power supply and ensure that the voltage is 220V 50Hz.
2. Select drying or foster mode as needed.
3. Set the temperature range: foster mode is RT + 5~ 80 ℃, drying mode is 80~ 250 ℃.
4. Adjust the shelf spacing in the box to fit the sample.
5. Set Timer Range 1-9999 minutes.
6. Start the equipment and monitor temperature fluctuations and uniformity.
7. Optional RS-485 interface to connect to the printer to record data.
Notice
Ambient Temperature should be maintained at RT + 5~ 35 ℃.
Check whether the Power frequency meets the 220V 50Hz requirement before use.
Pay attention to whether the protection functions such as overtemperature, Sensor failure, leakage and overcurrent are normal.
Regularly clean the mirror stainless steel liner and observation window.
Avoid use in humid or flammable environments.
When an optional RS-485 interface is available, an additional embedded printer is required.
