Overview

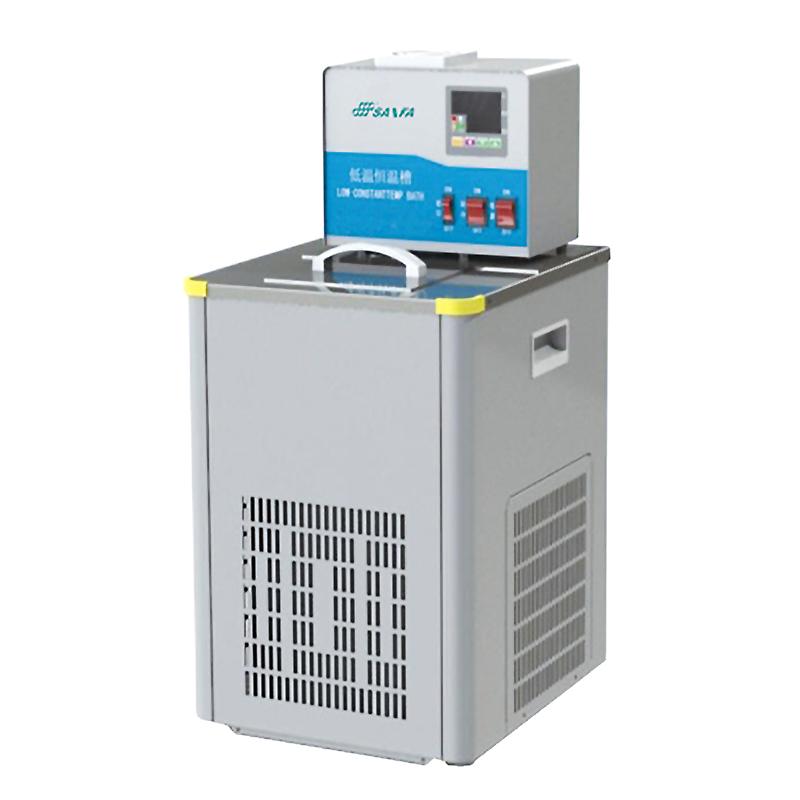

The SANFA DKX-1006 Low Temperature Cycle Thermostat is a multi-domain thermostatic device with a powerful pressure suction pump and external bath connector, intelligent microcomputer temperature control, and High Accuracy Temperature Regulation.
Features
1. Equipped with a powerful pressure suction pump to provide a thermostatic source for the peripheral groove
2. Equipped with a connecting port for external bath
3. Intelligent microcomputer temperature control is stable, high accuracy, environmentally friendly refrigerants, Compressors, circulating pumps and other key components are imported products
4. Over-temperature, low-temperature sound and light tracking alarm and liquid level protection functions ensure that samples are reliably protected without accidents
Principle
Through the intelligent microcomputer control system to precisely adjust the temperature, with the Compressor, circulation pump and other key components to achieve thermostatic circulation, to provide a stable temperature environment for the peripheral groove.
Applications
Petroleum, Chemical Industry, Life Science, Measurement, Light Industry, Colleges, Scientific Research
Steps
1. Connect the power supply (~ 220V 50Hz)
2. Set the required temperature range (-10~ 100 ℃)
3. Start the device for thermostatic cycling
4. Monitor Temperature Fluctuation （ +/- 0.1 ° C) and Pump Flow (4L/min)
Notice
• Power frequency meets requirements before use (~ 220V 50Hz)
• Note Tank Volume and Size Limits (6L, 210 * 160 * 180mm)
• Regularly check over-temperature, low temperature alarm and liquid level protection functions
• Avoid exceeding the device power range (900W-2000W)
