Overview

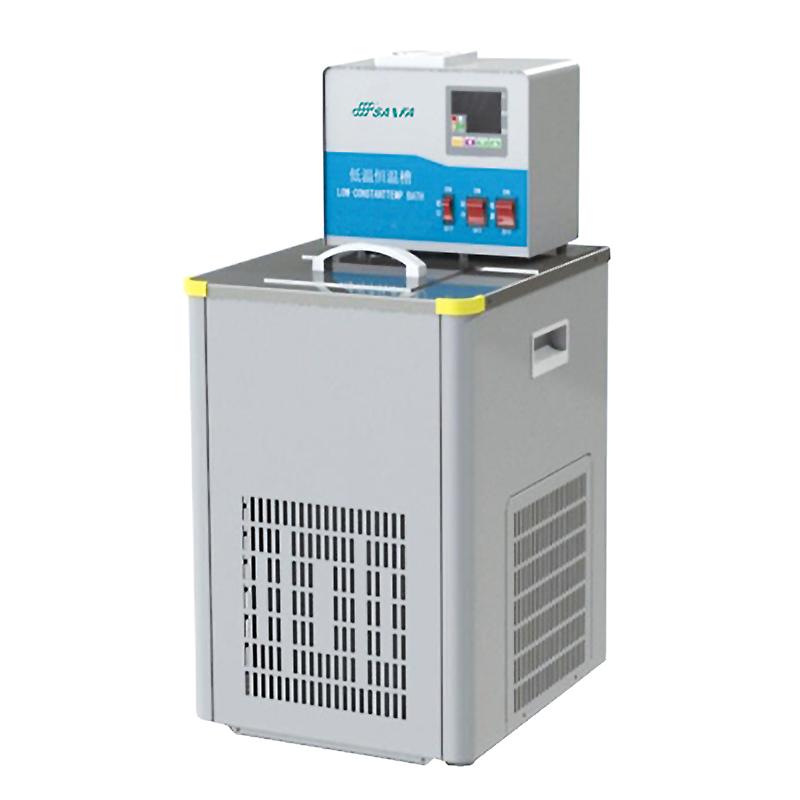

The SANFA DKX-3006 Low Temperature Cycle Thermostat is a multi-domain thermostatic device with environmentally friendly refrigerants and imported key components, High Accuracy Temperature Control and Multiple Safety Protections.
Features
1. Equipped with a powerful pressure suction pump to provide a thermostatic source for the peripheral groove
2. Equipped with a connecting port for external bath
3. Intelligent microcomputer temperature control is stable, high accuracy, environmentally friendly refrigerants, Compressors, circulating pumps and other key components are imported products
4. Over-temperature, low-temperature sound and light tracking alarm and liquid level protection functions ensure reliable sample protection
Principle
The temperature is precisely adjusted by the microcomputer intelligent control system, and the strong pressure suction pump and circulation system are used to realize the circulating supply of thermostatic liquid to ensure that the temperature is stable within the set range.
Applications
Petroleum, Chemical Industry, Life Science, Measurement, Light Industry, Colleges, Scientific Research
Steps
1. Connect the power supply (~ 220V 50Hz)
2. Set the required temperature range (-30~ 100 ℃)
3. Start the equipment, monitor Temperature Fluctuation （ +/- 0.1 ℃)
4. Use the pump flow rate of 4L/min for circulation
5. Pay attention to over-temperature, low temperature alarm and liquid level protection functions
Notice
• Power frequency is~ 220V 50Hz
• Note that the Tank Volume is 6L to avoid overloading
• Monitor Temperature Fluctuations to Ensure Range of +/- 0.1 ° C
• Regularly check the pump flow and connection port status
• Pay attention to over-temperature and low temperature sound and light alarm prompts
