Overview

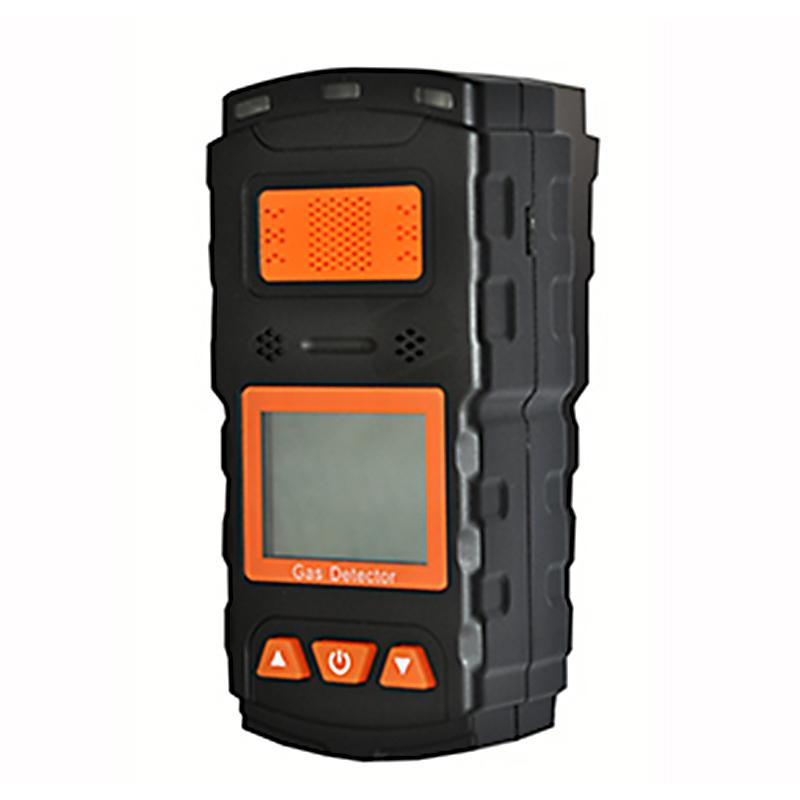

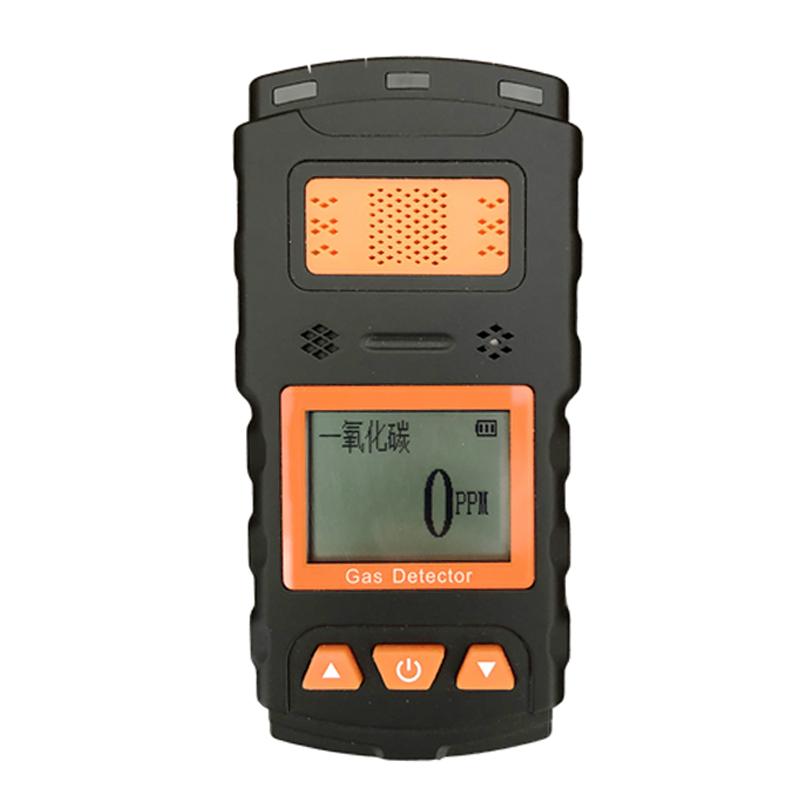

HUIRUIPU HRP-B1000-O2 Oxygen Gas detector is a cost-effective waterproof single Gas detector with a friendly interface in Chinese and a pure imported Sensor. It has the characteristics of high Sensitivity, stability and reliability. The instrument is widely used in oil production, smelting, chemical industry, municipal administration, sewage treatment, electric power, gas, mining, tunnel construction, fire protection, warehousing, papermaking, brewing and other places that need to detect the concentration of toxic and harmful gases.
Features
1. Upload computer function (temporarily optional)
2.6000 alarm record query function
3. Ultra-small size, exquisite design
4. Super high waterproof design
5. Sensor fault self-test, auto calibration function, reduce measurement errors
6. Provide Replaceable In-Line Module Sensors
7. Two-level triple alarm (sound, light, vibration)
8. Sound and light alarms can be clearly identified
9. The shell is made of engineering plastic, which is non-slip, waterproof, dustproof and explosion-proof.
10. Feels good, small and easy to carry
Principle
The Oxygen Gas detector uses Electrochemical sensor principle to detect oxygen concentration by diffusion sampling method. The sensor response time is ≤ 15 seconds, which can quickly and accurately measure the oxygen content in the environment.
Applications
Oil extraction, smelting, chemical industry, municipal administration, sewage treatment, electric power, gas, mining, tunnel construction, fire protection, warehousing, papermaking, brewing
Standards
Ex ib IIB T3 Gb
Steps
1. Make sure the battery is fully charged before turning it on and using it.
2. Gas detection by placing the detector in the environment to be tested
3. Observe the real-time data and system status on the LCD display
4. When abnormal gas concentration is detected, the instrument will alarm by sound, light and vibration
5. After use, 6000 alarm records can be queried
6. Sensor self-test and calibrate regularly
7. Charge in time when the power is insufficient
Notice
• Working ambient temperature range -20 ℃~ 50 ℃
• The working environment humidity should be less than 95% RH (no condensation)
• Powered by a DC3.7V lithium battery with a capacity of 2000mAh
• Charging time is 6h~ 8h
Sensors have a lifespan of 2 years and need to be replaced regularly
• instrument weight 150g, dimensions 112 * 55 * 31mm
• Standby time greater than 8 hours
• Range from 0 to 30% vol, resolution 0.1% vol
