Overview

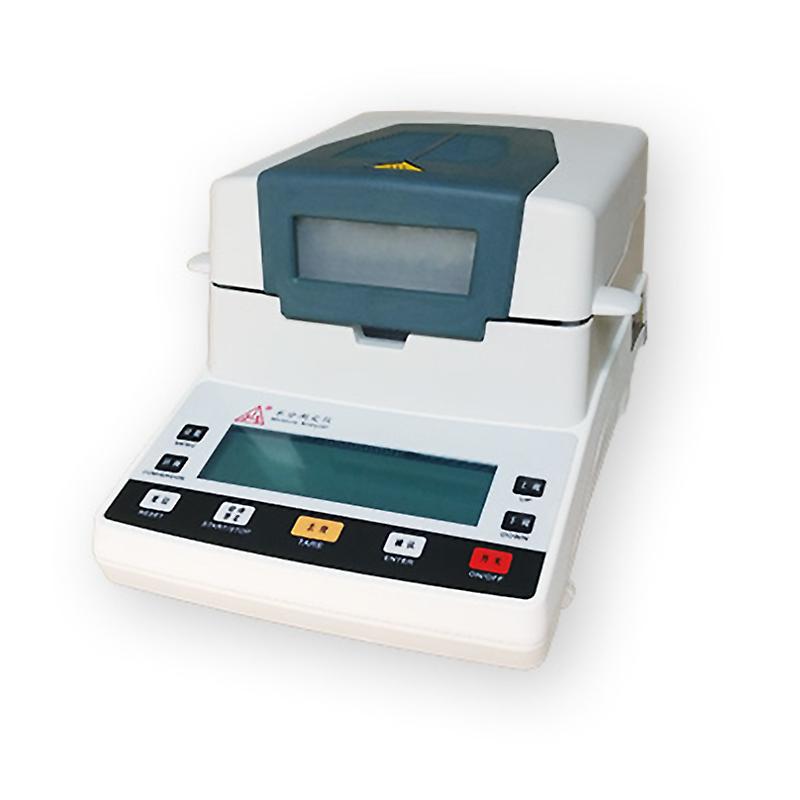

Tianma halogen Moisture Analyzer TM-101MW adopts the principle of halogen lamp pyrolysis weight and is a rapid moisture detection instrument. While measuring the weight of the sample, the halogen lamp heating unit and water evaporation channel rapidly dry the sample, continuously measure and instantly display the lost moisture content of the sample, and lock and display the final moisture content value after the drying procedure is completed. Compared with the international oven heating method, halogen heating can achieve the maximum heating function in the shortest time. The sample is rapidly dried at high temperature. The test results have good conformity and substitutability with the oven method. The detection efficiency is much higher than that of the oven method. Generally, the sample can be measured in only a few minutes.
Features
1. Using halogen lamp pyrolysis weight principle, rapid detection of moisture
2. The test results are in good conformity and substitutability with the international oven method
3. The detection efficiency is much higher than the oven method, and the general sample only takes a few minutes to complete the determination
4. Simple operation and accurate testing
5. Can display moisture value, drying value, measurement time, temperature value and other data
6. It has the function of connecting with computers and printers
Principle
While measuring the weight of the sample, the halogen lamp heating unit and the water evaporation channel quickly dry the sample. During the drying process, the instrument continuously measures and instantly displays the moisture content of the sample lost m%. After the drying procedure is completed, the final measured moisture content value is locked and displayed. Halogen heating can achieve the maximum heating function in the shortest time, and the sample is rapidly dried at high temperature.
Applications
Moisture detection
Steps
1. Place the sample on the pan
2. Set heating temperature and time parameters
3. Start the drying procedure
4. Automatic measurement and display of moisture content
5. Lock to display final moisture value after drying
Notice
• Capacity is 110g
• Heating temperature range is RT + 40~ 199 ℃
• Timer Range 1~ 99min
• Please confirm that the instrument is in a horizontal stable position before use
• Avoid use in humid or vibrating environments
