Overview

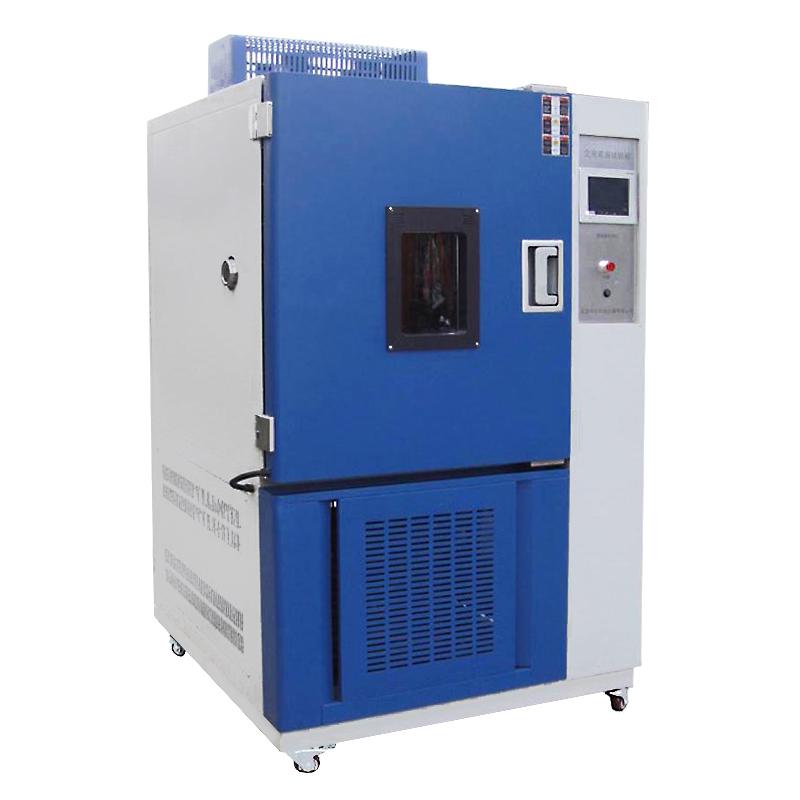

ZKHS DHS-010 low temperature constant heating and humidity box is a testing equipment for testing the performance parameters of electrical, electronic and Miscellaneous product materials in high temperature, low temperature, heat and humidity environment. The box body is processed by numerical control machine tool, which is beautiful and easy to operate. It is suitable for constant test requirements in aviation, automotive, home appliances, scientific research and other fields.
Features
1. The box is processed by numerical control machine tool, which is beautiful and easy to operate
2. The inner tank of the box is made of imported stainless steel (SUS304) mirror plate argon arc welding, and the shell is sprayed with A3 steel plate
3. Equipped with a 7.0-inch large screen, simple operation and easy program editing
4. Large observation window with lighting, double-decked Glass, clear observation of the situation in the box
5. Equipped with an independent temperature limit alarm system to ensure the safe operation of the experiment
6. Optional recorder and printer, recording parameters and temperature and humidity changes Linear dispersion
7. The left side of the box is equipped with a 50mm diameter test hole
8. Using the original French "Taikang" fully enclosed Compressor unit for refrigeration
9. Multi-wing blower with strong air circulation, uniform temperature distribution
10. The air circuit circulation design makes the temperature stabilize at the moment of opening the door, and the time is fast
11. The heating and cooling systems are completely independent, reducing test costs and increasing lifespan
Principle
The equipment realizes temperature control through a fully enclosed Air-Cooled compression refrigeration system and a nickel-chromium alloy electric heating heater. It adopts a built-in isolated all-stainless steel shallow surface evaporative humidifier and an evaporator coil dewpoint temperature laminar contact dehumidification method to achieve humidity control. Through a multi-wing blower strong air circulation, ensure that the temperature and humidity distribution in the test area is uniform and meet various environmental testing requirements.
Applications
Aviation, automotive, home appliances, scientific research
Standards
GB/T5170.5-2008、GB/T10586-2006、GB/T2423.1-2008、GB/T2423.3-2006
Steps
1. Connect the power supply (AC220V +/- 10% 50Hz or AC380V +/- 10% 50Hz three-phase five-wire system)
2. Set temperature, humidity and test time parameters through a 7.0-inch large screen
3. Start the device running
4. Monitor the condition of the box through a large observation window
5. Turn off the equipment after the test is completed
Notice
• Operating Environment Temperature should be in the range of 5 ℃~ + 30 ℃
• Operating Environment Humidity ≤ 85% R.H
• Pay attention to the safety protection function of the equipment, including leakage, short circuit, over temperature, water shortage and other protection
• Regularly check the operation status of the refrigeration system and humidification system
• Keep equipment well ventilated
