Overview

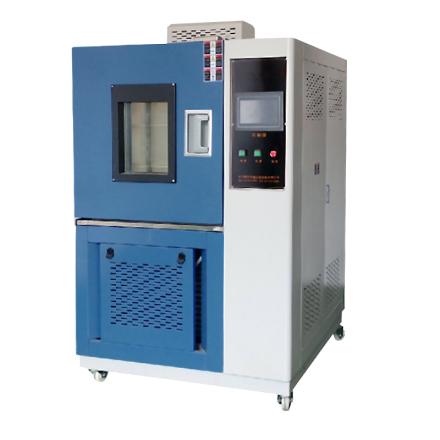

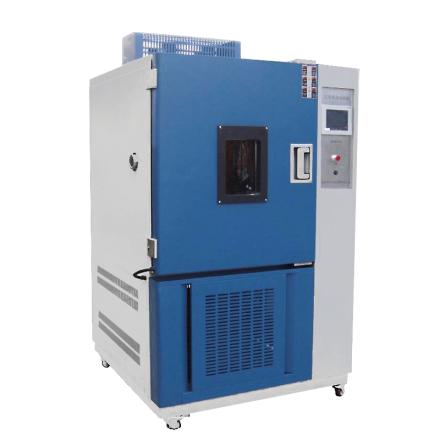

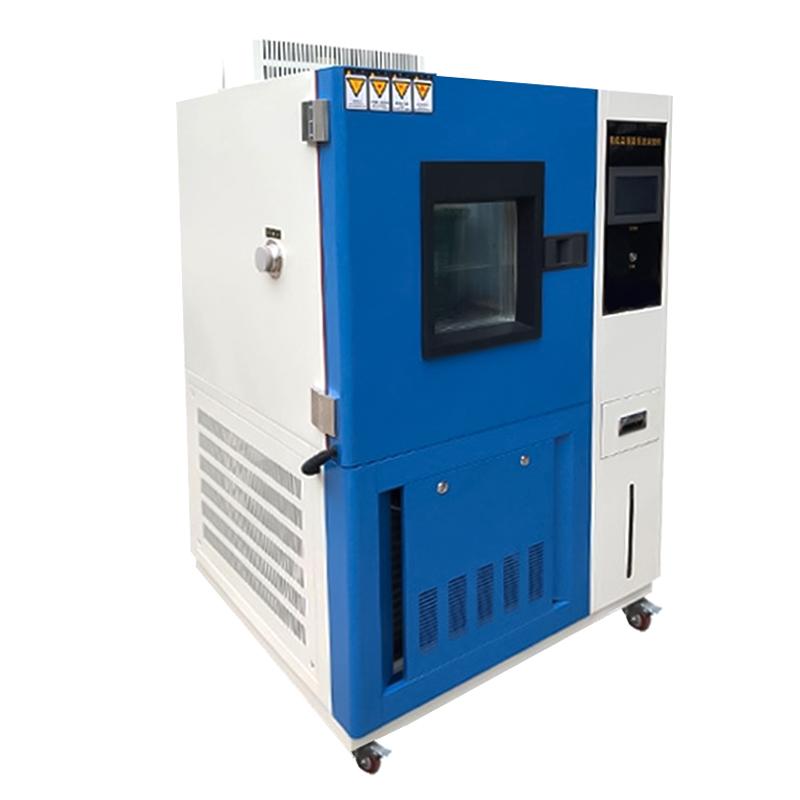

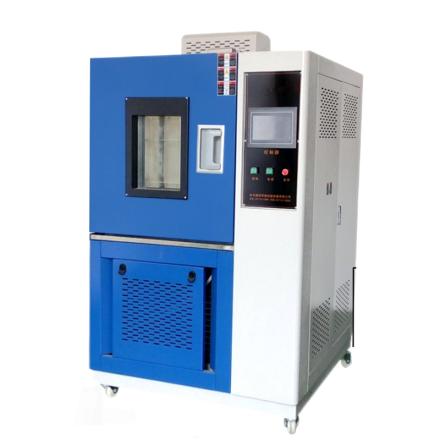

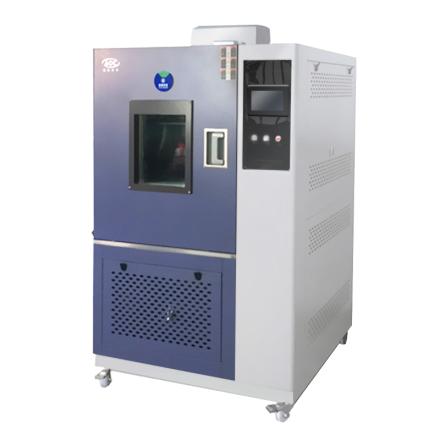

GDJS-225C high and low temperature alternating damping heat test chamber is suitable for aerospace products, information electronic Instruments, materials, electrical, electronic products and various electronic components in high and low temperature or heat and humidity environment inspection of their performance indicators. The equipment adopts advanced structural design and control system to ensure accurate and stable test environment.
Features
1. The box is processed by numerical control machine tool, which is beautiful and easy to operate
2. The liner adopts imported stainless steel mirror plate, and the shell adopts A3 steel plate spray
3. Equipped with a large observation window with lighting to clearly observe the situation in the box
4. The humidification system piping is separated from the control circuit board to improve safety
5. Use ultra-fine fiberglass insulation cotton to avoid energy loss
6. Equipped with a 50mm diameter test hole, convenient for external test lines
7. The temperature and humidity control instrument adopts a 7.0-inch large screen, which is easy to operate
8. With 100 sets of programs and 1000 segments of 999 cycle steps capacity
9. Equipped with RS-232 or RS-485 communication interface
10. Adopt the original French "Taikang" fully enclosed Compressor
11. Multi-wing blower with strong air circulation, uniform temperature and humidity distribution
Principle
The equipment works together through the refrigeration system, heating system, humidification system and dehumidification system to create a precise and controllable high and low temperature and heating and humidity environment in the closed box. The multi-wing blower is used to achieve strong air circulation to ensure the uniform distribution of temperature and humidity in the test area, and the parameters are precisely adjusted through the programmable controller.
Applications
Aerospace Products, Information Electronic Instruments, Materials, Electrical, Electronic Products, Various Electronic Components
Standards
GB/T10592－2008、GB/T10586－2006、GB/T2423.1－2008、GB/T2423.2－2008、GB/T2423.3－2006、GB/T2423.4－2008、GJB150.3A-2009、GJB150.4A-2009
Steps
1. Connect the power supply and ensure that the voltage meets the requirements
2. Set temperature and humidity parameters through 7.0 inch Touchscreen
3. Edit the test program and loop steps
4. Lock the screen to prevent misoperation
5. Start the device and start testing
6. Monitor the test process through the observation window
7. Turn off the device after the test is completed
Notice
• Operating Environment Temperature should be in the range of 5 ℃~ 30 ℃
• Operating Environment Humidity ≤ 85% R.H
• Pay attention to check the water level of the replenishment tank to avoid water shortage
• Regular maintenance of waterway systems and electrical circuits
• Pay attention to the status of safety protection devices during operation
• Use dedicated test holes when connecting external test lines
• Avoid downtime caused by human touch of the controller
