Overview

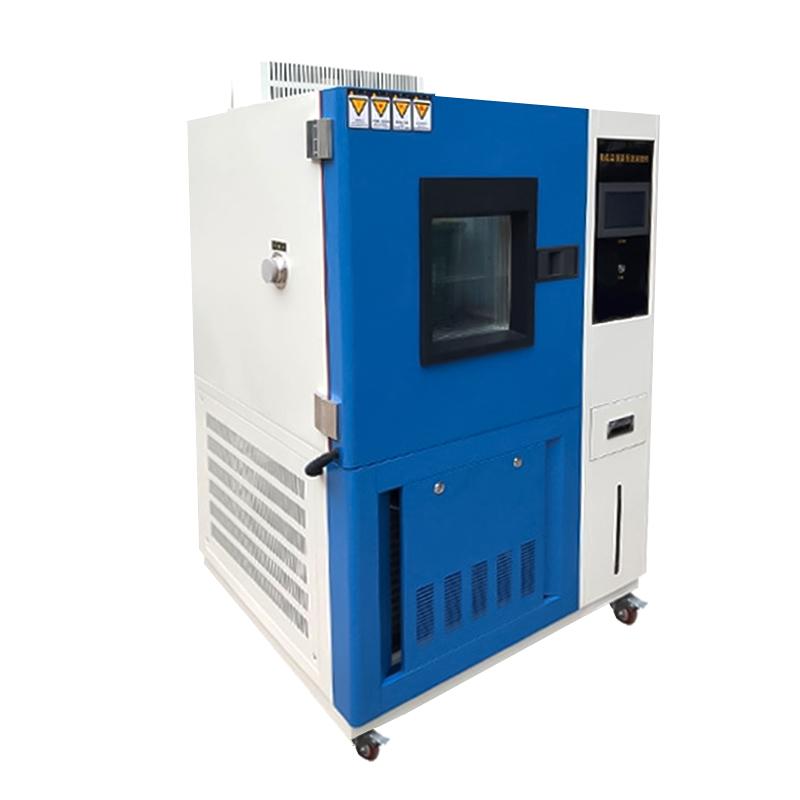

GDJS-800D high and low temperature alternating damping heat test chamber is produced by ZKHS, which is suitable for aerospace products, information electronic Instruments, materials, electrical, electronic products and various electronic element gas parts in high and low temperature or heat and humidity environment inspection of its performance indicators. The equipment adopts advanced structural design and temperature and humidity control system to ensure stable and reliable test environment.
Features
1. The box is processed by numerical control machine tool, which is beautiful and easy to operate
2. The liner adopts imported stainless steel mirror plate, and the shell adopts A3 steel plate spray
3. Large observation window with lighting, clear observation of the situation in the box
4. The humidification system piping is separated from the control circuit board to improve safety
5. The pipeline circuit system of the water system adopts door opening, which is convenient for maintenance and repair
6. The temperature and humidity control instrument adopts a 7.0-inch large screen, which is easy to operate and easy to edit programs
7. With 100 sets of programs and 1000 segments of 999 cycle steps capacity
8. The refrigerator adopts the original French "Taikang" fully enclosed Compressor
9. Multi-wing blower is used for strong air circulation, with uniform temperature and humidity distribution
Principle
The equipment realizes low temperature control through the refrigeration system using the French Taikang fully enclosed Compressor, the heating system adopts the nickel-chromium alloy electric heating heater to achieve heating, and the humidification system adopts the built-in isolated all-stainless steel shallow surface evaporative humidifier to realize humidity control. The multi-wing blower is used to power the air circulation to ensure the uniform distribution of temperature and humidity in the test area, and the temperature and humidity change process is precisely controlled by the programmable controller.
Applications
Aerospace Products, Information Electronic Instruments, Materials, Electrical, Electronic Products, Various Electronic Components
Standards
GB/T10592-2008、GB/T10586-2006、GB/T2423.1-2008、GB/T2423.2-2008、GB/T2423.3-2006、GB/T2423.4-2008、GJB150.3A-2009、GJB150.4A-2009
Steps
1. Connect the power supply and ensure that the voltage meets the requirements
2. Set test program and parameters through 7.0 inch Touchscreen
3. Place the specimen on the test rack
4. Start the device and start testing
5. Monitor the test process through the observation window
6. Remove the sample after the test is completed
Notice
• Operating Environment Temperature should be in the range of 5 ℃~ 30 ℃
• Operating Environment Humidity ≤ 85% R.H
• Regularly check the water replenishment system to ensure sufficient water supply
• Power should be cut off during maintenance
• Avoid opening doors frequently during testing
• Pay attention to the status of the safety protection device of the equipment
