Overview

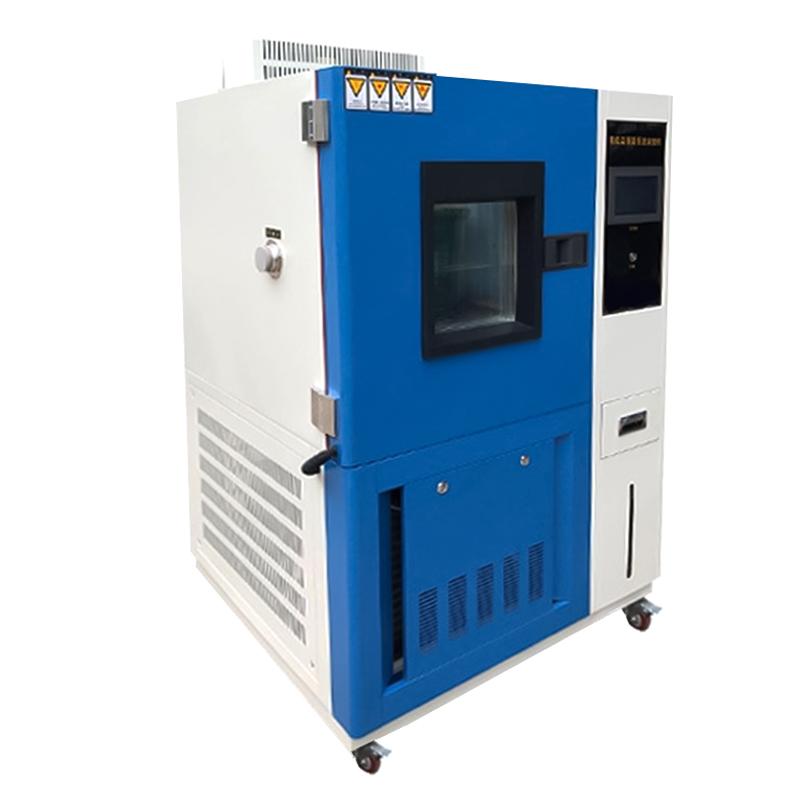

GDS-010B high and low temperature damping heat test chamber is produced by ZKHS, which is suitable for aerospace products, information electronic Instruments, materials, electrical and electronic products and various electronic components in high and low temperature or heat and humidity environment inspection of various performance indicators. The equipment adopts numerical control machine tool processing and molding, beautiful appearance and easy operation.
Features
1. The box is processed by numerical control machine tool, the shape is beautiful and generous, and the non-reaction handle is used
2.The liner adopts imported stainless steel (SUS304) mirror plate, and the shell adopts A3 steel plate spray
3. The replenishment tank is placed in the lower right part of the control box body, and there is automatic protection for water shortage
4. Large observation window with lighting, using heating element embedded tempered Glass
5. The humidification system piping is separated from the control circuit board to improve safety
6. The pipeline circuit system of the water system adopts door opening, which is convenient for maintenance and repair
7. The box body insulation adopts ultra-fine fiberglass insulation cotton
8. The left side of the box is equipped with a 50mm diameter test hole
9. The temperature and humidity control instrument adopts a 7.0-inch large screen screen, which is easy to operate
10. With 100 sets of programs and 1000 segments of 999 cycle steps capacity
11. With RS-232 or RS-485 communication interface
12. With automatic calculation function, accurate and stable temperature and humidity control
13. The refrigerator adopts the original French "Taikang" fully enclosed Compressor
14. Multi-wing blower is used for strong air circulation, with uniform temperature and humidity distribution
Principle
The equipment adopts the original French "Taikang" fully enclosed Compressor through the refrigeration system, and the refrigeration system adopts the unit or binary low temperature circuit system design. The multi-wing blower is used to strongly circulate the air to avoid any dead ends, so that the temperature and humidity in the test area are evenly distributed. The design of the air circuit circulation air outlet and return air meets the test standards. The temperature and humidity stabilize quickly at the moment of opening the door, and the heating, cooling and humidification systems are completely independent.
Applications
Aerospace Products, Information Electronic Instruments, Materials, Electrical and Electronic Products, Various Electronic Components
Standards
GB/T10592－2008、GB/T10586－2006、GB/T2423.1－2008、GB/T2423.2－2008、GB/T2423.3－2006、GB/T2423.4－2008、GJB150.3A-2009、GJB150.4A-2009
Notice
• Operating Environment Temperature should be in the range of 5 ℃~ + 30 ℃
• Operating Environment Humidity ≤ 85% R.H
• Power frequency AC220V +/- 10% 50Hz or AC380V +/- 10% 50Hz three-phase five-wire
• Pay attention to equipment safety protection functions, including leakage, short circuit, over temperature, water shortage, motor overheating, Compressor overvoltage, overload, overcurrent protection
• The humidification system pipeline and the control circuit board are designed separately to avoid failure due to leakage of the humidification pipeline
• The pipeline circuit system of the water system adopts door opening, which is convenient for maintenance and repair
