Overview

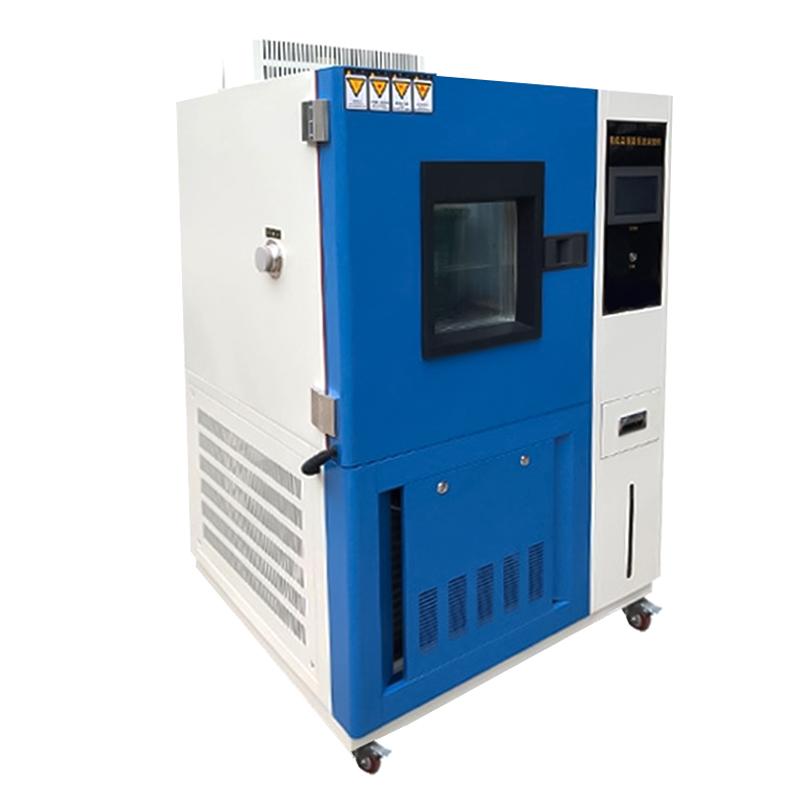

GDS-225C high and low temperature damping heat test chamber is produced by ZKHS, which is suitable for aerospace products, information electronic Instruments, materials, electrical, electronic products and various electronic components in high and low temperature or heat and humidity environment inspection of various performance indicators. The equipment adopts numerical control machine tool processing and molding, beautiful and generous shape, easy to operate.
Features
1. The box is processed by numerical control machine tool, which is beautiful and easy to operate
2.The liner adopts imported stainless steel (SUS304) mirror plate, and the shell adopts A3 steel plate spray
3. The replenishment tank is placed in the lower right part of the control box body, and there is automatic protection for water shortage
4. Large observation window with lighting, embedded tempered Glass, clear observation of the situation in the box
5. The humidification system pipeline is separated from the control circuit board to avoid water leakage failure
6. The pipeline circuit system of the water system adopts door opening, which is convenient for maintenance and repair
7. The box body insulation adopts ultra-fine fiberglass insulation cotton to avoid energy loss
8. The left side of the box is equipped with a 50mm diameter test hole for external test power cord or signal cable
9. The temperature and humidity control instrument adopts a 7.0-inch large screen, and the operation interface in Chinese and English is optional
10. With 100 sets of programs and 1000 segments of 999 cycle steps capacity
11. With screen lock function to avoid human touch shutdown
12. It has an RS-232 or RS-485 communication interface and can be programmed on a computer
13. With automatic calculation function, accurate and stable temperature and humidity control
14. The refrigerator adopts the original French "Taikang" fully enclosed Compressor
15. Multi-wing blower is used for strong air circulation, with uniform temperature and humidity distribution
16. Air duct circulation air outlet and return air design, in line with test standards
Principle
The equipment adopts the original French "Taikang" fully enclosed Compressor through the refrigeration system, and the refrigeration system adopts the unit or binary low temperature circuit system design. The multi-wing blower is used to strongly circulate the air to avoid any dead ends and make the temperature and humidity in the test area evenly distributed. The air circuit circulation air outlet and return air design makes the air pressure and wind speed meet the test standards. The temperature and humidity return time is fast when the door is opened. The heating, cooling and humidification systems are completely independent, which can effectively reduce the test cost.
Applications
Aerospace Products, Information Electronic Instruments, Materials, Electrical, Electronic Products, Various Electronic Components
Standards
GB/T10592－2008、GB/T10586－2006、GB/T2423.1－2008、GB/T2423.2－2008、GB/T2423.3－2006、GB/T2423.4－2008、GJB150.3A-2009、GJB150.4A-2009
Notice
• Operating Environment Temperature should be in the range of 5 ℃~ + 30 ℃
• Operating Environment Humidity ≤ 85% R.H
• Power frequency requirements are AC220V +/- 10% 50Hz or AC380V +/- 10% 50Hz three-phase five-wire system
• The equipment has the functions of leakage, short circuit, over temperature, water shortage, motor overheating, Compressor overvoltage, overload and overcurrent protection, which need to be checked regularly
• The humidification system pipeline is designed separately from the control circuit board, but it is still necessary to pay attention to waterproofing
• The pipeline circuit system of the waterway system adopts door opening, and it needs to be operated according to the regulations during maintenance
