Overview

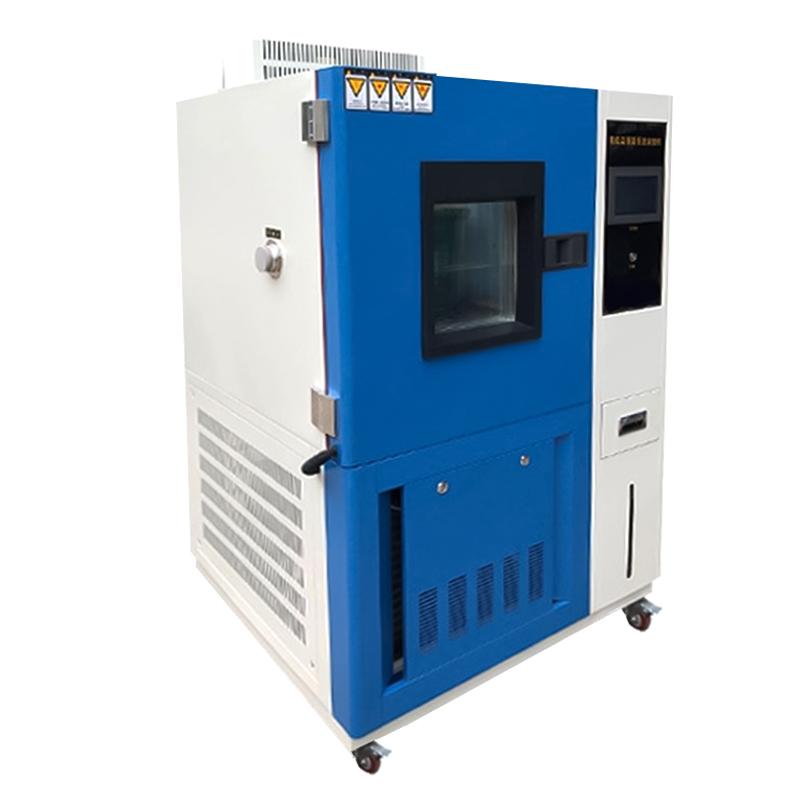

GDS-500C high and low temperature damping heat test chamber is produced by ZKHS, which is suitable for aerospace products, information electronic Instruments, materials, electrical, electronic products and various electronic components in high and low temperature or heat and humidity environment inspection performance indicators. The box body is processed by numerical control machine tool, with beautiful appearance and easy operation.
Features
1. The box is processed by numerical control machine tool, which is beautiful and easy to operate
2. The inner tank of the box is made of imported stainless steel (SUS304) mirror plate, and the shell is sprayed with A3 steel plate
3. The replenishment tank is placed in the lower right part of the control box body, and there is automatic protection for water shortage
4. Large observation window with lighting, using heating element embedded tempered Glass
5. The humidification system piping is separated from the control circuit board to improve safety
6. The piping circuit system of the water system adopts door opening, which is convenient for maintenance and repair
7. The box body insulation adopts ultra-fine fiberglass insulation cotton to avoid energy loss
8. The left side of the box is equipped with a 50mm diameter test hole for external test power cord or signal cable
9. The temperature and humidity control instrument adopts a 7.0-inch large screen screen, which is easy to edit the program
10. The controller operation interface is available in Chinese and English, and the real-time operation Linear dispersion diagram screen display
11. With 100 sets of programs and 1000 segments of 999 cycle step capacity, each time setting MAX Maximum 99 hours 59 minutes
12. After the data and test conditions are entered, the controller has a screen lock function
13. It has an RS-232 or RS-485 communication interface and can be programmed on a computer
14. With automatic calculation function, temperature and humidity control is more accurate and stable
15. The refrigerator adopts the original French "Taikang" fully enclosed Compressor
16. The refrigeration system is designed with a unit or binary cryogenic loop system
17. The multi-wing blower is used for strong air circulation, and the temperature and humidity in the test area are evenly distributed
18. Air duct circulation air outlet and return air design, wind pressure and wind speed meet the test standards
Principle
The test chamber adopts the original French "Taikang" fully enclosed Compressor through the refrigeration system, and the refrigeration system adopts the unit or binary low temperature circuit system design. The multi-wing blower is used to strongly circulate the air to avoid any dead ends and make the temperature and humidity in the test area evenly distributed. The design of the air circuit circulation and air return makes the temperature and humidity stabilize quickly at the moment of opening the door, and the heating, cooling and humidification systems are completely independent to improve efficiency.
Applications
Aerospace Products, Information Electronic Instruments, Materials, Electrical, Electronic Products, Various Electronic Components
Standards
GB/T10592－2008、GB/T10586－2006、GB/T2423.1－2008、GB/T2423.2－2008、GB/T2423.3－2006、GB/T2423.4－2008、GJB150.3A-2009、GJB150.4A-2009
Notice
• Operating Environment Temperature 5 ℃~ + 30 ℃
• Operating Environment Humidity ≤ 85% R.H
• Power frequency AC220V +/- 10% 50Hz or AC380V +/- 10% 50Hz three-phase five-wire
• Pay attention to safety protection functions including leakage, short circuit, over temperature, water shortage, motor overheating, Compressor overvoltage, overload, overcurrent protection
