Overview

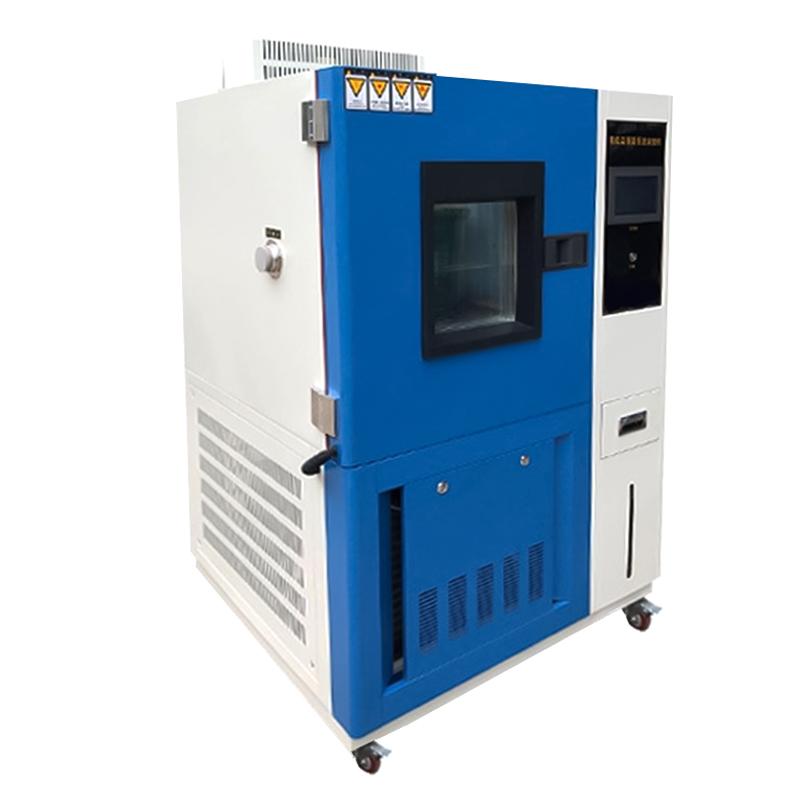

GDS-800C high and low temperature damping heat test chamber is an Environmental performance equipment of ZKHS brand, suitable for aerospace products, information electronic Instruments, materials, electrical, electronic products and various electronic components in high and low temperature or heat and humidity environment inspection of its performance indicators. The equipment adopts advanced control system and refrigeration technology to ensure the accuracy and stability of the test environment.
Features
1. The box is processed by numerical control machine tool, which is beautiful and easy to operate
2. The liner is imported stainless steel mirror plate, and the shell is sprayed with A3 steel plate, which has high cleanliness
3. The replenishment tank has an automatic protection function for water shortage
4. Large observation window with lighting, clear observation of the situation in the box
5. The humidification system piping is separated from the control circuit board to improve safety
6. Waterways and circuit systems are door-opened for easy maintenance and repair
7. The box is made of ultra-fine fiberglass insulation cotton to reduce energy loss
8. The left side of the box is equipped with a 50mm diameter test hole, which is convenient for external test lines
9. The temperature and humidity control instrument adopts a 7.0-inch large screen, which is easy to operate and programmable
10. The controller supports Chinese and English interfaces and has a screen lock function
11. Equipped with RS-232 or RS-485 communication interface, supports computer remote control
12. Automatic calculation function to accurately correct temperature and humidity changes
13. The refrigerator adopts the original French Taikang fully enclosed Compressor
14. Multi-wing blower with strong circulation, uniform temperature and humidity distribution
15. The air circuit circulation design makes the temperature and humidity stabilize quickly, reducing the test cost
Principle
The test chamber precisely sets the temperature and humidity parameters through a programmable controller, and uses the refrigeration system, heating system and humidification system to work independently to realize the simulation of high and low temperature and heating and humidity environment. The refrigeration system adopts a unit or binary low temperature circuit design, the heating system is a nickel-chromium alloy electric heating type, and the humidification system is a built-in isolated stainless steel evaporative humidifier.
Applications
Aerospace Products, Information Electronic Instruments, Materials, Electrical, Electronic Products, Various Electronic Components
Standards
GB/T10592-2008、GB/T10586-2006、GB/T2423.1-2008、GB/T2423.2-2008、GB/T2423.3-2006、GB/T2423.4-2008、GJB150.3A-2009、GJB150.4A-2009
Steps
1. Turn on the power supply and select AC220V or AC380V voltage
2. Set the temperature and humidity program through the 7.0 inch Touchscreen controller
3. Confirm that the water source of the replenishment tank is sufficient to avoid triggering water shortage protection
4. Place the test sample on the test rack and connect it to an external test line (if required).
5. Start equipment and monitor real-time operation Linear dispersion
6. After the test is completed, stop automatically or manually according to the program
Notice
• Operating Environment Temperature should be maintained at 5 ℃~ 30 ℃, humidity ≤ 85% R.H
• Regularly check the replenishment tank to ensure that the automatic protection function is normal
• Avoid human touch of the controller screen to prevent unplanned downtime
• Use the door opening design for waterway and circuit maintenance during maintenance
• Pay attention to the status of safety protection devices, including leakage, overtemperature and other protections
• Test hole sealing in time after use to avoid energy loss
