Overview

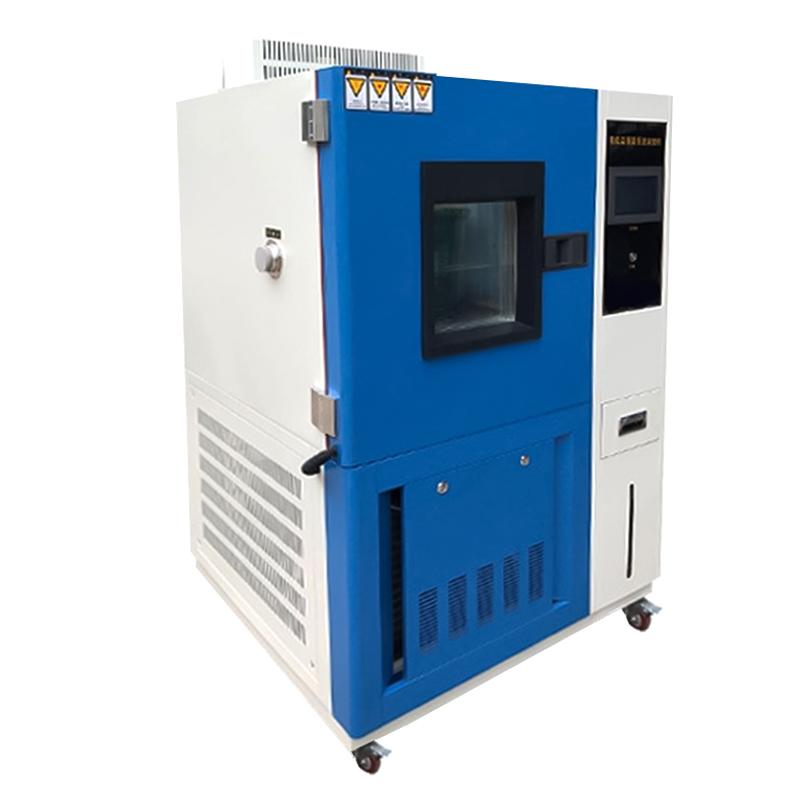

GDS-800D high and low temperature damping heat test chamber is produced by ZKHS, which is suitable for aerospace products, information electronic Instruments, materials, electrical and electronic products and various electronic components in high and low temperature or heat and humidity environment inspection performance indicators. The box body is processed by numerical control machine tool, which is beautiful and easy to operate.
Features
1. The box is processed by numerical control machine tool, which is beautiful and easy to operate
2.The liner adopts imported stainless steel (SUS304) mirror plate, and the shell adopts A3 steel plate spray
3. The replenishment tank has an automatic protection function for water shortage
4. Large observation window with lighting, embedded tempered Glass
5. The humidification system piping is separated from the control circuit board to improve safety
6. The piping circuit system of the water system adopts door opening, which is convenient for maintenance
7. The box body insulation adopts ultra-fine fiberglass insulation cotton
8. The left side of the box is equipped with a 50mm diameter test hole
9. The temperature and humidity control instrument adopts a 7.0-inch large screen, with optional Chinese and English interfaces
10. With 100 sets of programs and 1000 segments of 999 cycle steps capacity
11. The controller has a screen lock function
12. With RS-232 or RS-485 communication interface
13. With automatic calculation function, accurate and stable temperature and humidity control
14. The refrigerator adopts the original French "Taikang" fully enclosed Compressor
15. Multi-wing blower is used for strong air circulation, with uniform temperature and humidity distribution
16. The air circuit circulation design makes the temperature and humidity stabilize quickly
17. The heating, cooling and humidification systems are completely independent
Principle
The test chamber adopts the original French "Taikang" fully enclosed Compressor through the refrigeration system, and the refrigeration system adopts the unit or binary low temperature circuit system design. The multi-wing blower is used to strongly circulate the air to avoid any dead ends and make the temperature and humidity in the test area evenly distributed. The design of the air circulation outlet and return air meets the test standards, which can make the temperature and humidity stabilize quickly at the moment of opening the door.
Applications
Aerospace Products, Information Electronic Instruments, Materials, Electrical, Electronic Products, Various Electronic Components
Standards
GB/T10592－2008、GB/T10586－2006、GB/T2423.1－2008、GB/T2423.2－2008、GB/T2423.3－2006、GB/T2423.4－2008、GJB150.3A-2009、GJB150.4A-2009
Notice
• Operating Environment Temperature 5 ℃~ + 30 ℃
• Operating Environment Humidity ≤ 85% R.H
• Power frequency AC220V +/- 10% 50Hz or AC380V +/- 10% 50Hz three-phase five-wire
• Pay attention to safety protection functions including leakage, short circuit, over temperature, water shortage, motor overheating, Compressor overvoltage, overload, overcurrent protection
