Overview

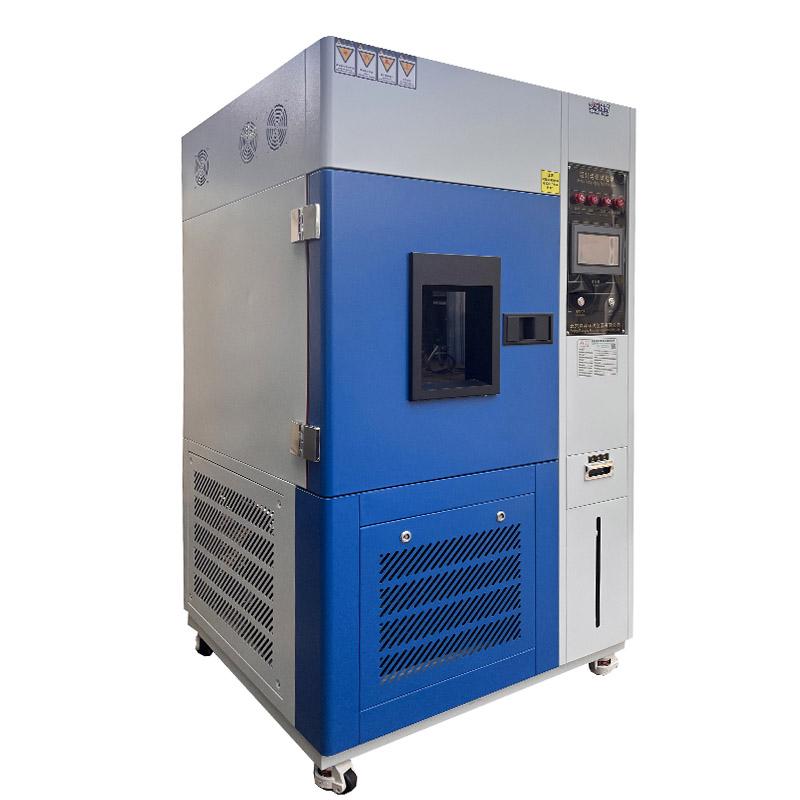

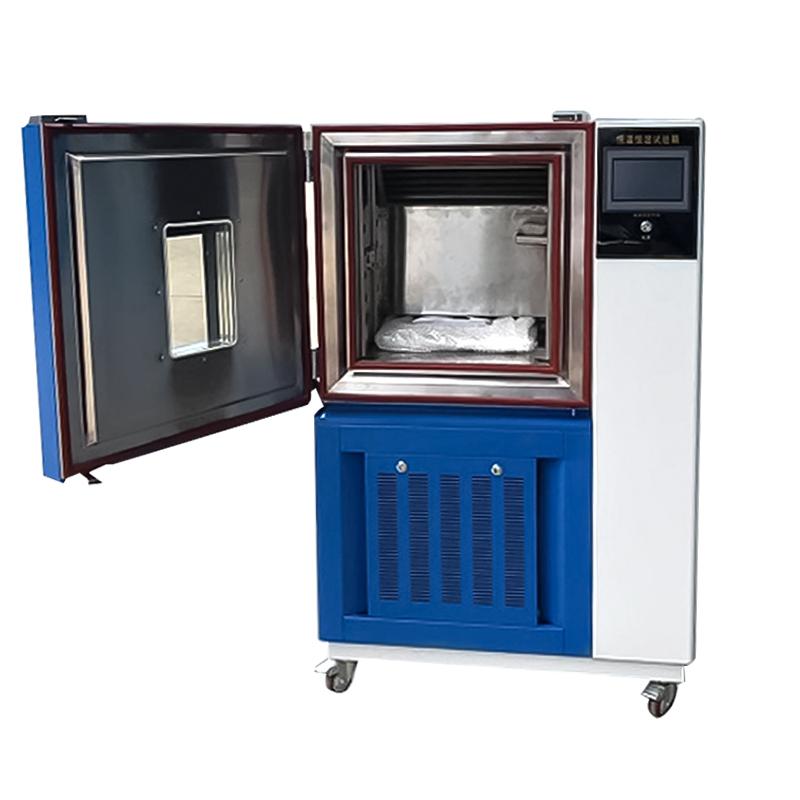

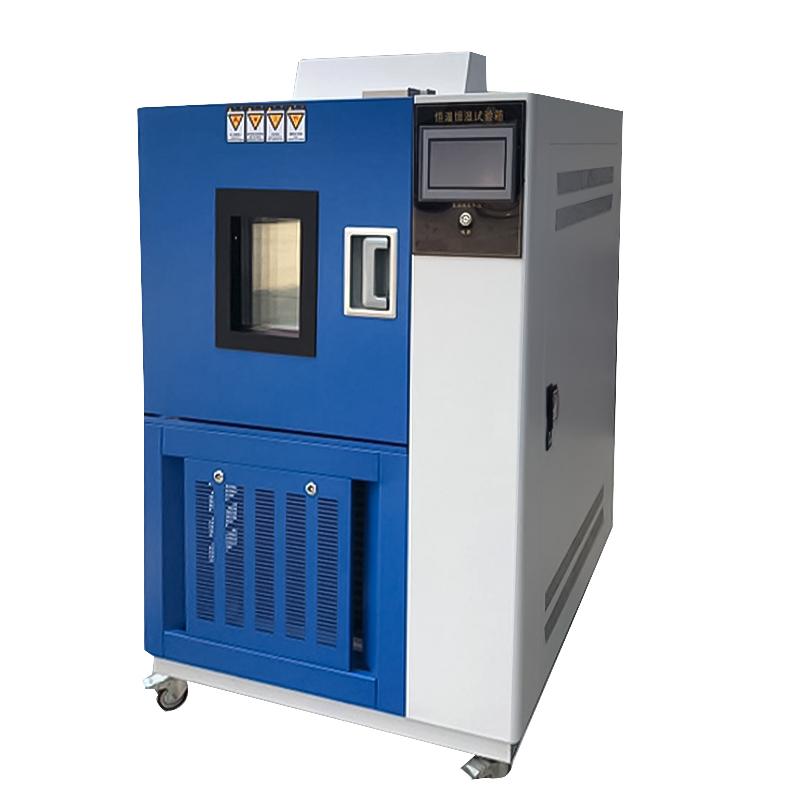

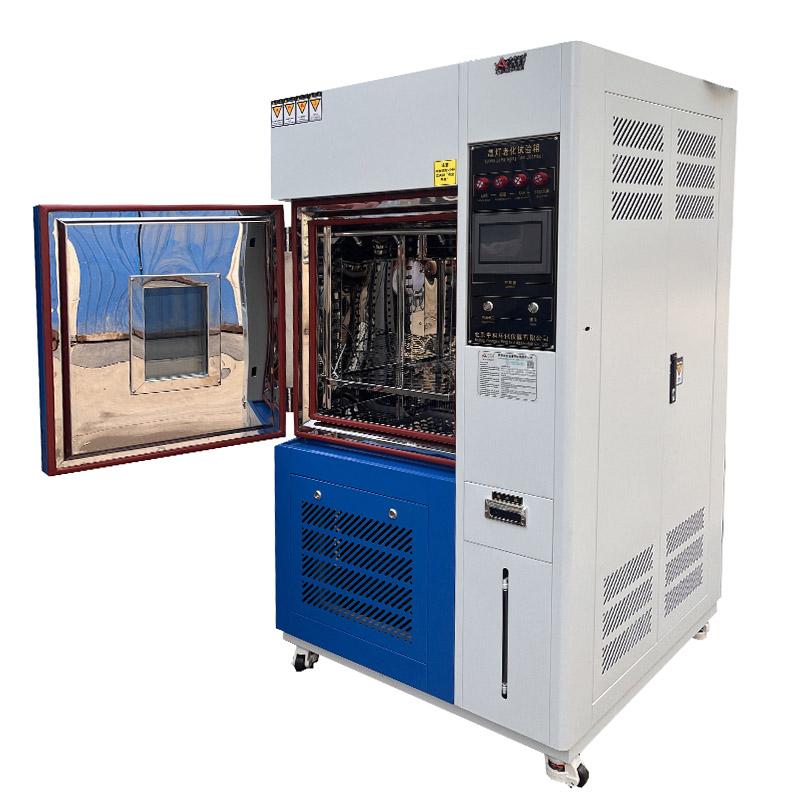

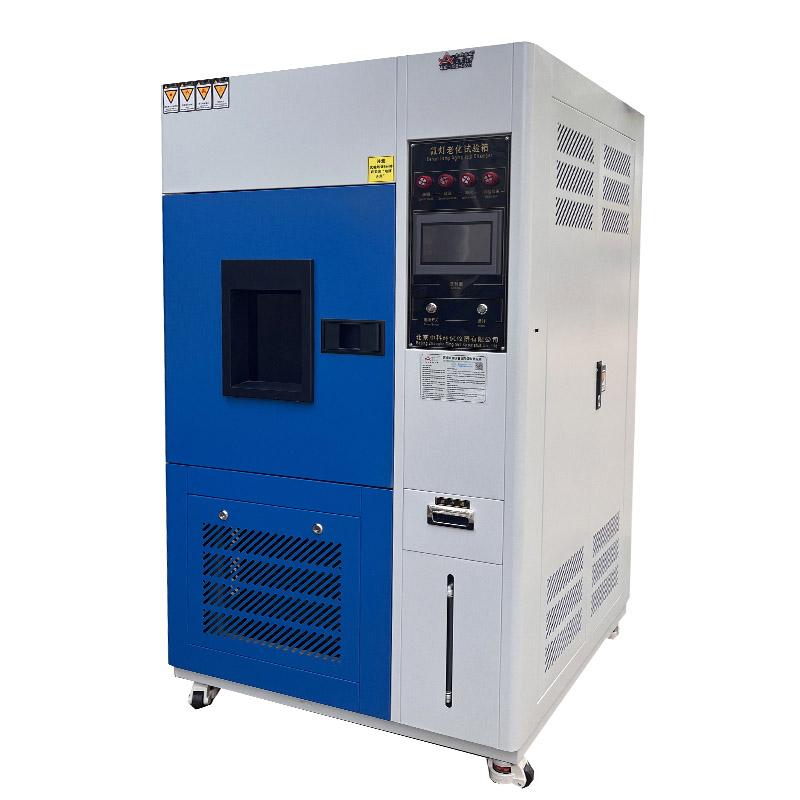

HS-100A Constant Temperature and Humidity Chamber is an Environmental performance equipment of ZKHS brand, suitable for aviation, automotive, home appliances, scientific research and other fields. It is used to test the parameters and performance changes of electrical, electronic and Miscellaneous products under high temperature, low temperature, heat and humidity or constant test environment. The box is processed by numerical control machine tools, which is beautiful and easy to operate.
Features
1. The box body is processed and formed by numerical control machine tool, which is beautiful and easy to operate.

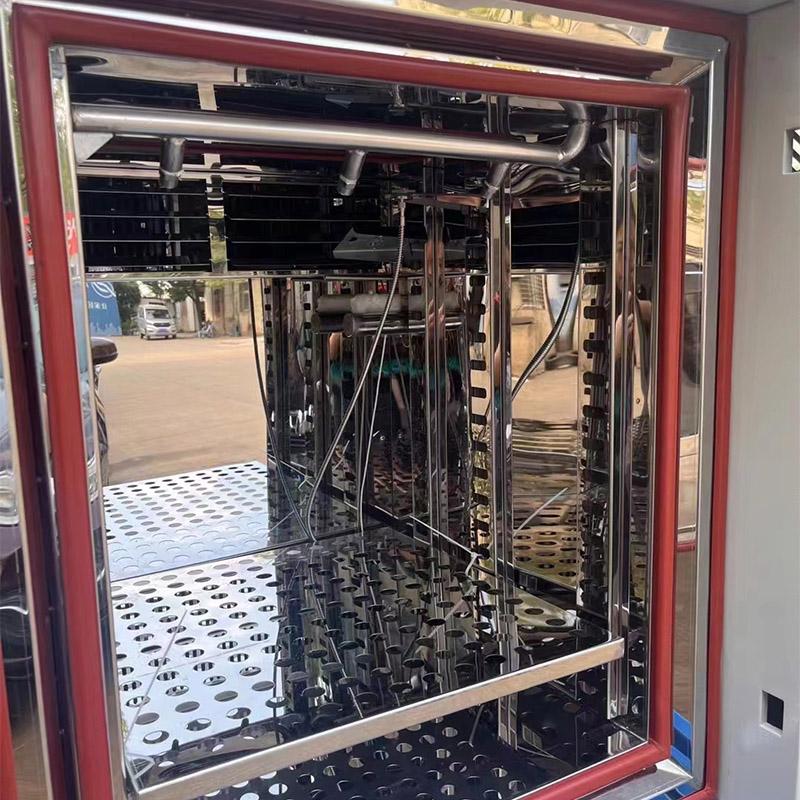

2. The liner is made of imported stainless steel (SUS304) mirror plate argon arc welding, and the shell is sprayed with A3 steel plate.
3. Equipped with a 7.0-inch large screen, it is easy to operate and program edit.
4. Large observation window with lighting, double-decked Glass, clear observation of the situation inside the box.
5. Equipped with an independent temperature limit alarm system, the temperature limit is automatically interrupted to ensure safety.
6. Optional recorder and printer, print setting parameters and temperature and humidity changes Linear dispersion, support 4~ 20mA standard signal.
7. The left side of the box is equipped with a 50mm diameter test hole.
8. The refrigerator adopts the original French "Taikang" fully enclosed Compressor unit.
9. The multi-wing blower is used for strong air circulation, resulting in uniform temperature distribution.
10. The air circulation design meets the test standards, and the temperature stabilizes quickly when the door is opened.
11. The heating and cooling systems are independent, reducing testing costs, increasing lifespan, and reducing failure rates.
Principle
The Constant Temperature and Humidity Chamber achieves temperature control through fully enclosed Air-Cooled compression refrigeration and a multi-wing blower circulation system. The heating system uses a nickel-chromium alloy electric heating heater, the humidification system uses a built-in isolated all-stainless steel shallow surface evaporative humidifier, and the dehumidification system uses an evaporator coil dewpoint temperature laminar contact dehumidification method. The air passage circulation air outlet and return air design ensures uniform temperature distribution and rapid stabilization.
Applications
Aviation, automotive, home appliances, scientific research
Standards
GB/T5170.5-2008、GB/T10586-2006、GB/T2423.1-2008、GB/T2423.3-2006
Steps
Connect the power supply to ensure that the voltage meets the requirements of AC220V +/- 10% 50Hz or AC380V +/- 10% 50Hz three-phase five-wire system.
2. Turn on the device and use the 7.0-inch large screen controller to set the temperature and humidity parameters.
3. Place the test sample on the test rack, which can be led through the test hole.
4. Start the device, monitor the temperature and humidity changes, and ensure that it is within the set range.
5. After the test is completed, turn off the device and disconnect the power.
Notice
• Operating Environment Temperature should be 5 ℃~ 30 ℃, humidity ≤ 85% R.H.
• Power frequency stability to avoid overvoltage or undervoltage.
• Regularly check safety protection devices, such as leakage, short circuit, over temperature, water shortage, motor overheating, Compressor overvoltage, overload, overcurrent protection.
• Pay attention to temperature changes when opening the door to avoid burns.
• The humidified water supply system needs to be kept under automatic control to prevent water shortage.
• Do not block the ventilating port when the equipment is running to ensure the normal operation of the circulatory system.
