Overview

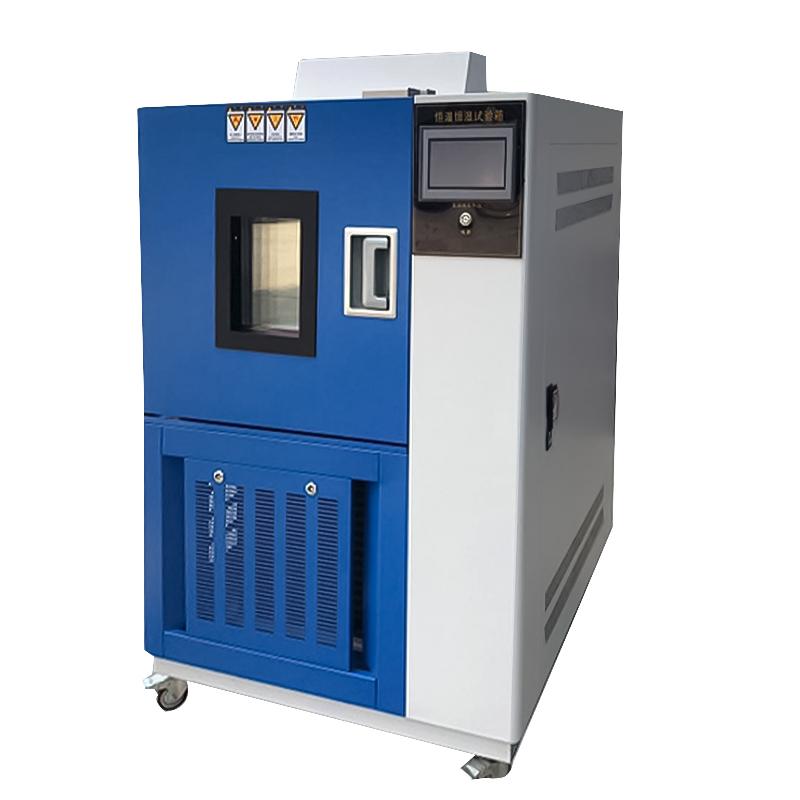

HS-225A Constant Temperature and Humidity Chamber is an Environmental performance equipment of ZKHS brand, which is suitable for aviation, automobile, home appliances, scientific research and other fields. It is used to test the parameters and performance changes of electrical, electronic and other products and materials under high temperature, low temperature, heat and humidity or constant test environment. The box is processed by controlled numerical machine tools, and the shape is beautiful and easy to operate.
Features
1. The box body is processed and formed by numerical control machine tool, which is beautiful and generous in shape, and easy to operate without reaction.

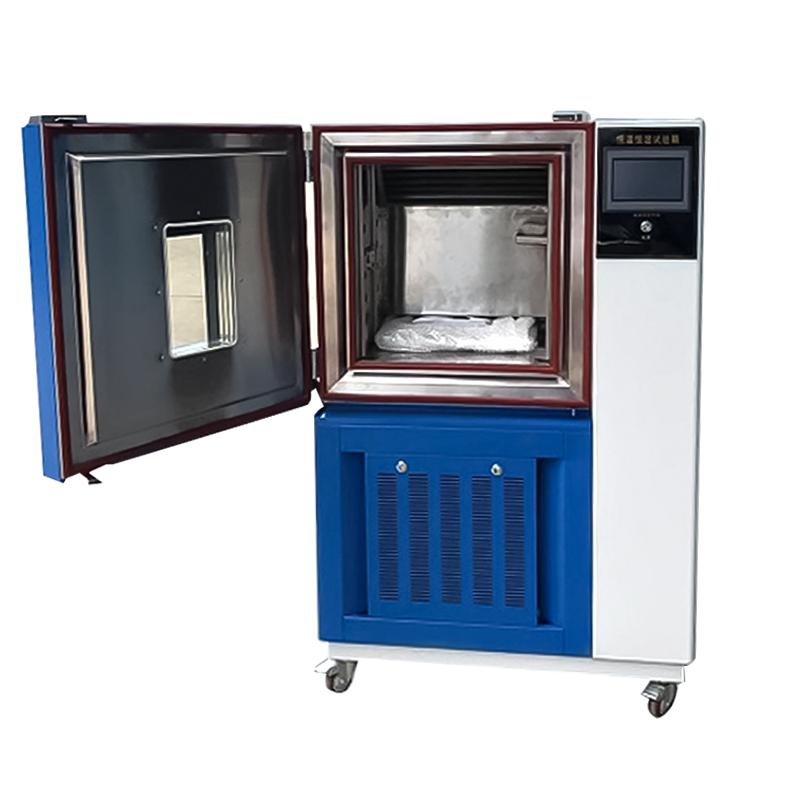

2. The liner is made of imported stainless steel (SUS304) mirror plate argon arc welding, and the shell is sprayed with A3 steel plate.
3. Equipped with a 7.0-inch large screen, it is easy to operate and program edit.
4. Large observation window with lighting, double-decked Glass, clear observation of the situation inside the box.
5. Independent temperature limit alarm system, automatic interruption over temperature to ensure experimental safety.
6. Optional recorder and printer, Linear dispersion of printing parameters and temperature and humidity changes, support 4~ 20mA standard signal.
7. The left side of the box is equipped with a 50mm diameter test hole.
8. The refrigerator adopts the original French "Taikang" fully enclosed Compressor unit.
9. Multi-wing blower with strong air circulation, uniform temperature distribution, no dead ends.
10. The air passage circulates the air outlet and return air design, the wind pressure and wind speed meet the standards, and the temperature stabilizes quickly after opening the door.
11. The heating and cooling systems are independent, effectively reducing testing costs, increasing lifespan, and reducing failure rates.
Principle
The Constant Temperature and Humidity Chamber precisely controls the temperature and humidity environment in the box through an independent heating, cooling, humidification and dehumidification system. The heating system adopts a nickel-chromium alloy electric heater, the refrigeration system adopts a fully enclosed Air-Cooled compression method, the humidification system is a built-in isolated stainless steel evaporative humidifier, and the dehumidification system adopts an evaporator coil dewpoint temperature laminar flow contact method. The circulation system realizes uniform air supply through a temperature-resistant and low-noise motor and a multi-blade centrifugal wind turbine to ensure stable temperature and humidity in the test area.
Applications
Aviation, automotive, home appliances, scientific research
Standards
GB/T5170.5-2008、GB/T10586-2006、GB/T2423.1-2008、GB/T2423.3-2006
Steps
Connect the power supply to ensure that the voltage meets the requirements of AC220V +/- 10% or AC380V +/- 10% three-phase five-wire system.
2. Turn on the device and use the 7.0-inch screen to set the required temperature and humidity parameters and test time.
3. Place the test sample on the test rack and connect external equipment through the test hole if necessary.
4. Start the device, monitor the temperature and humidity changes, and observe the conditions in the box through the window.
5. After the test is completed, the equipment automatically stops, samples are taken out, and data is recorded.
Notice
• Operating Environment Temperature should be between 5 ° C and 30 ° C with humidity not exceeding 85% R.H.
• Power frequency stability to avoid overload or short circuit.
• Regularly check the humidified water supply system to prevent water shortage from causing malfunctions.
• Do not open the door frequently when the equipment is running, so as not to affect the stability of temperature and humidity.
• Pay attention to safety protection functions, such as over-temperature, leakage and other alarms, and deal with abnormalities in a timely manner.
• Cut off the power during maintenance to avoid the risk of electric shock.
