Overview

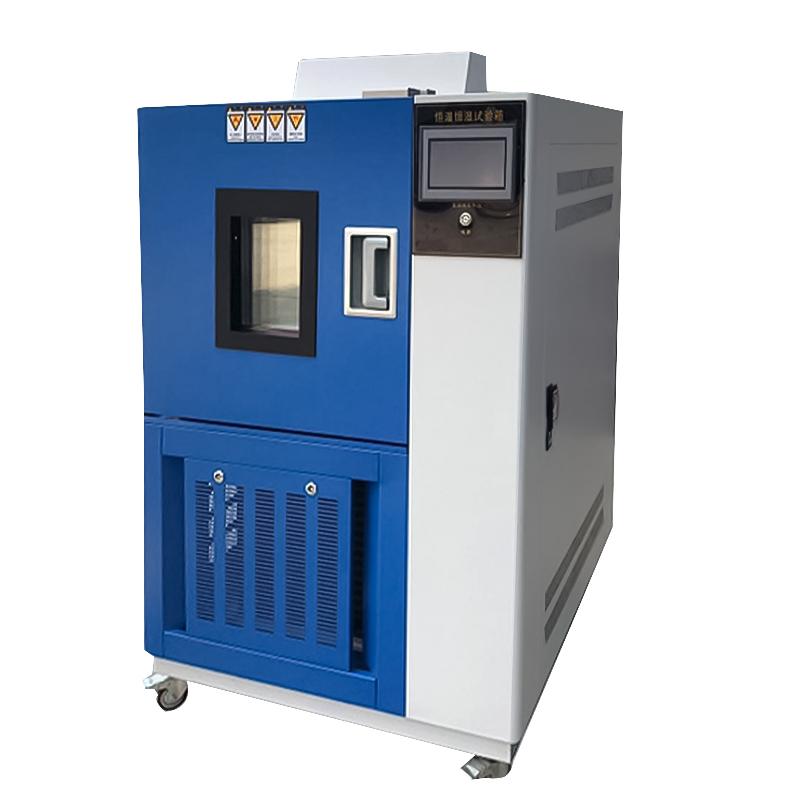

HS-500A Constant Temperature and Humidity Chamber is a ZKHS brand testing equipment, suitable for aviation, automotive, home appliances, scientific research and other fields, used to test electrical, electronic and Miscellaneous products and materials in high temperature, low temperature, heat and humidity or constant test environment parameters and performance changes.
Features
1. The box body is processed and formed by numerical control machine tool, which is beautiful and easy to operate.
2. The inner tank of the box is made of imported stainless steel (SUS304) mirror plate argon arc welding, and the shell is sprayed with A3 steel plate.
3. Equipped with a 7.0-inch large screen, it is easy to operate and program edit.

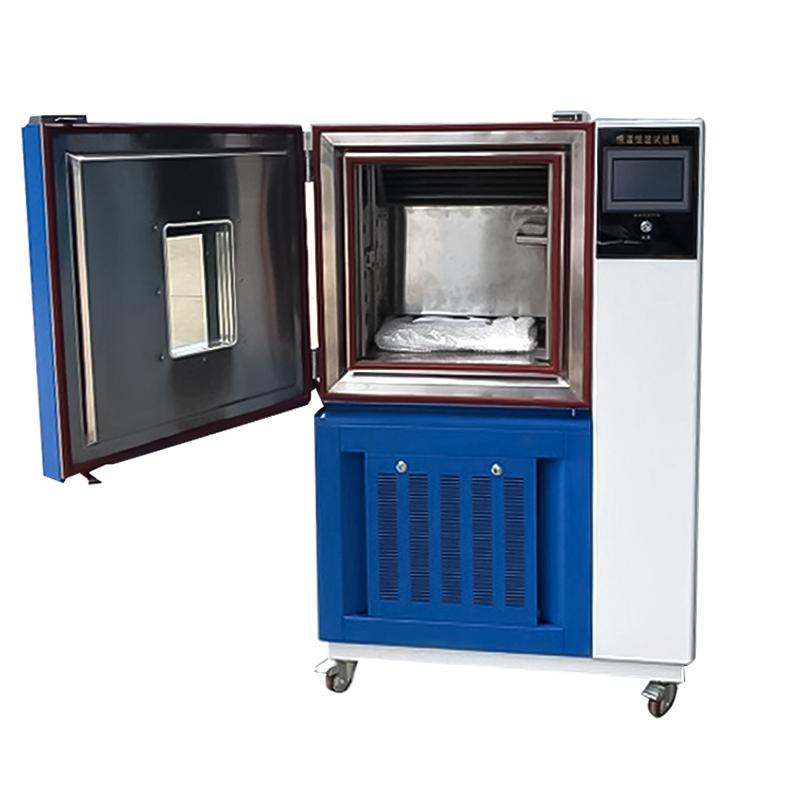

4. Large observation window with lighting, double-decked Glass, clear observation of the situation inside the box.
5. Equipped with an independent temperature limit alarm system, the temperature limit is automatically interrupted to ensure the safety of the experiment.
6. Optional recorder and printer, print setting parameters and temperature and humidity changes Linear dispersion, support 4~ 20mA standard signal.
7. The left side of the box is equipped with a 50mm diameter test hole.
8. The refrigerator adopts the original French "Taikang" fully enclosed Compressor unit.
9. The multi-wing blower has strong air circulation to avoid dead ends and uniform temperature distribution.
10. The air circulation design meets the test standards, and the temperature stabilizes quickly when the door is opened.
11. The heating and cooling systems are fully independent, reducing testing costs, increasing lifespan, and reducing failure rates.
Principle
The Constant Temperature and Humidity Chamber precisely controls the temperature and humidity environment in the box through independent heating, humidification, dehumidification and refrigeration systems, combined with air circuit circulation. The heating system adopts a nickel-chromium alloy electric heater, the humidification system is a built-in isolated all-stainless steel shallow surface evaporative humidifier, the dehumidification system adopts an evaporator coil dewpoint temperature laminar flow contact method, and the refrigeration system adopts a fully enclosed Air-Cooled compression method to ensure stable and uniform temperature and humidity.
Applications
Aviation, automotive, home appliances, scientific research
Standards
GB/T5170.5-2008、GB/T10586-2006、GB/T2423.1-2008、GB/T2423.3-2006
Steps
Connect the power supply to ensure that the voltage meets the requirements of AC220V +/- 10% 50Hz or AC380V +/- 10% 50Hz three-phase five-wire system.
2. Set the required temperature and humidity parameters and test time through the 7.0-inch large screen controller.
3. Place the test sample on the test rack and use the test lead hole to connect external equipment (if required).
4. Start the equipment, and the system automatically executes the heating, cooling, humidification or dehumidification process.
5. By observing the conditions in the box, an optional recorder can be used to record data.
6. After the test is completed, the system automatically stops, the sample is removed, and the power is turned off.
Notice
• Operating Environment Temperature should be between 5 ° C and 30 ° C with humidity not exceeding 85% R.H.
• Power frequency stability to avoid overload or short circuit.
• Regularly check safety protection devices, such as leakage, overtemperature, water shortage, motor overheating, Compressor overpressure, etc.
• The humidified water supply system needs to be kept under automatic control to prevent water shortage.
• Pay attention to temperature changes when opening the door to avoid burns or condensation.
• Cut off the power during maintenance to avoid the risk of electric shock.
• Only used in designated test areas, do not use beyond the scope.
